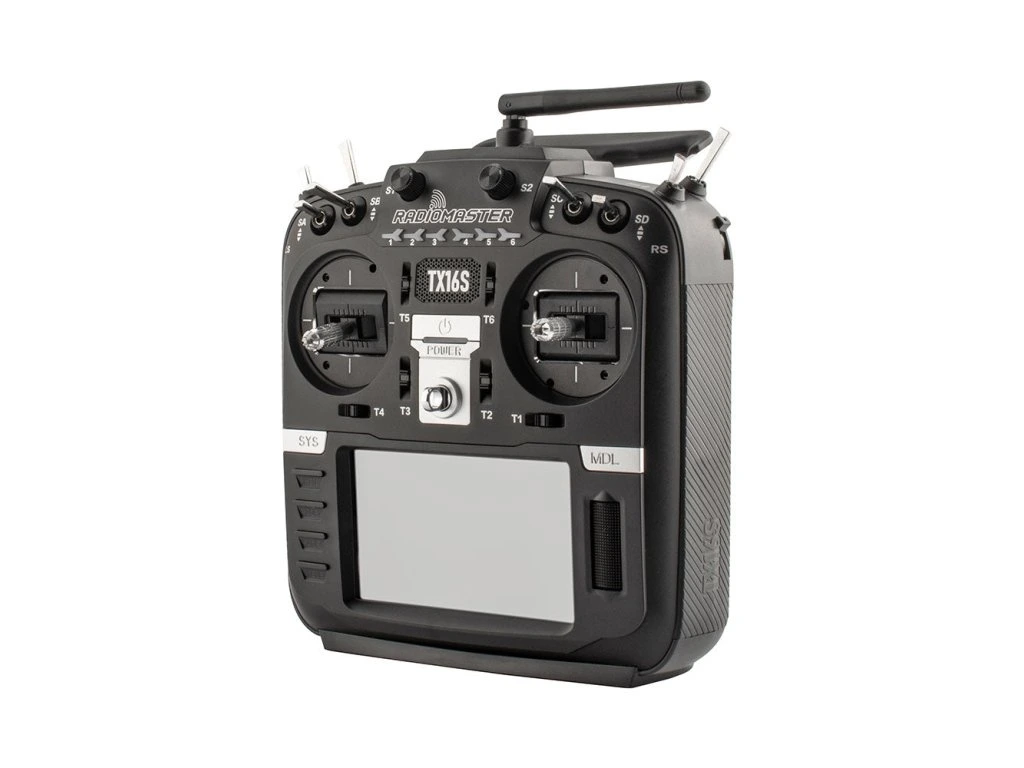

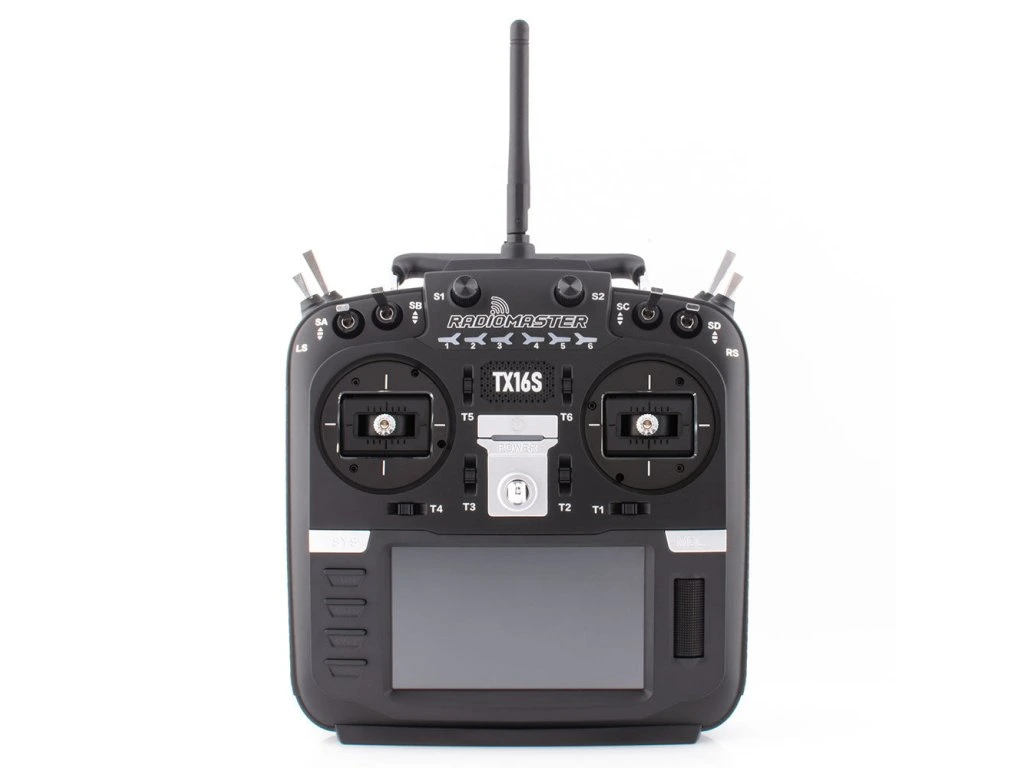

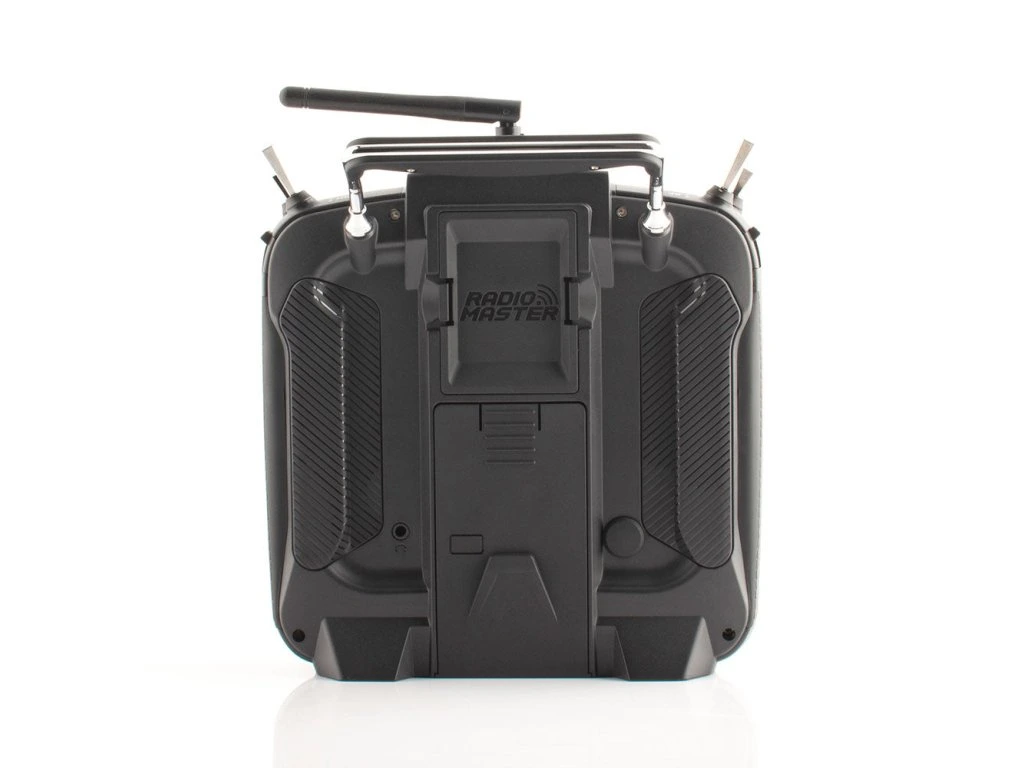

Controller RadioMaster TX16S MKII HALL V4.0 ELRS LBT

The best just got better! Introducing the TX16S Mark II, the ultimate open-source radio.

Item: TX16S Mark II Radio Controller
Version: ELRS
Region: LBT
Gimbal: V4.0 Hall Gimbal
Note: ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

-Improved internal circuitry and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized charge IC now allows up to 2.2A internal USB-C charge current.
-Rear-mounted audio jack provided headphone output.
-V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
-Optional high/low rear grips are included for improved ergonomics.
-Improved S1/S2 knobs with clear center detents.
-Improved LS/RS Sliders with a smoother feel and better center detents.
-Redesigned battery cover for improved battery access.
-Retooled body shell with improved fit and finish.
-Trainer socket changed to standard TRS 3.5mm socket.
-Rear DIY Socket added for personalized mods.
-Improved internal plastics for better longevity.
-Available ELRS and 4in1 versions.

Specification:
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2 dB (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
