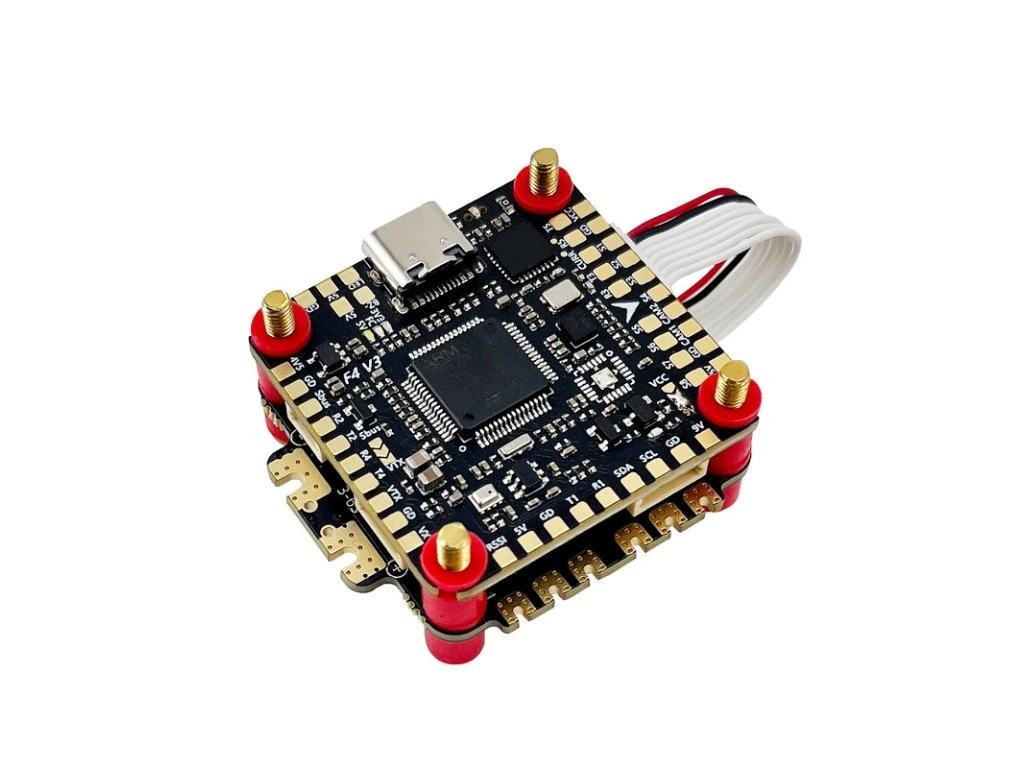

Stack Pilotix F405 V3 ICM42688 60A BLS ESC
CPU: STM32F405RGT6
Baro: BMP280
OSD: Support
BlackBox: 16MB
Motor output: 8-way optional
LED light strip: support
Buzzer: support
Receiver Protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
Universal serial port: 5-way optional
Output power supply: 5V/2.5A 9V/2A
USB Connector: Type-C
DJl/Vista Digital Sky End: support
Camera switching: support
Sbus and VTX jumper switching: support
9V and VCC jumper switching: support
Bluetooth: support
Weight: 9.6g
Size: 36x36 mm
FC Firmware: AOCODARCF405V3/AOCODARCF405V3SD
| Brand | Pilotix |
| Mounting size | 30.5x30.5mm |
| Power supply | 3-6S |
| Continuous current | 60A |
| Processor type | F405 |
| IMU gyroscope | ICM42688 |
