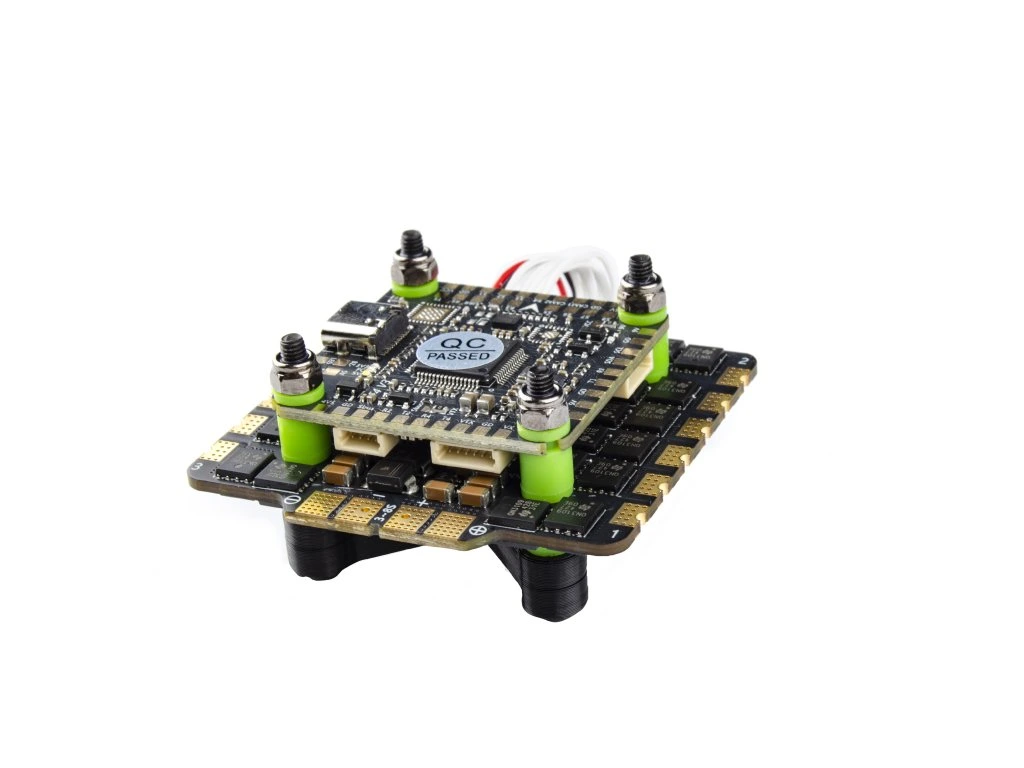

Stack Pilotix F405 V3 3080 80A AM32
- Barometer: SPL06B
- Black Box Storage: 16MB
- Motor Output: 8 Channels
- Universal Serial Ports: 5 Channels
- Output Power Supply: 5V/2.5A, 9V/2A
- OSD: Supported
- Weight: 9.6g
- External Dimensions: 36mm x 36mm
- Firmware: PILOTIX F405V3
- Burst Peak Current: 100A
- Input Signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
- Telemetry: Supported
- Current Meter: Supported
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Operating Temperature: -20°C to +55°C
- Operating Humidity: 20% - 95%
- Storage Temperature: -20°C to +70°C
- Weight: 33g
- Dimensions: 55mm x 52mm
Specifications
| Brand | Pilotix |
| Mounting size | 30.5x30.5mm |
| Power supply | 3-8S |
| Continuous current | 80A |
| Processor type | F405 |
| MCU controller | STM32F405RGT6 |
| IMU gyroscope | ICM42688 |
| USB port type | Type-C |
