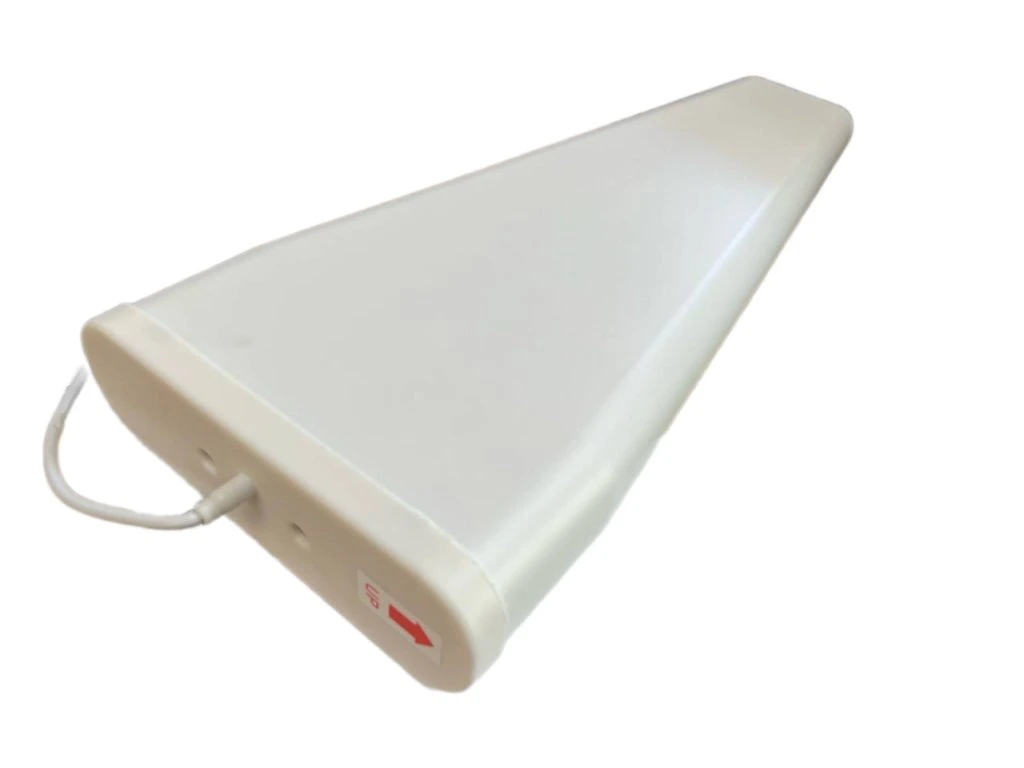

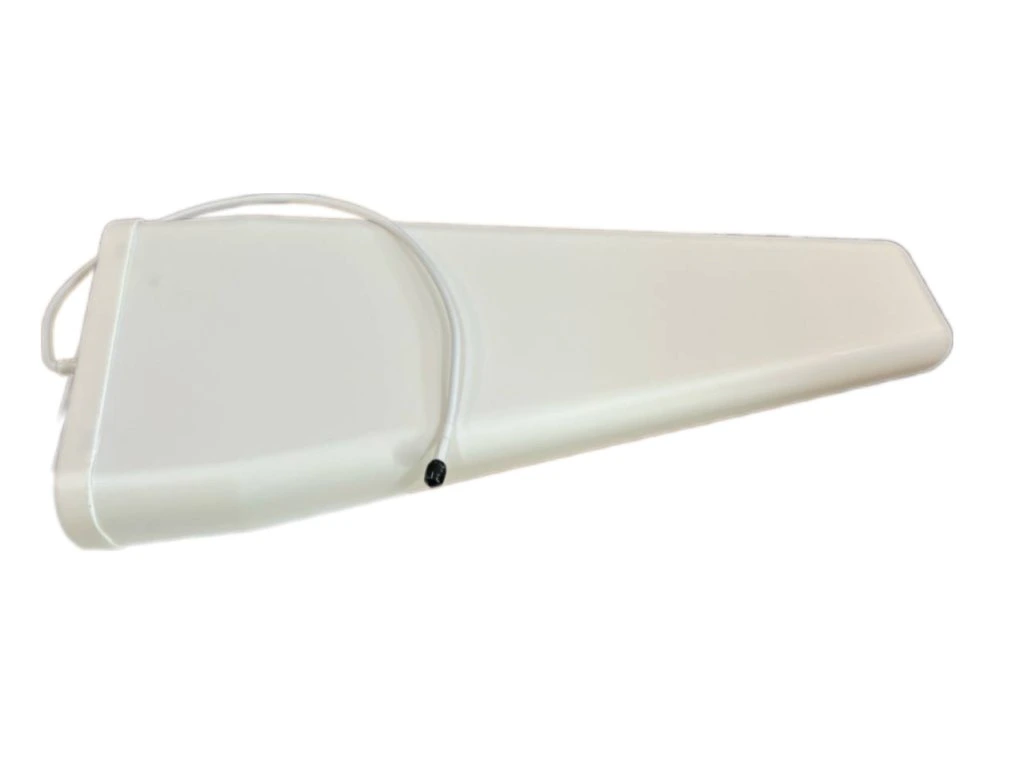

Antenna Maple Wireless Log-Periodic SMA-MALE (700-1020MHz)
Impedance: 50 Ω
VSWR: <1.5
Half Power Beamwidth:
H-plane: 90°
E-plane: 60°
Front-to-Back Ratio: >20 dB
Max Power: 10 W
Electrostatic Protection: Direct grounding
Ambient Temperature Range: -40°C to +60°C
Mechanical Behavior
Antenna Size: 510×210×60 mm
Net Weight: 870 g
Specifications
| Brand | Maple Wireless |
| Frequency | 0.7–1.02 GHz |
| Gain | 9 dBi |
| Connector | SMA |
| Polarization | Vertical |
