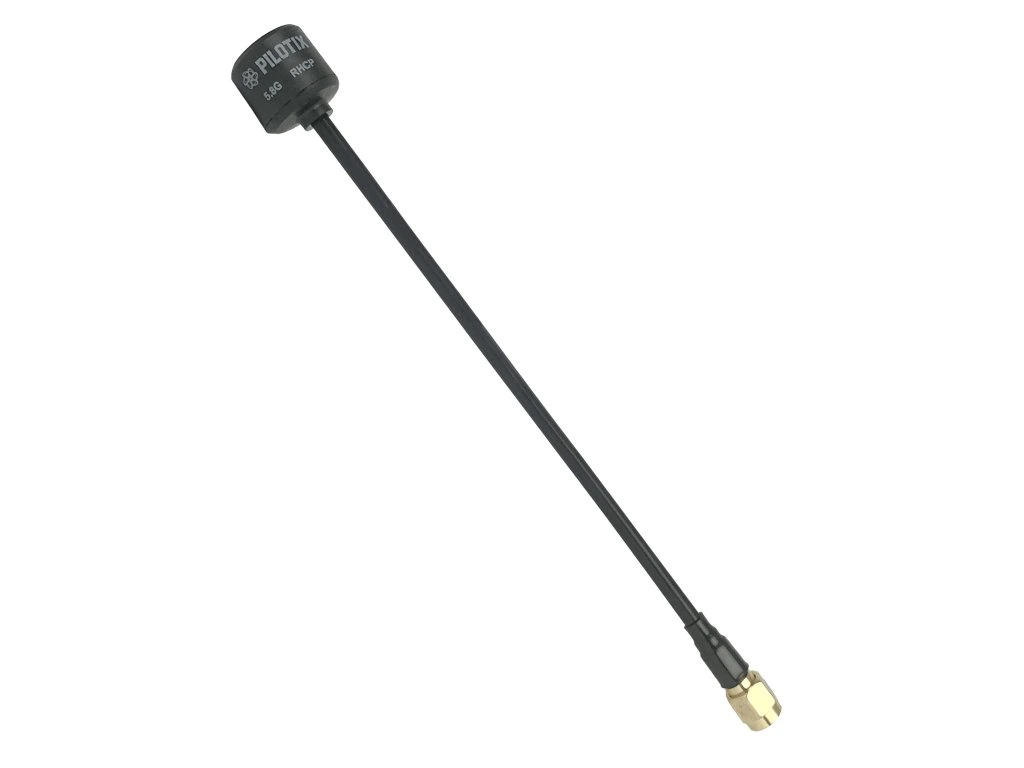

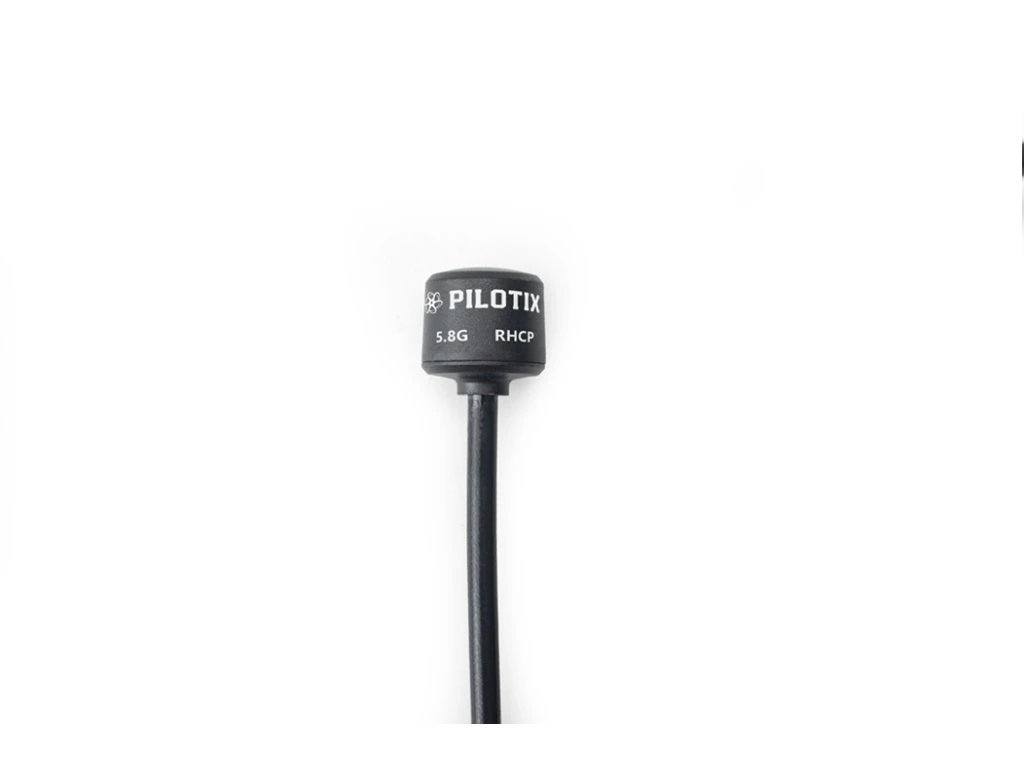

Antenna Pilotix Lollipop 5.8G SMA RHCP 160mm
- Optimized for FPV racing drones.
- Maximum signal coverage. 5.6- 6 GHz bandwidth covers all of the raceband, and all channels have nearly uniform transmission strength.
- Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
- Small and sturdy. Optimized design obtained through massive impact
tests. A flexible tube can withstand angle bends and crash impacts to avoid cable damage.
- Between 5650 and 5950 MHz, VSWR is below 1.2, meaning transmission efficiency is up to 98%. This can also help reduce VTX heat.

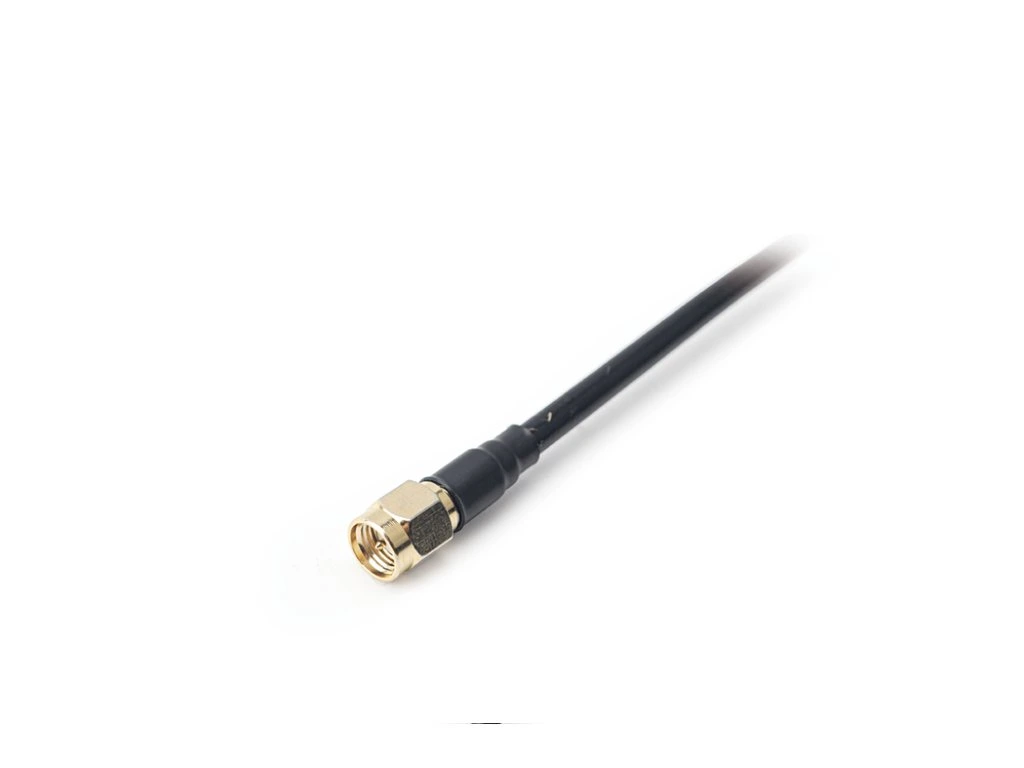

- Quick installation. Antenna clips are designed to the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
- Quality Assurance. Pilotix antennas are tuned for performance by the Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.
Specifications:
Center Frequency: 5.8GHz
Gain: 1.99dBi(AVE)
Band Width: 5600MHz-6000MHz
Polarisation: RHCP
Connector: SMA
Length: 160mm
Specifications
| Brand | Pilotix |
| Frequency | 5.8GHz |
| Gain | 1.99dBi(AVE) |
| Polarization | RHCP |
| Connector | SMA |
| Bandwidth | 5.6–6.0GHz |
| Antenna lenght | 160mm |
