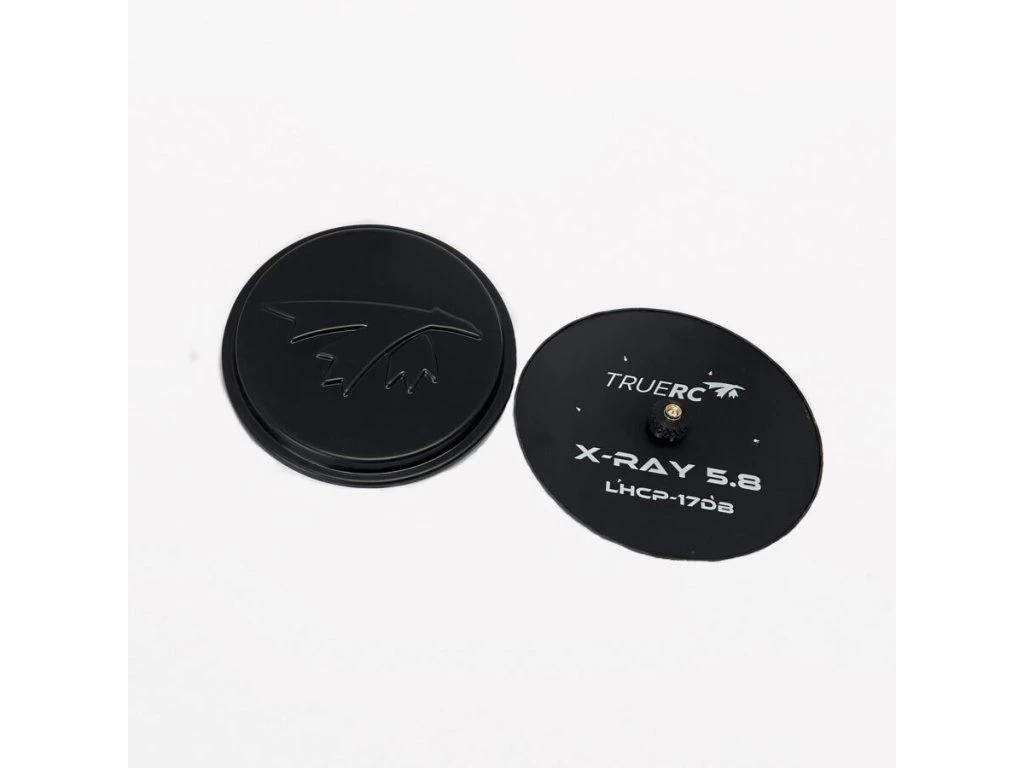

Antenna TrueRC X-RAY (LHCP)
The X-RAY 5.8 is a new development of X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency.
Features:
- Very low side lobes and excellent front to back ratio.
- Excellent axial ratio and efficiency over a large bandwidth
Beam-width*: 60deg
Beam-width @-3dB**: 24deg.
Dimensions: 151mm dia. x 20mm
*Coverage where reception is at least equivalent to an omni
**Coverage where at least 70% of the max range is obtained
Specifications
| Brand | TrueRC |
| Frequency | 5.4-6GHz |
| Gain | 17-18 dBic |
| Polarization | LHCP |
| Connector | SMA |
| Bandwidth | 5.4-6GHz |
| Antenna lenght | 150mm |
