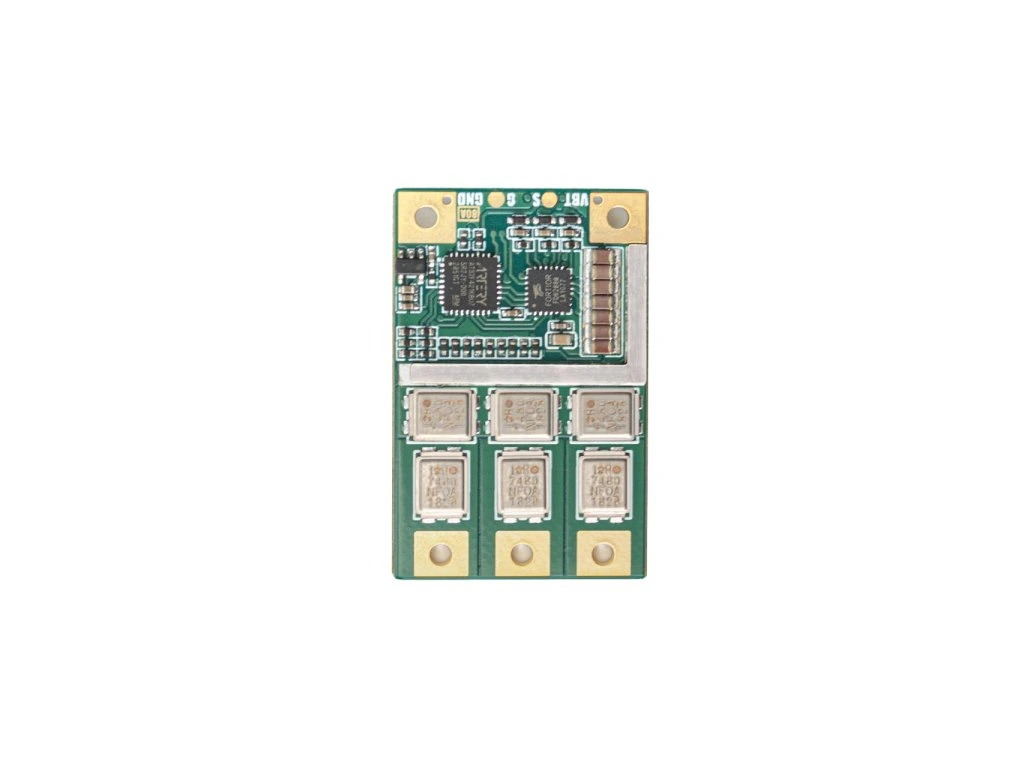

ESC Single Pilotix 32bit АМ32 80A burst 90A
MCU: AT32F421
Kernel: ARM ® Cortex ® - M4
Input voltage: 4-8S(14-33.6V)
Working temperature: -40℃ to 90℃
Burst current: 90A
Continuous power: 1900W
Peak power: 2100W
Current sensor: No
Telemetry: No
Bidirectional Dshot: Support
ESC firmware: HF32
ESC protocol: DShot150/300/600/MultiShot/OneShot etc.(PWM is not supported)
Dimensions: 37x24mm
PCB board: 6 layers 3 OZ copper thickness
Specifications
| Brand | Pilotix |
| ESC type | Single |
| Mounting size | 37x24mm |
| Power supply | 4-8S |
| Continuous current | 80A |
