  2. F405 V3 ICM42688 AM32 75A

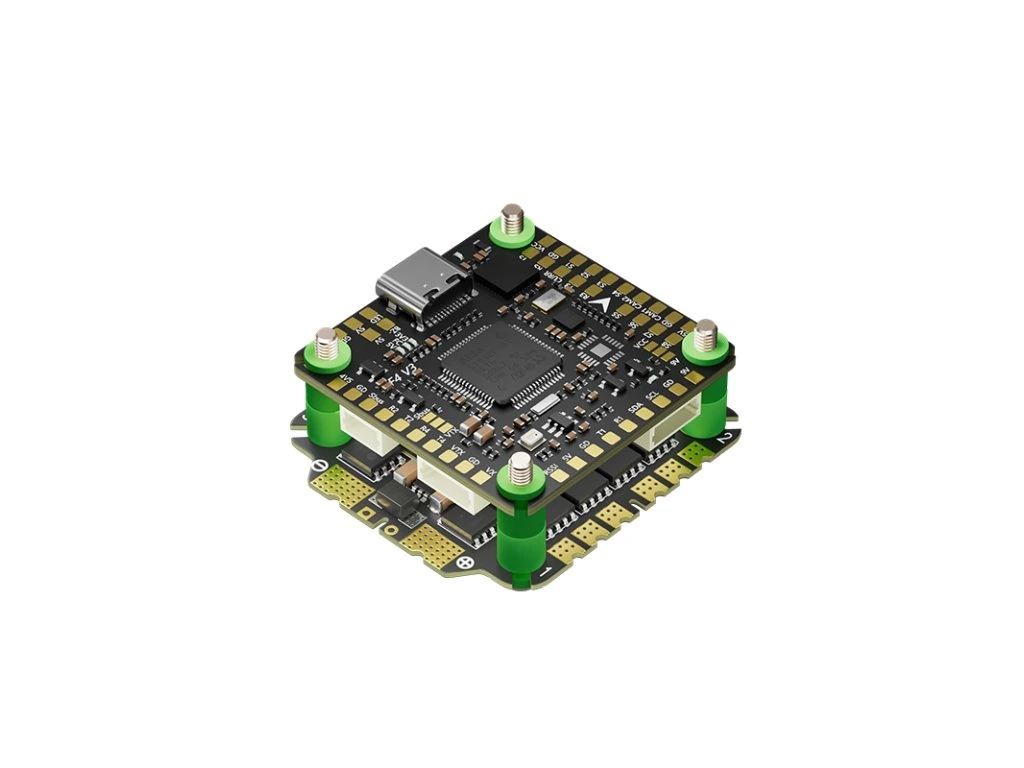

F405 V3 ICM42688 AM32 75A

https://prodroneparts.com/web/image/product.template/242/image_1920?unique=168b760

FC Parameters

Barometer: SPL06-001
OSD: support
Black Box: 16MB
Motor Output: 8ch
LED Strip: support
Buzzer: support
UART: 5ch
BEC Output: 5V/2.5A, 9V/3A
Firmware: PILOT/PILOTIXF405(STM32F405)
Input voltage: DC 12V-25V (3-6S Lipo)
Receiver: ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX
Dimension: 37x37mm
Weight: 9.4g

ESC Parameters

Firmware: AM32_AORC_K_A_F421_2.16.hex
Continuous maximum current: 75Ax4
Telemetry: Supported
ESC Programming: AM32
Current Scaling: 85Ax4
BEC: NO
Input Voltage: DC 9V-40V(3-8S Lipo)
Working Humidity: 20~95%
Dimension: 44.5x40.5mm
Weight: 15.8g
Input Signal: DShot300/600, PWM
Amperage Meter: 158

111.00 € 111.0 EUR 111.00 €

Not Available For Sale

(0.00 € / Units)
  • Brand
  • Mounting size
  • Power supply
  • Continuous current
  • Processor type
  • MCU controller
  • IMU gyroscope
  • USB port type

This combination does not exist.

Contact Us

Terms and Conditions
 14 päevane tagastamisõigus
Tarne: 2-3 tööpäeva

Specifications

Brand Pilotix
Mounting size 30.5x30.5mm
Power supply 3-6S
Continuous current 75A
Processor type F405
MCU controller STM32F405RGT6
IMU gyroscope ICM42688P
USB port type Type-C
