F405 V3 ICM42688 AM32 75A

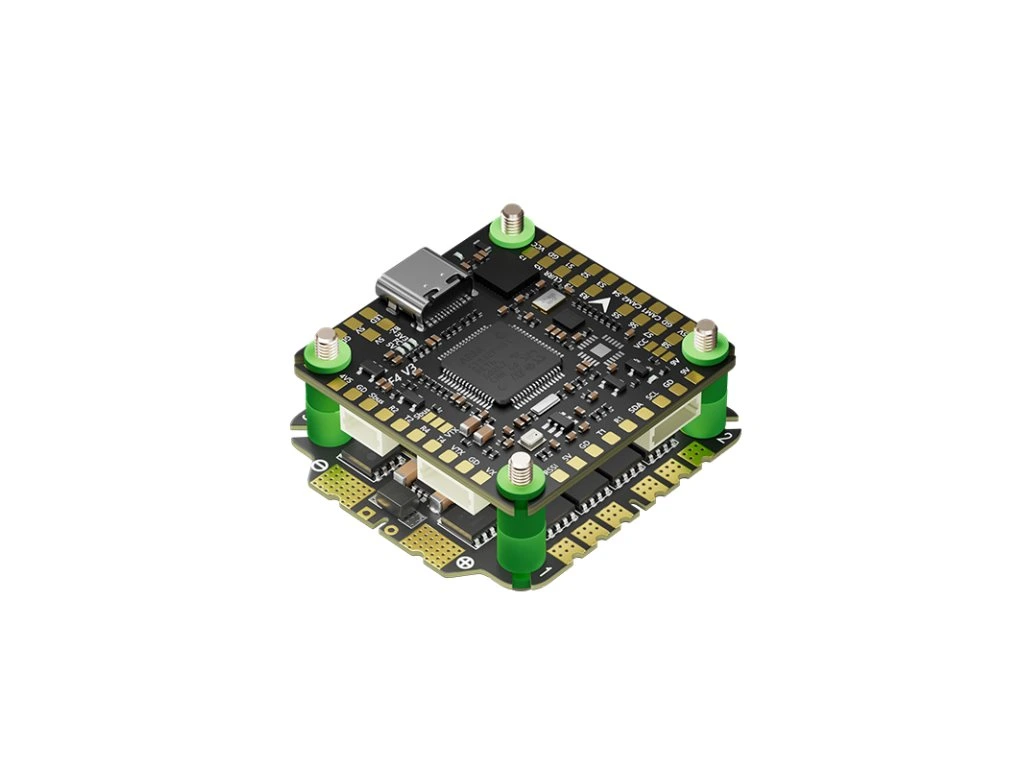

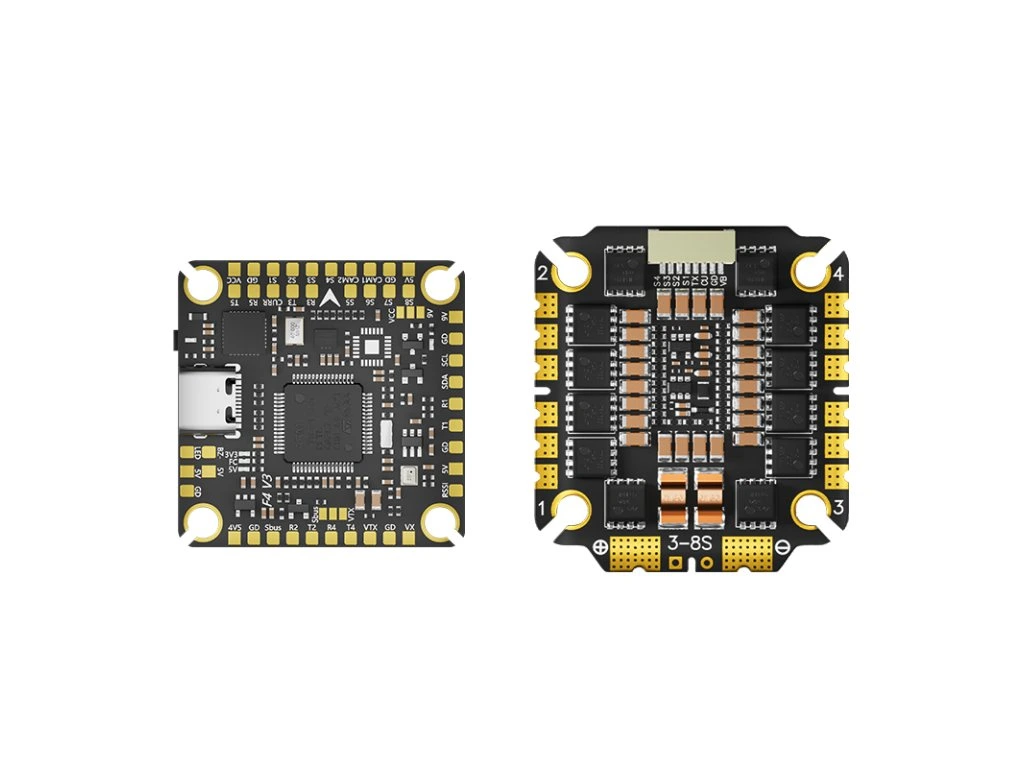

The Stack Pilotix F405 V3 is a high-performance flight control stack designed for demanding FPV pilots. Featuring the STM32F405RET6 processor and ICM42688P gyro, it delivers ultra-precise control and fast response times. The ESC ensures smooth, efficient power delivery, supporting 3-6S LiPo setups for maximum flexibility. With 16MB Black Box storage, built-in barometer, and OSD support, this stack is perfect for both freestyle and cinematic flying. It has standart 30.5mm mounting pattern ensure easy installation in a wide range of frames. The F405 V3 stack by Pilotix provides the stability, power, and reliability you need.

Specifications:

FC Parameters

CPU: STM32F405RET6
Gyro: ICM42688P
Barometer: SPL06-001
OSD: support
Black Box: 16MB
Motor Output: 8ch
LED Strip: support
Buzzer: support
UART: 5ch
BEC Output: 5V/2.5A, 9V/3A
Firmware: PILOT/PILOTIXF405(STM32F405)
Input voltage: DC 12V-25V (3-6S Lipo)
Receiver: ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX

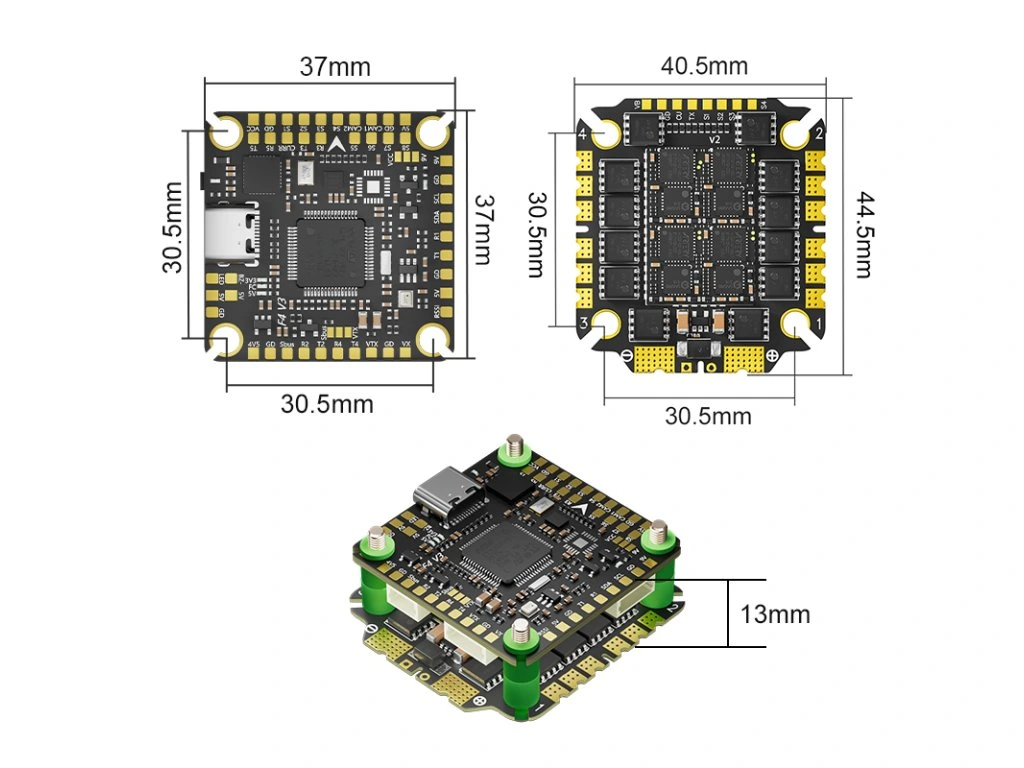

Mounting Hole: M3, 30.5x30.5mm
Dimension: 37x37mm
Weight: 9.4g

ESC Parameters

Firmware: AM32_AORC_K_A_F421_2.16.hex
Continuous maximum current: 75Ax4
Telemetry: Supported
ESC Programming: AM32
Current Scaling: 85Ax4
BEC: NO
Input Voltage: DC 9V-40V(3-8S Lipo)
Working Humidity: 20~95%
Dimension: 44.5x40.5mm
Weight: 15.8g
Input Signal: DShot300/600, PWM
Mounting Hole: M3, 30.5x30.5mm
Amperage Meter: 158
