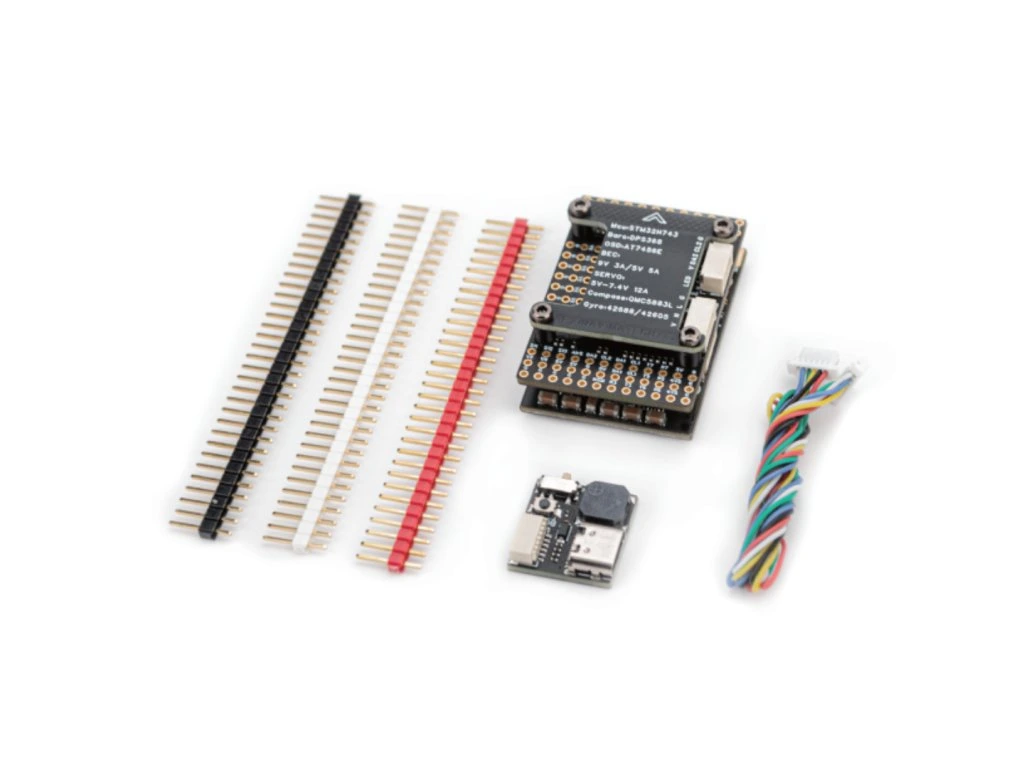

FC Pilotix H743-WING V3 Advanced
MCU: STM32H743VIH6
Gyroscope: ICM-42688-P + ICM-42605 dual
Barometer: DPS368
Compass: QMC5883L
OSD: Analog/HD OSD
7xUARTs, 13xPWMs, 2xI2C, 1xCAN, 4xADC (VLT2, CURR2, ASPD, RSSI),
On-Board 9V BEC
Video switch: On-board Dual CAM Switch PinIO
BLACKBOX: On-board TF card slot, maximum storage 32GB
Input Voltage: 12-28V DC (3-6S LiPo)
BEC: 5V/6.2V/7.4V 12A (servo) & 5V 5A (other equipment) & 9V 3A (VTX and camera)
Firmware: INAV: MATEKH743 Ardupilot: MATEKH743
Dimensions and weight: 30.5mm*44.5mm*7.5mm
Weight: 27g
Specifications
| Brand | Pilotix |
| Mounting size | 30.5x30.5mm |
| Power supply | 3-6S |
| Processor type | H743 |
