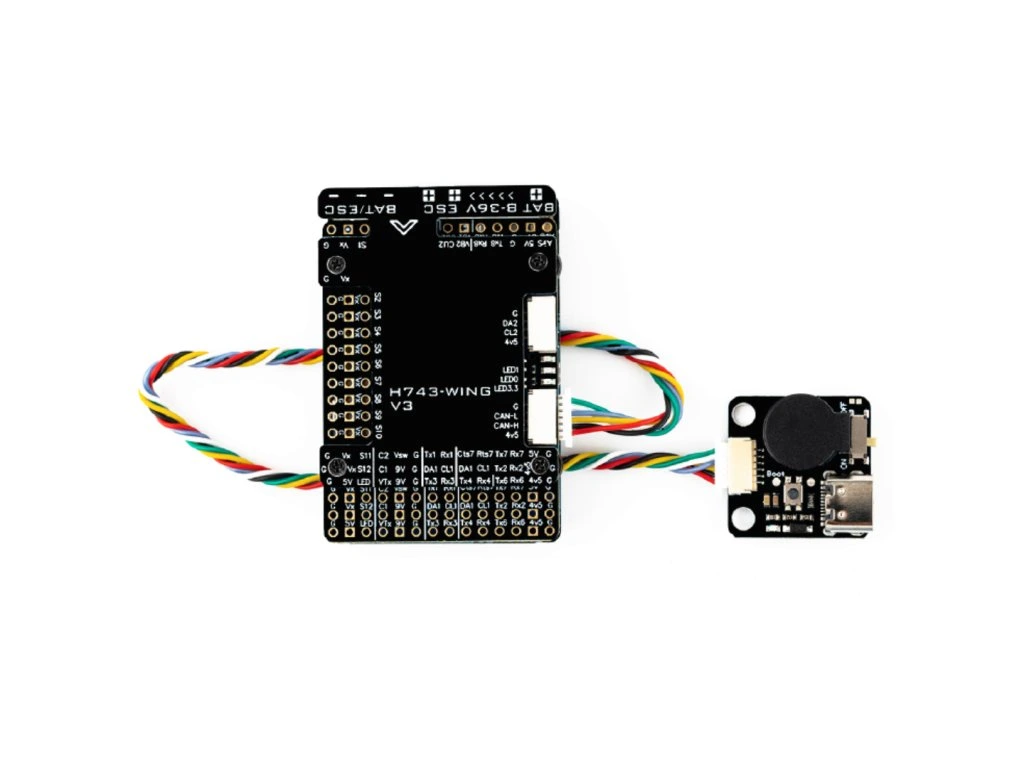

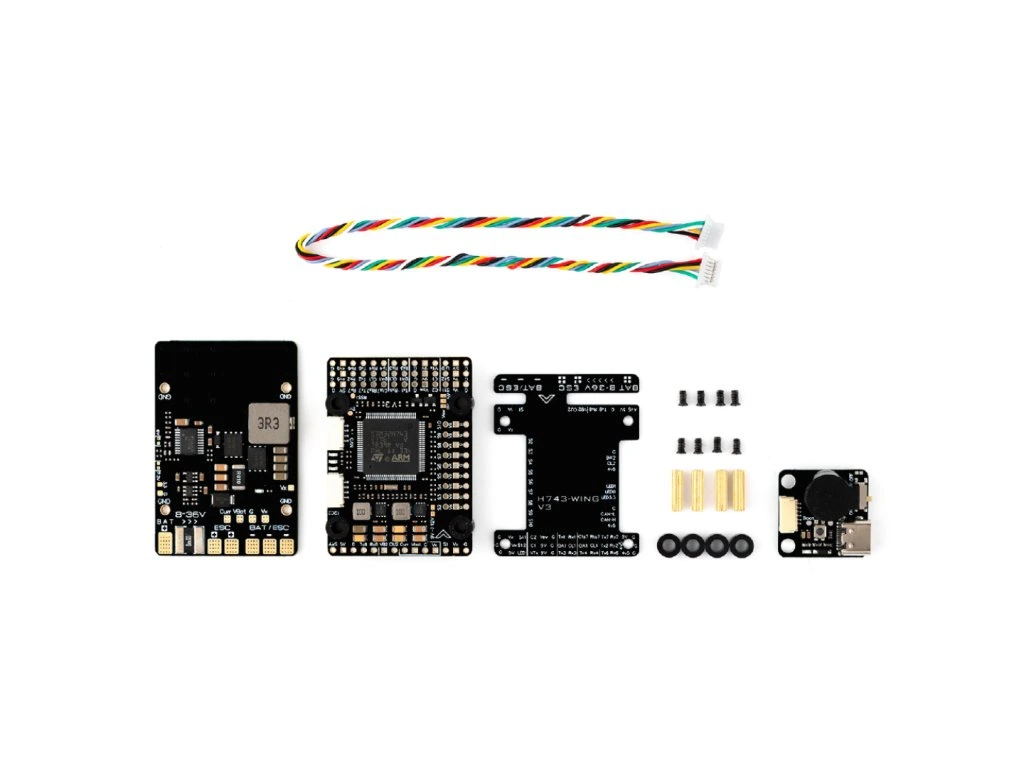

FC Pilotix H743-WING V3 Lite
MCU: STM32H743VIT6, 480 MHz, 1 MB RAM, 2 MB Flash
IMU: MPU6000 (SPI1) & ICM42605 (SPI4)
Barometer: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO)
UARTs: 7 ports (1,2,3,4,6,7,8) with built-in inversion
PWM Outputs: 13 (including “LED” pad)
I2C Ports: 2
CAN Port: 1
ADC: 6 inputs (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
LED Indicators: FC STATUS (Blue, Red), 3.3V indicator (Red)
SPI3 Breakout: 1
USB/Beep Extender: USB Type-C (USB2.0)
Camera Inputs: Dual-camera switching
Power Outputs: 5V/9V(12V) for Camera/VTX power switch
Current Sensor: High-precision, 90A continuous, 220A peak
Battery Voltage Sensor: 1K:10K divider
Power Consumption: 160mA@5V
Dimensions: 54 x 36 x 13 mm
Weight: 30g (with USB extender)
Specifications
| Brand | Pilotix |
| Mounting size | 30.5x30.5mm |
| Power supply | 3-8S |
| Processor type | H743 |
