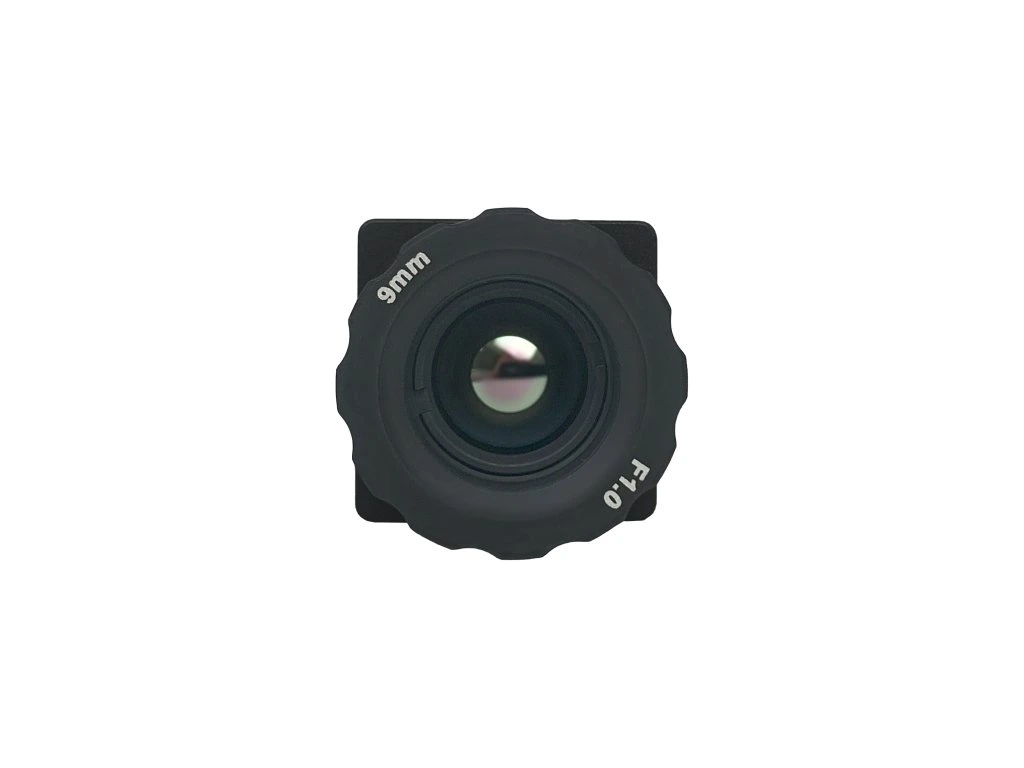

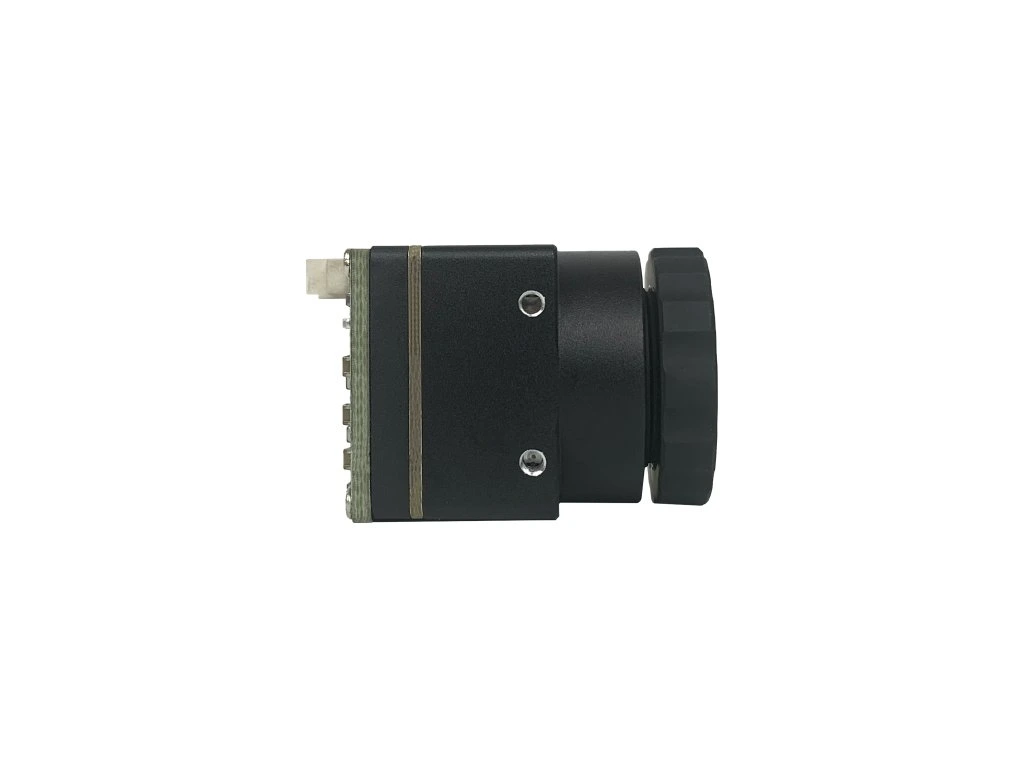

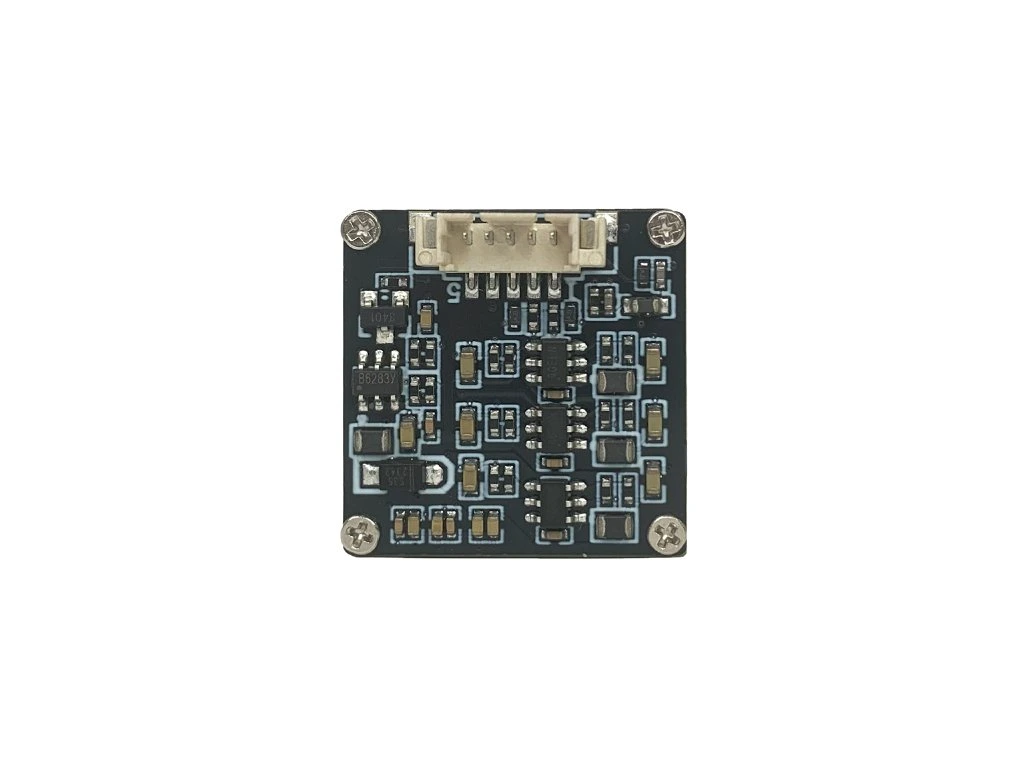

FPV camera Partizan Thermal T640

The Partizan Thermal T640 FPV Camera is a cutting-edge thermal imaging solution specifically designed for drone applications. The camera is equipped with a 9mm lens and operates in a wavelength range of 8 to 14μm ensuring precise heat signature detection. With its resolution of 640×512, it delivers clear and accurate thermal images. The camera's robust design allows it to operate effectively in extreme temperatures, from -40℃ to +80℃, and its lightweight construction (only 20 g) ensures minimal impact on drone flight dynamics.

Technical Specifications:



Sensor Type: Vanadium oxide (VOx) microcalorimeter
Maximum Image Size: 640x512 pixels
Pixel Size: 12μm
Response Wave Band: 8~14 μm
NETD (Noise Equivalent Temperature Difference): ≤40mK (@25°C, F#1.0)
Viewing Angle: 48.3°(H) x 38.6°(V), 62.4°(D)
Lens: 9.1mm
Storage Temperature: -45°C to +75°C
Storage Humidity: <90% RH
Operation Temperature: -40°C to +60°C
Operation Humidity: <90% RH
Weight: 23g
Dimensions: 21mm x 21mm x 34mm
Power Consumption: ≤0.8W
DC Input: 5~12V
Package includes:
1x FPV camera Partizan Thermal T640
