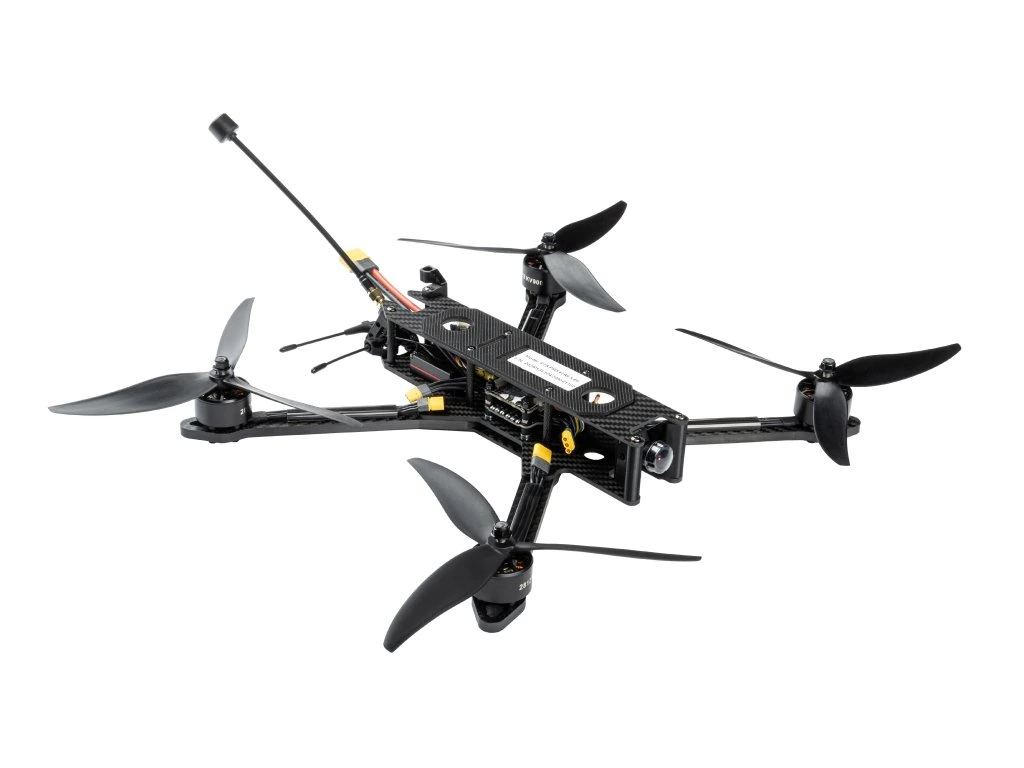

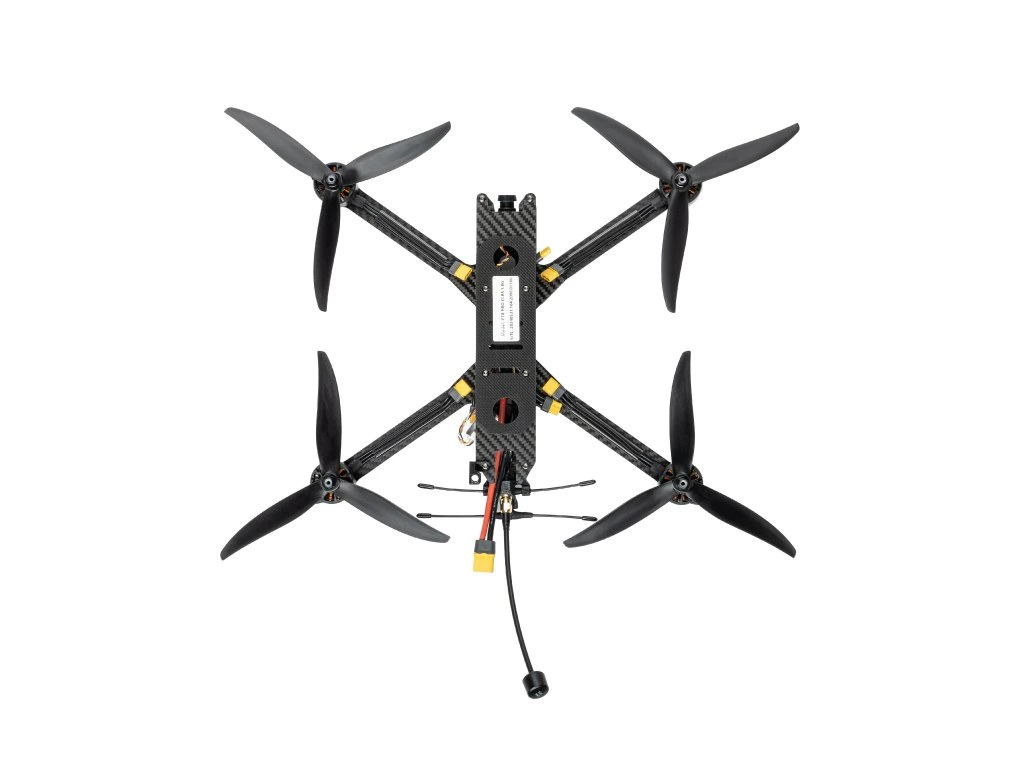

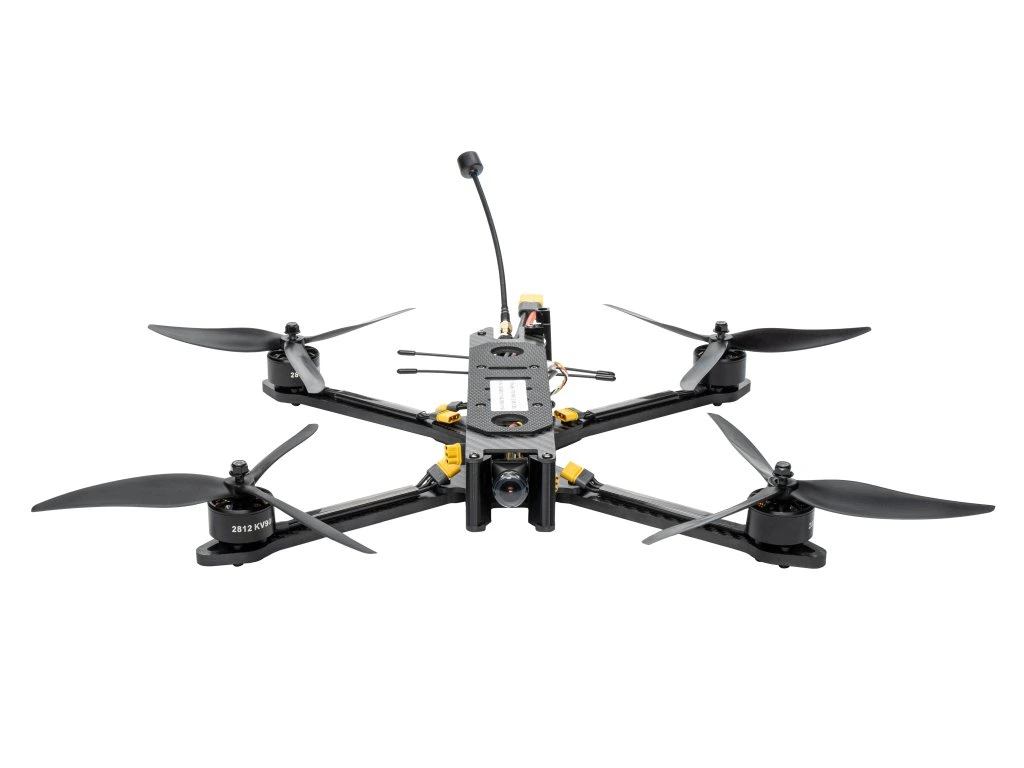

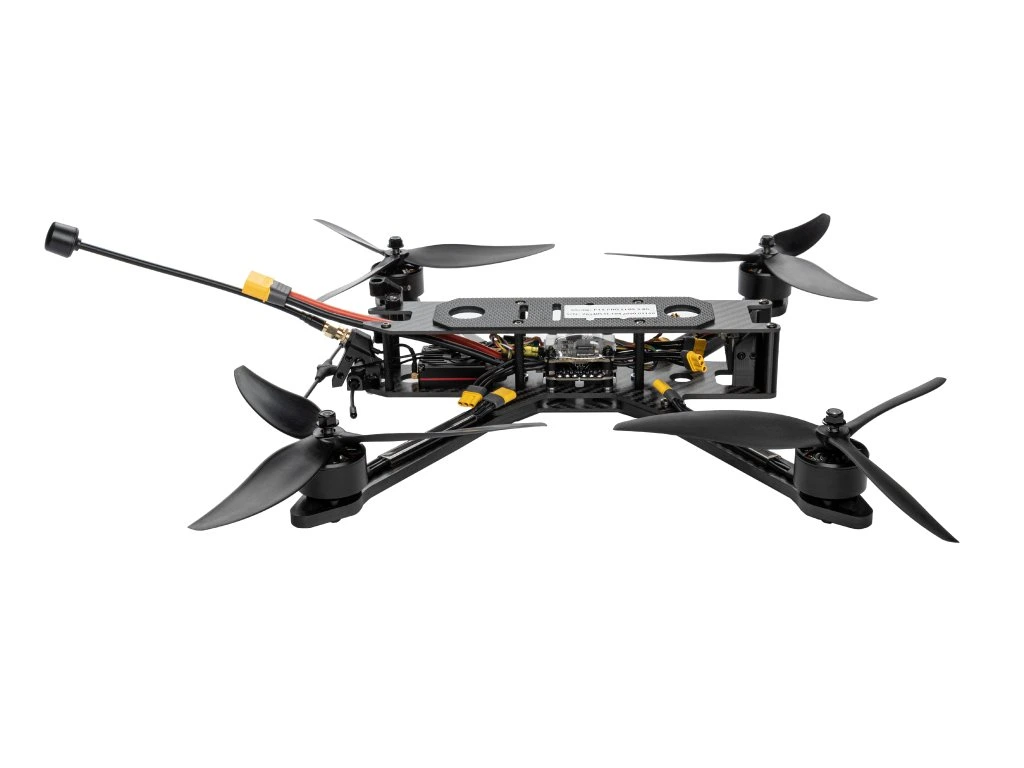

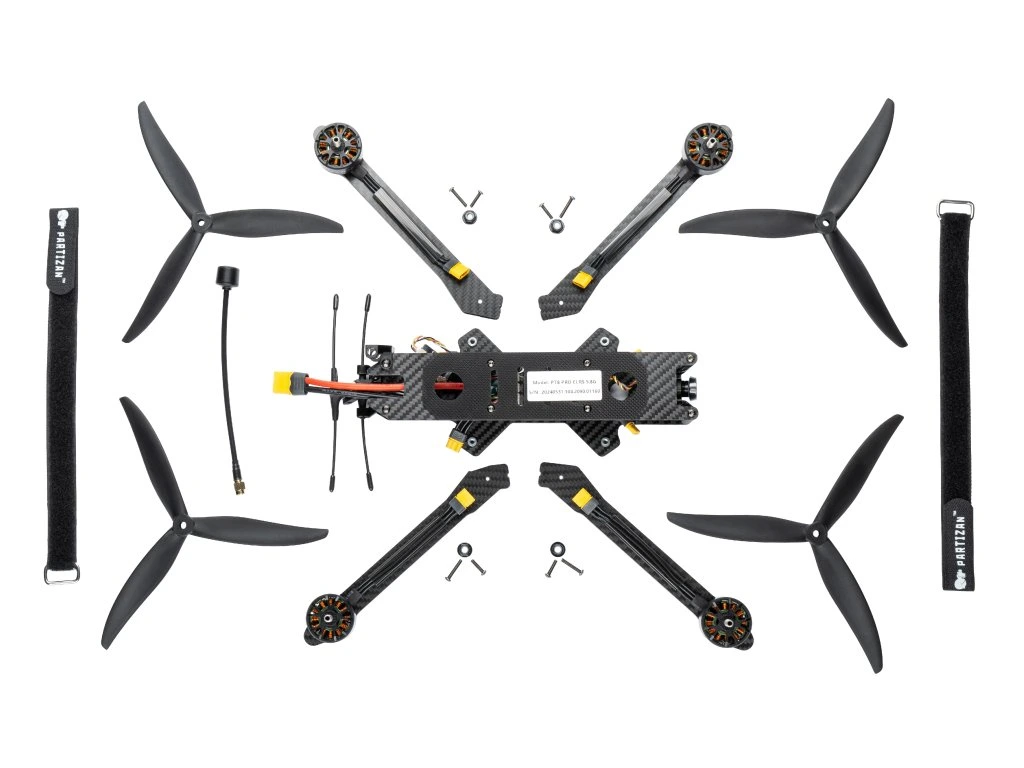

FPV drone Pilotix PT8 ELRS 4.9-5.8G Ratel PRO 2.5W
Frame: Partizan PT8 new version
Dimensions: 317x270x50mm
Weight: 700g
Arm thickness: 6mm
FC: F405 V2 ICM42688P with additional module
Firmware: Betaflight 4.4.3
ESC: 60A (burst 70A)
VTX: 4.9-5.8G 2.5W
VTX antenna: Long 5.8G RHCP SMA
Motor: 2812-900KV/1300KV
Propeller: GEMFAN 8060-3
Camera: Caddx Ratel Pro
Gimbal System: none
Receiver: ELRS 915Mhz Diversity Rx Cyclone
GPS: none
Recommended Battery: 6S 8000Mah Lipo
Flight time with 8000mah battery:
- 35 minutes (no payload)
- 16 minutes (2.5kg payload)
- 22 minutes (2kg payload)
MAX Speed: 150km/h
Maximum flight altitude (MSL): 6000m
Maximum rising speed: 15m/s
Stable Working Temperature Range: -20℃ - 50℃
Payload: 2000-2500g
Specifications
| Brand | Pilotix |
| Protocol | ELRS 868/915MHz |
| Size | 8-inch |
| Drone type | Long Range |
| Signal Type | Analog |
| Wheelbase | 358mm |
| Top plate thickness | 2mm |
| Bottom plate thickness | 2mm |
| Drone power | 6S |
