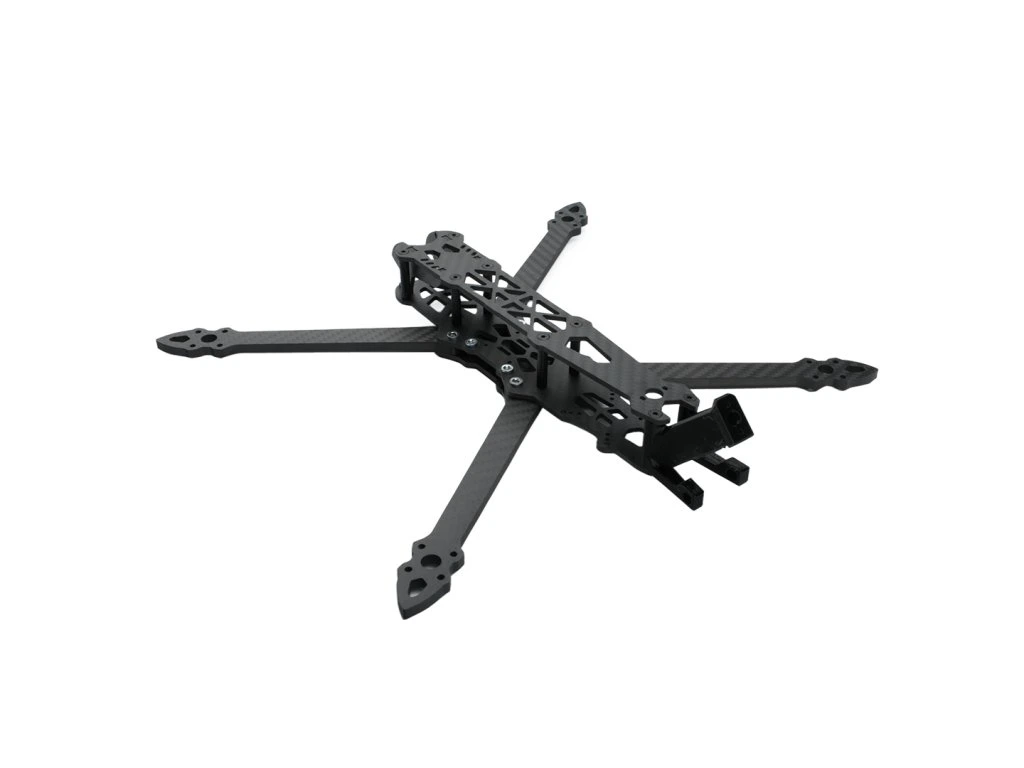

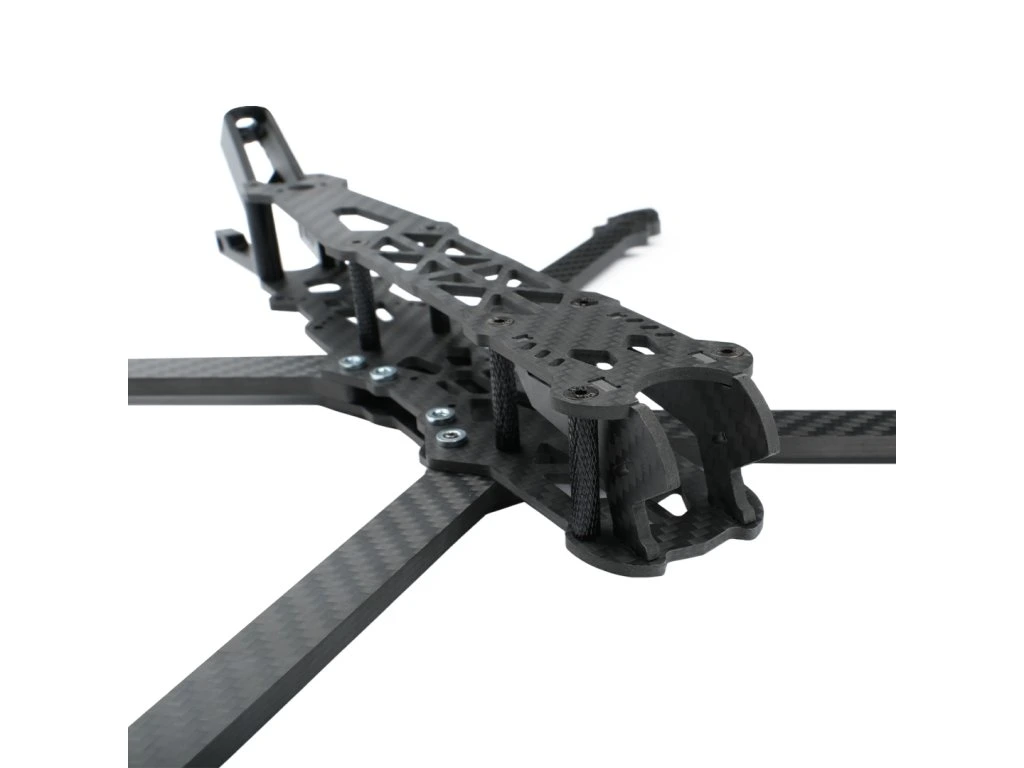

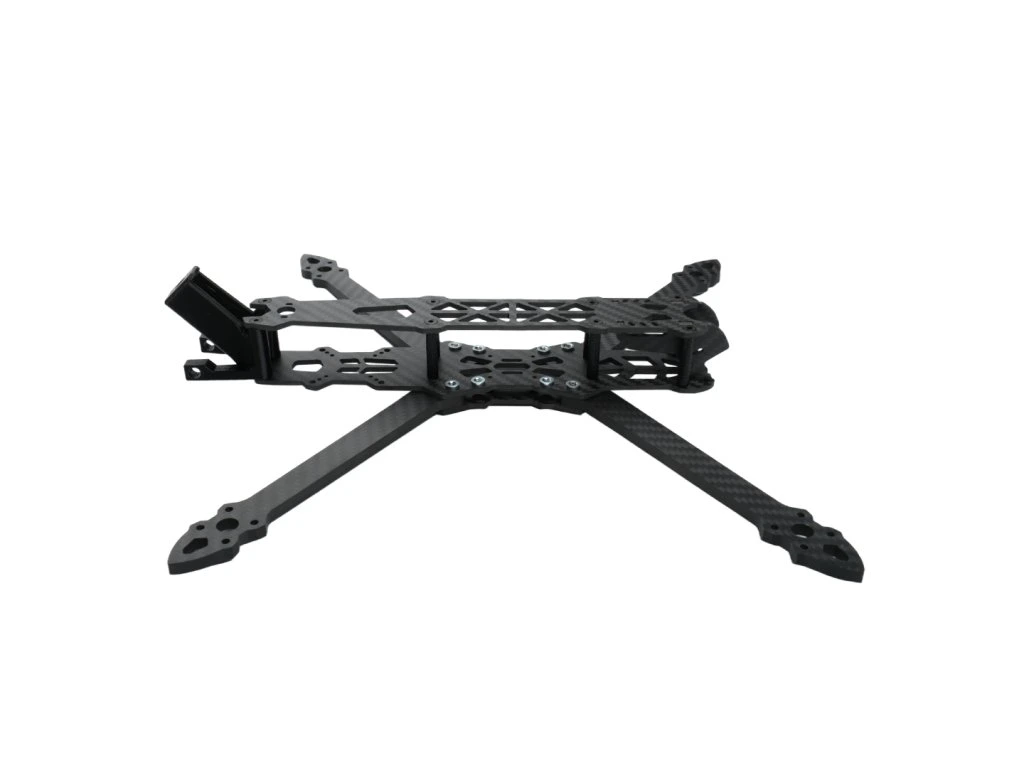

Frame Pilotix Mark4-7 V2 Partizan Edition

Frame Pilotix Mark4-7 V2 Partizan Edition

The Pilotix Mark4-7 V2 Partizan Edition is a top-tier carbon fiber frame designed for building 7-inch long-range drones. This frame combines exceptional strength with a lightweight design, ensuring optimal performance for extended flights.

Specifications:

Model: Pilotix Mark4-7 V2
Wheelbase: 325mm
Arm thickness: 5mm
Top plate length: 180mm
Top plate thickness: 2.5mm
Bottom plate length: 200mm
Bottom plate thickness: 2.5mm
Camera mounting: 19mm
Propeller size: 7 inch
Compatible motor size: 2807
Width: 234mm
Length: 207mm
Weight: 166g

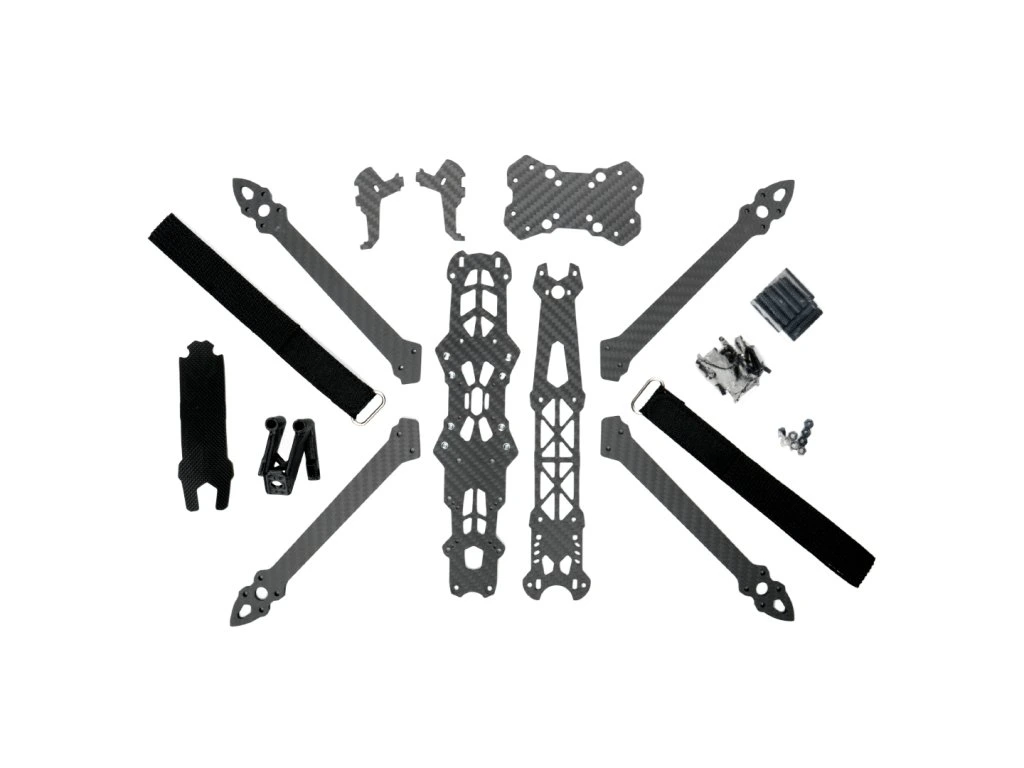

Package Includes:
1x Frame Pilotix Mark4-7 V2 Partizan Edition
