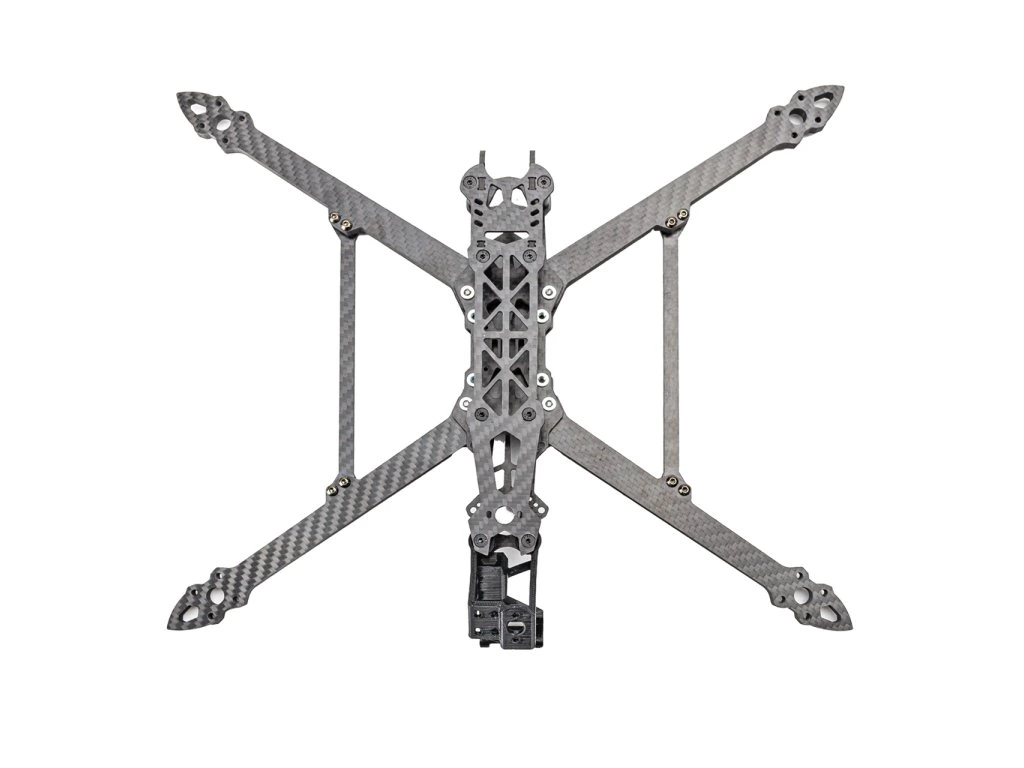

Frame Pilotix Mark4-8 V2 Partizan Edition

Frame Pilotix Mark4-8 V2 Partizan Edition

The Pilotix Mark4-8 V2 Partizan Edition is a durable and lightweight FPV drone frame designed for pilots who prioritize reliability, functionality, and customization options.

Features:

Size: 8-inch carbon fiber frame optimized for long-range and FPV missions.
Structure: Improved geometry for reduced vibrations and enhanced flight stability.
Mounting: Universal stack mounting options for 30.5x30.5mm and 20x20mm flight controllers.
Motor Mounts: Compatible with motors featuring 16x16mm and 19x19mm mounting patterns.
Camera Support: Protection for FPV cameras in Micro sizes (19mm).
Modular Design: Allows quick replacement of individual components without full disassembly.

The Frame Pilotix Mark4-8 V2 Partizan Edition is an excellent choice for FPV pilots looking for a combination of durability, performance, and distinctive design.

Specifications:

Model: Mark4-8 V2 Partizan Edition
Wheelbase: 367mm
Arm: 6mm
Top plate: 2.5mm
Bottom plate: 2mm
Camera side panel thickness: 2.5mm
Motor mounting hole pitch: 16x16mm & 19x19mm
Mounting hole spacing: 20x20mm & 30.5x30.5mm
Inner space height: 35mm
FC mounting holes: 30.5mm
Camera mounting: 19mm
Weight: 214g

Package Includes:
1x Fiber plate kit
8x Square cube
1x Aluminum column kit
1x Screws kit
1x Nuts kit
1x Prints kit
1x Battery pad
2x Battery strap
