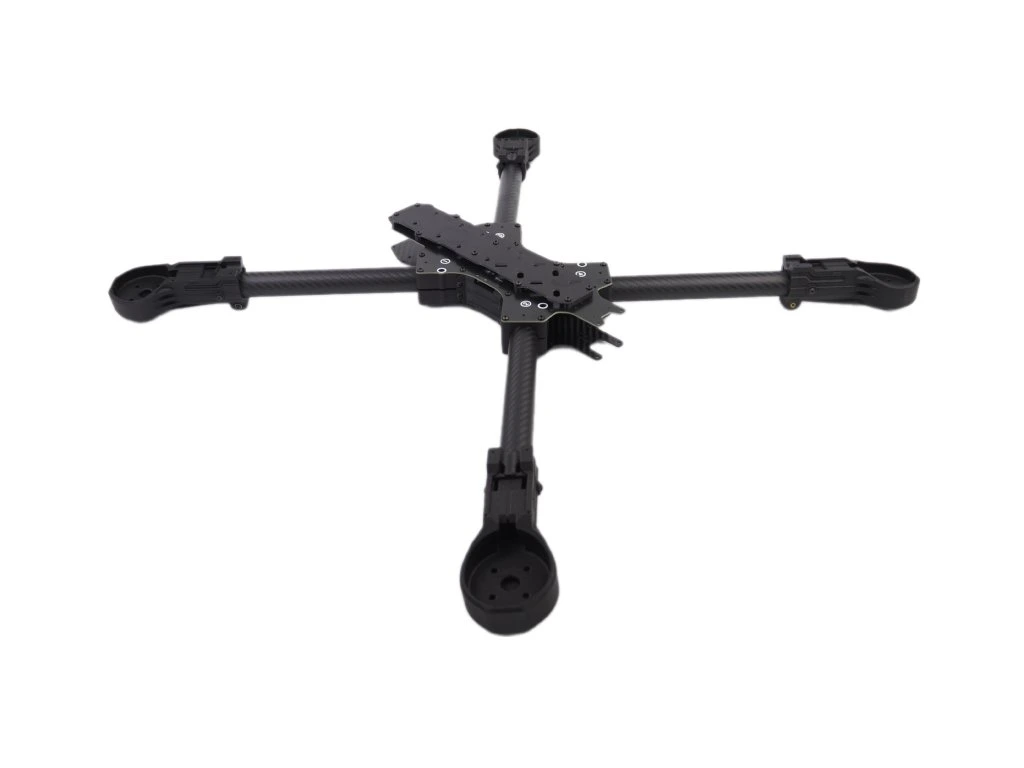

Frame Rocky13 Xclass 13"

The Frame Pilotix Rocky13 Xclass 13” is a top-tier carbon fiber frame designed for building 13-inch long-range drones. This frame combines exceptional strength with a lightweight design, ensuring optimal performance for extended flights.

Specifications:

Model: Frame Pilotix 13'' Xclass
Wheelbase: 590mm
Arm tube diameter: 25mm
Top plate width: 140 mm
Top plate length: 300mm
Top plate thickness: 1.6mm
Bottom plate width: 140mm
Bottom plate length: 300mm
Bottom plate thickness: 2mm
Camera mounting: 19mm
Propeller size: 13 inch
FC mounting holes: 30.5x30.5mm
Compatible motor size: 4212
Width: 570mm
Length: 560mm
Weight: 1000g
