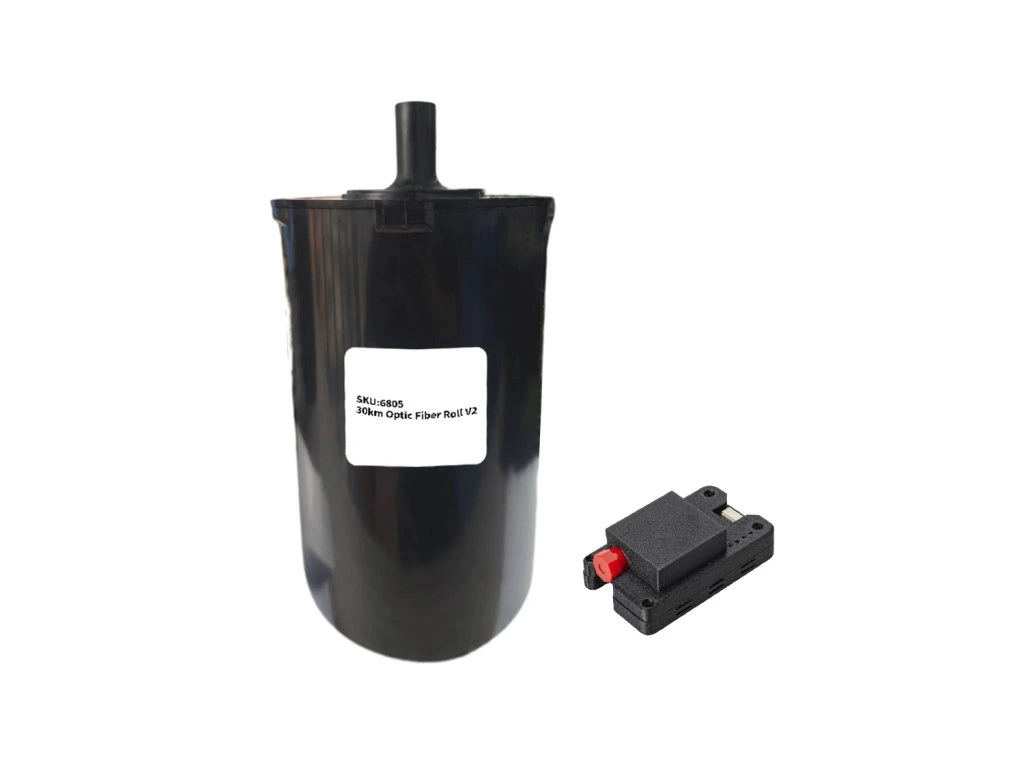

Module Pilotix with 30km Optic Fiber Roll SE V2

Model: 30km Optic Fiber Roll SE V2
Fiber Type: G657A2
Fiber Diameter: 0.28 mm ±0.01
Fiber Length: 20 km
Fiber Weight: 80 g/km
Optical Attenuation:
- 1310 nm: ≤0.35 dB/km, WT 0.329
- 1550 nm: ≤0.25 dB/km, WT 0.185
Optical Interface: FC
Sheath Material: Resinous
Working Temperature: -40 ~ +85 °C
Material: ABS
Color: Black
Size: 147 × 276 mm
Weight: 2950 g

Fiber Optic Digitizing Module
Device Name: Air Unit SE V2
Power Supply: 5.5V~26V
Body size: 63x37x23mm
Body weight: 31±2g

Fiber Optic Interface: FC Interface
Fiber Type: Single Mode - Single Fiber
Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data format: TTL/SBUS
Speed: 0~1Mbps
Wavelength single mode: 1310 (9/125μm) +1550
Transmission distance: single mode fiber up to 20km
