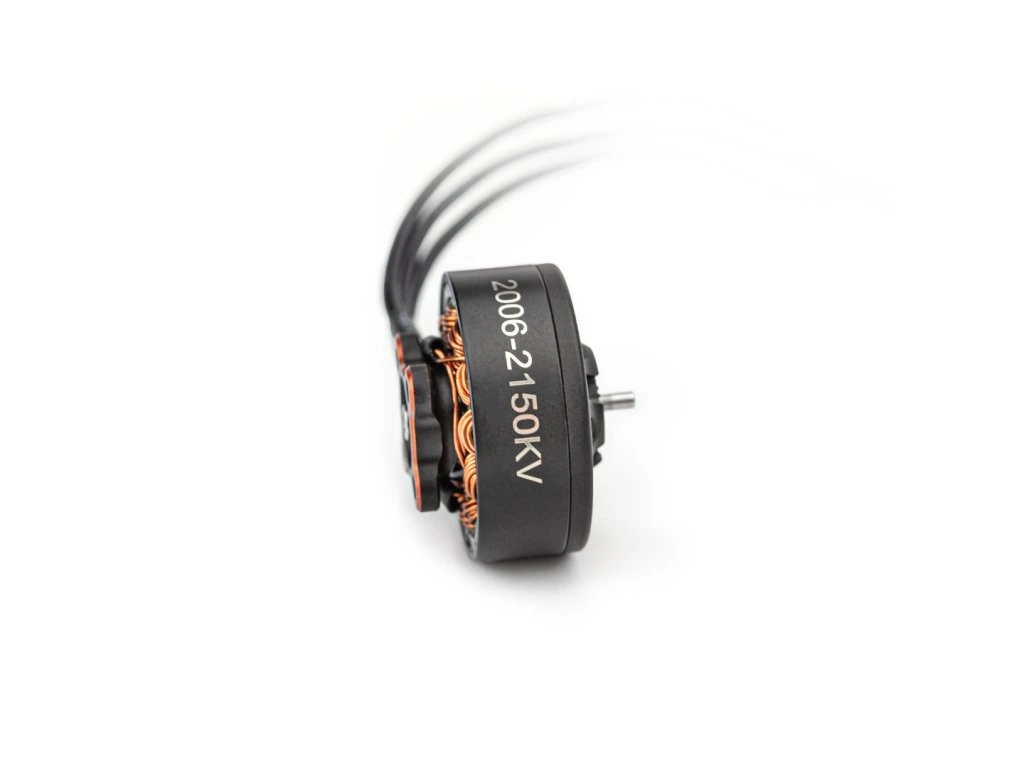

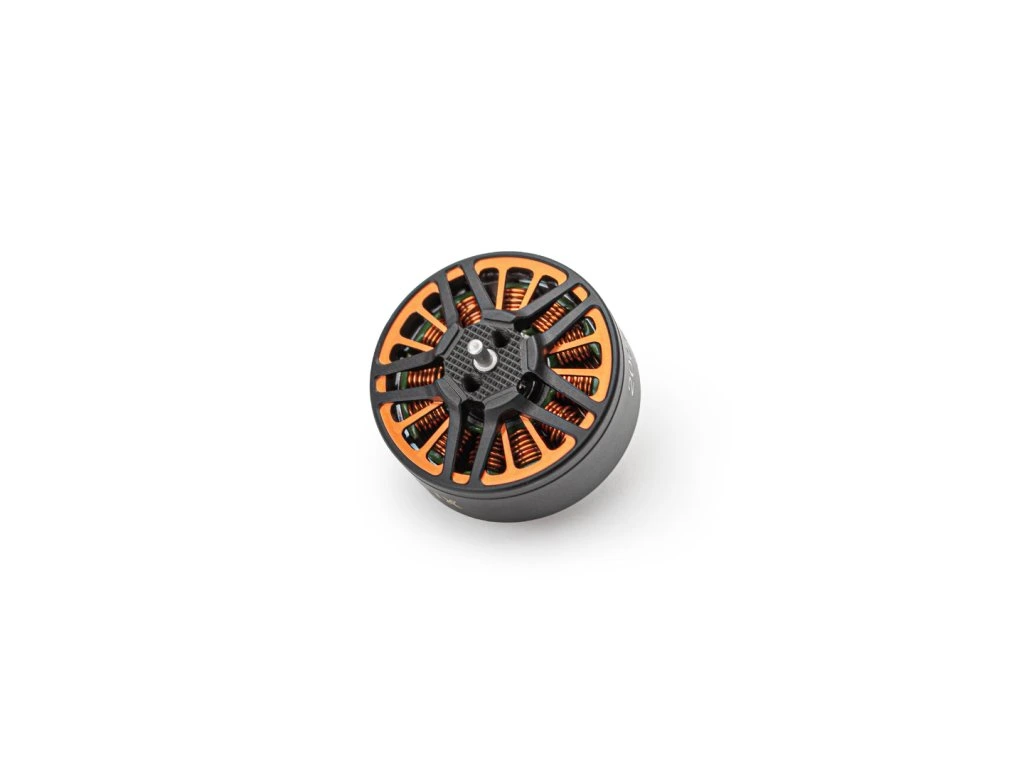

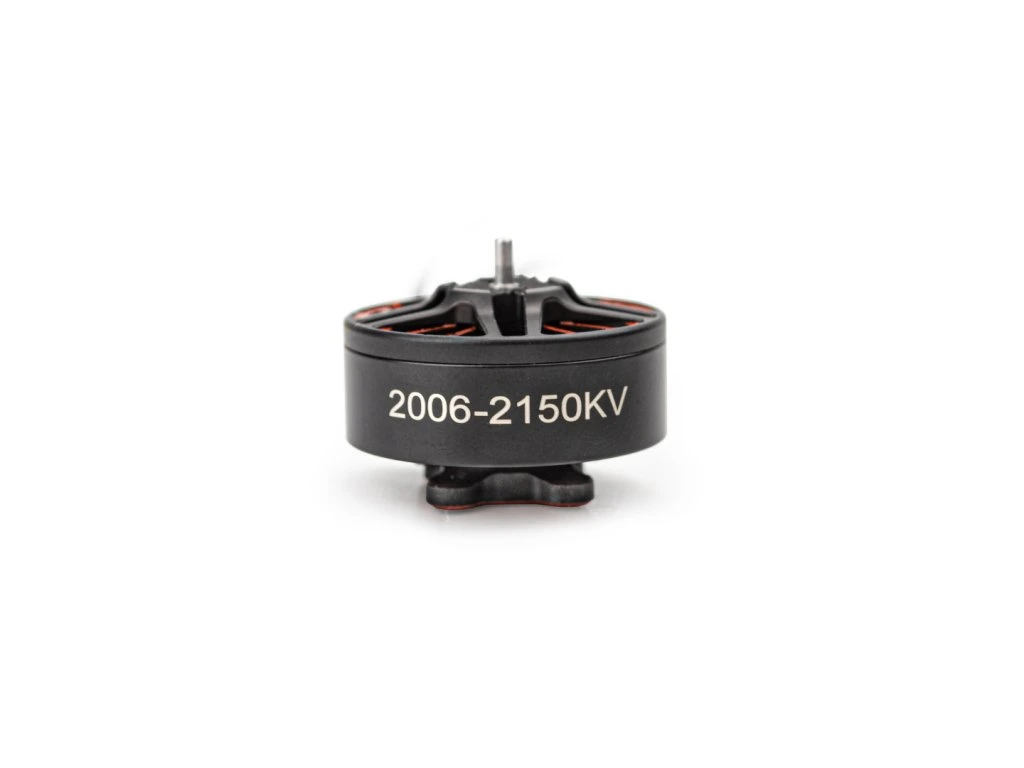

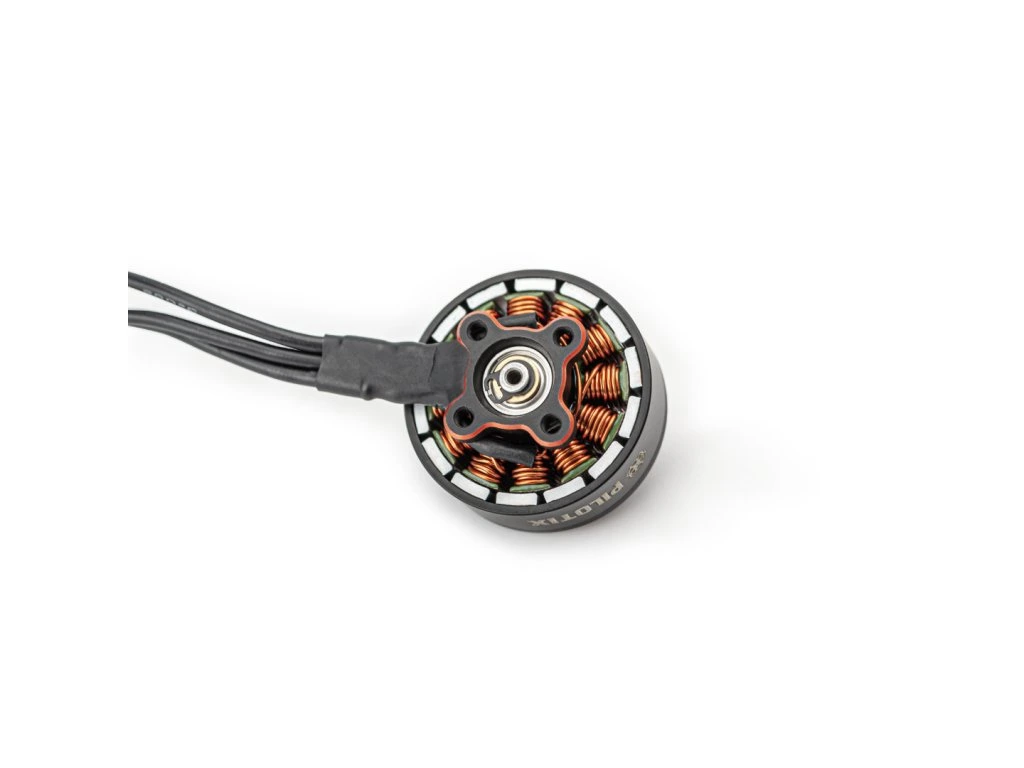

Motor Pilotix 2006 2150KV
Internal Resistance: 83mΩ
Stator Diameter: 20mm
Stator Height: 6mm
No. of Stator Slots: 12
No. of Stator Poles: 14
Dynamic balance: ≤10mg
NO-Load Current: 1A
Maximum Current: 21.81A
Maximum Power: 523.44W
Overall Dimension: 25.6xL19mm
Propeller size: 3.5 inch
Lead Wire Size: 22AWG*L100mm
ESC: 30A
Rated Voltage: 25.2V (6S)
Specifications
| Brand | Pilotix |
| Motor KV | 2150KV |
| Motor size | 2006 |
| Motor type | Brushless |
| Shaft diameter | 1.5mm |
