Motor Pilotix 4312 660KV

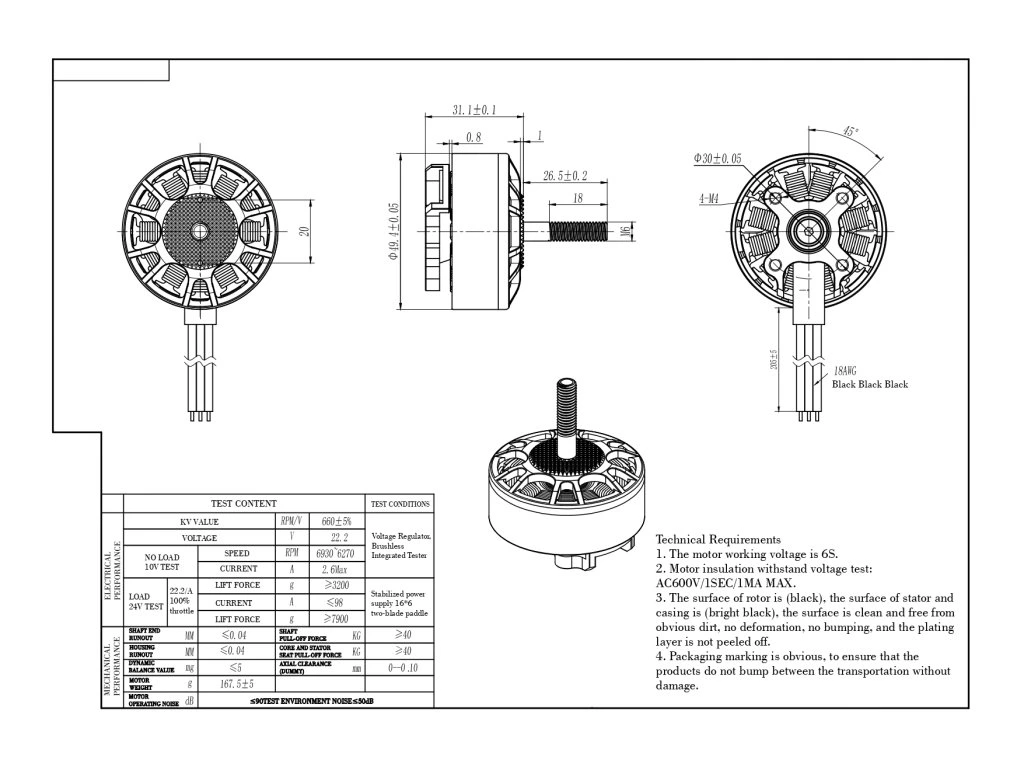

Weight: 167.5g
Diameter: 42 mm
Height: 31.1 mm
Shaft length: 18 mm
Mounting hole diameter: 4 mm
Rated Voltage (Lipo): 6S
Voltage (No Load Test): 10V
Speed: 6930 ± 670 RPM
Current: 2.6A Max
Lift Force: ≥ 3200 g
Voltage (Load Test): 22.2V at 100% throttle
Current: ≤ 98A
Lift Force: ≥ 7900 g
Mechanical Performance
Shaft End Runout: ≤ 0.04 mm
Housing Runout: ≤ 0.04 mm
Dynamic Balance Value: ≤ 5 mg
Motor Weight: 167.5 ± 5 g
Shaft Pull-Off Force: ≥ 40 kg
Core and Stator Seat Pull-Off Force: ≥ 5 kg
Axial Clearance (Dummy): 0 ~ -0.10 mm
Motor Operating Noise
Operating Noise: ≤ 90 dB
Test Environment Noise: ≤ 50 dB
Test Conditions
Voltage Regulator, Brushless Integrated Tester
Stabilized Power Supply 16*6 Two-Blade Paddle
Specifications
| Brand | Pilotix |
| Motor KV | 660KV |
| Motor size | 4312 |
| Motor type | Brushless |
| Shaft diameter | 6mm |
| Power supply | 6S |
