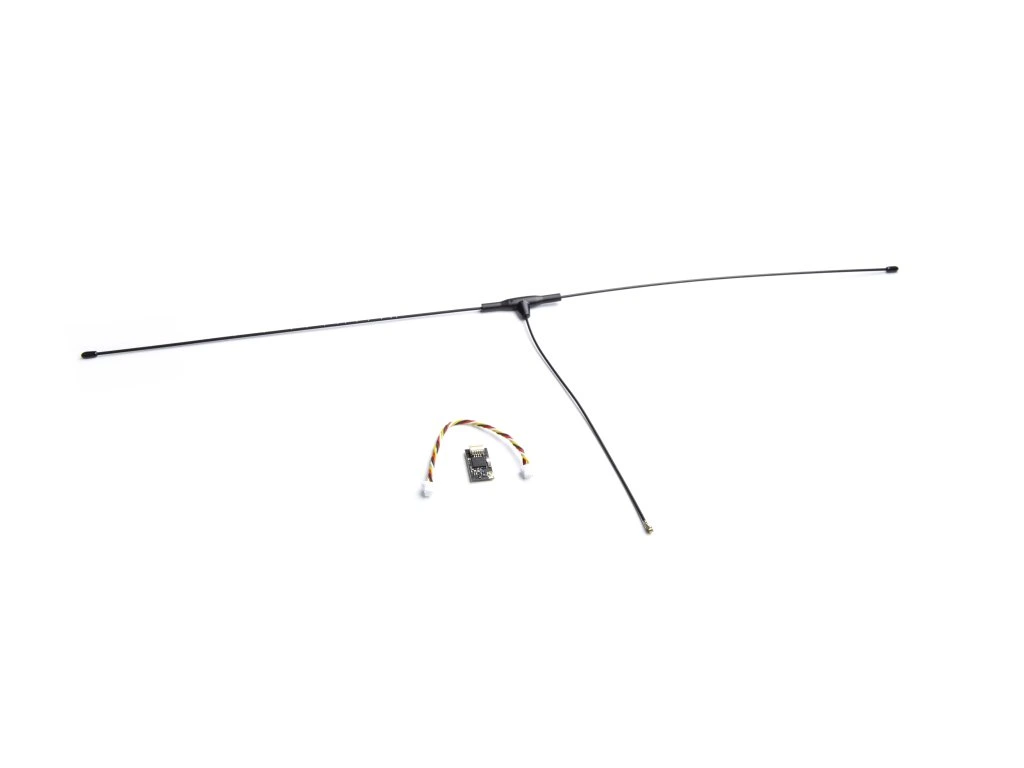

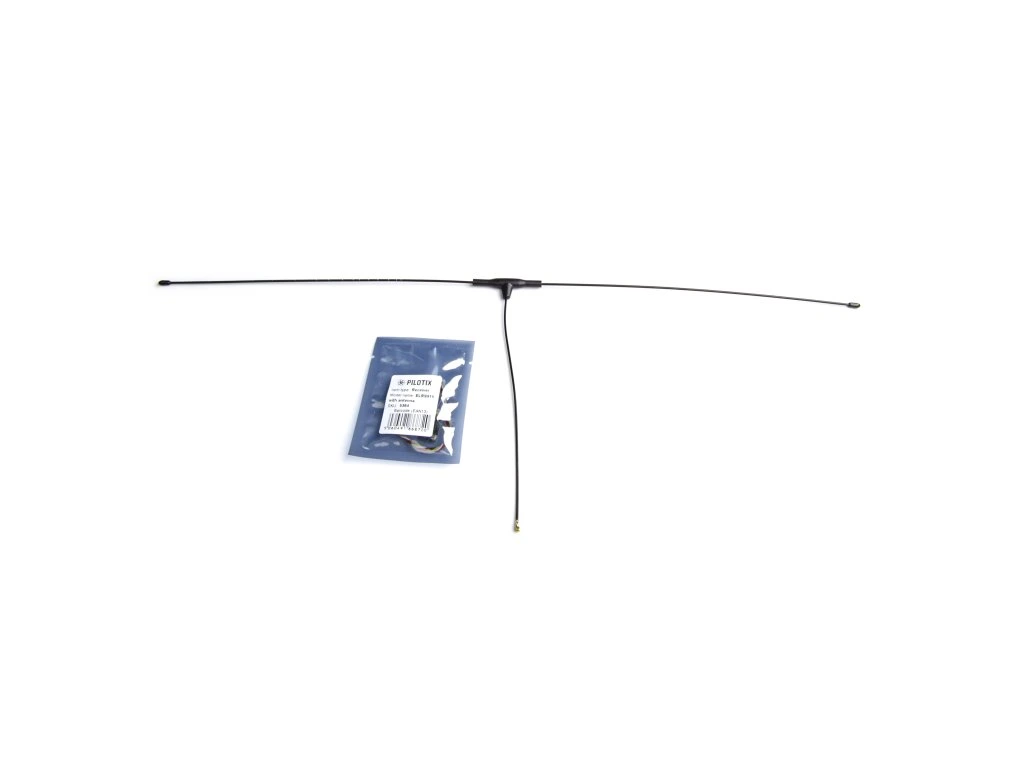

Receiver Pilotix ELRS 868/915 with antenna PNP

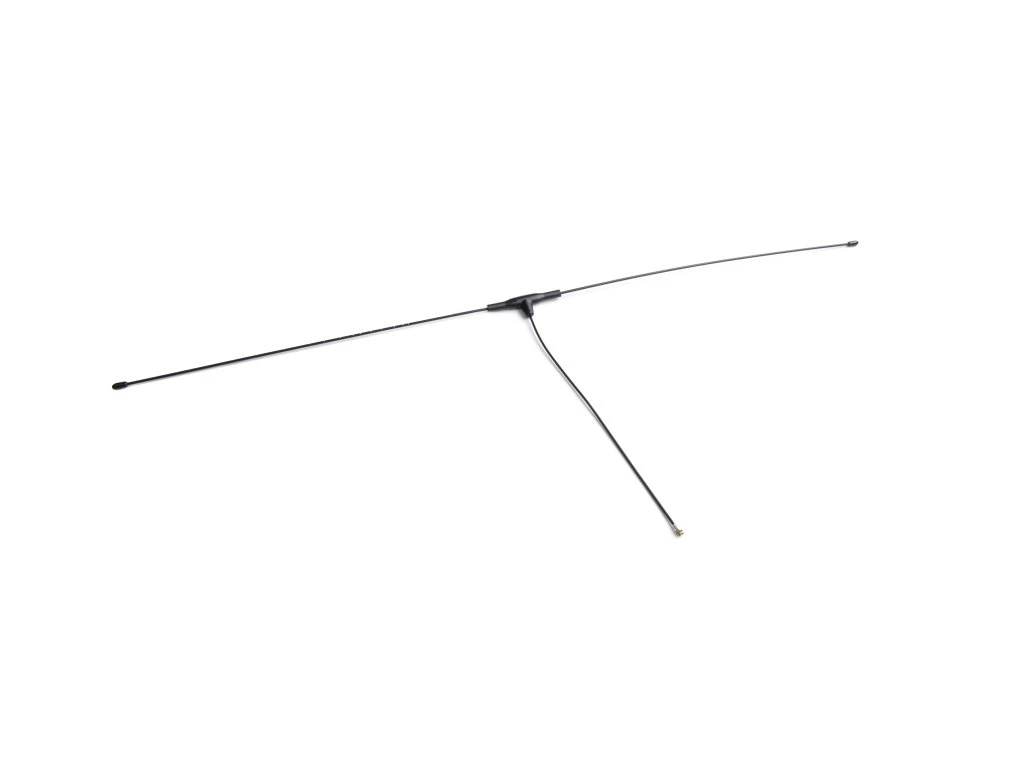

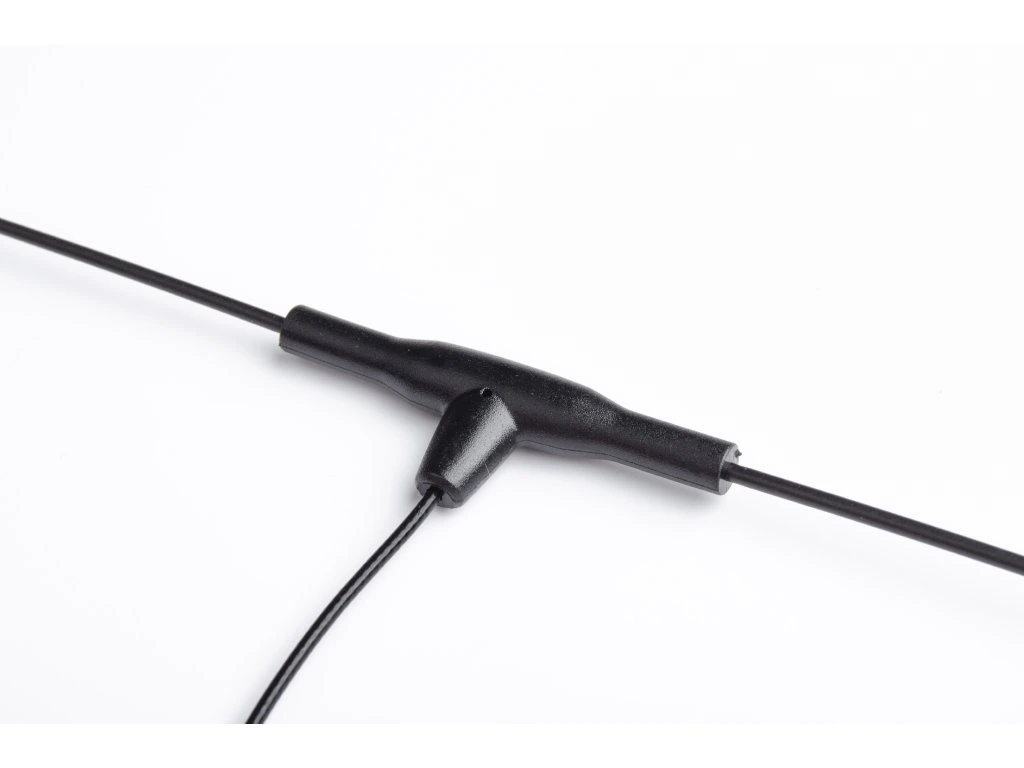

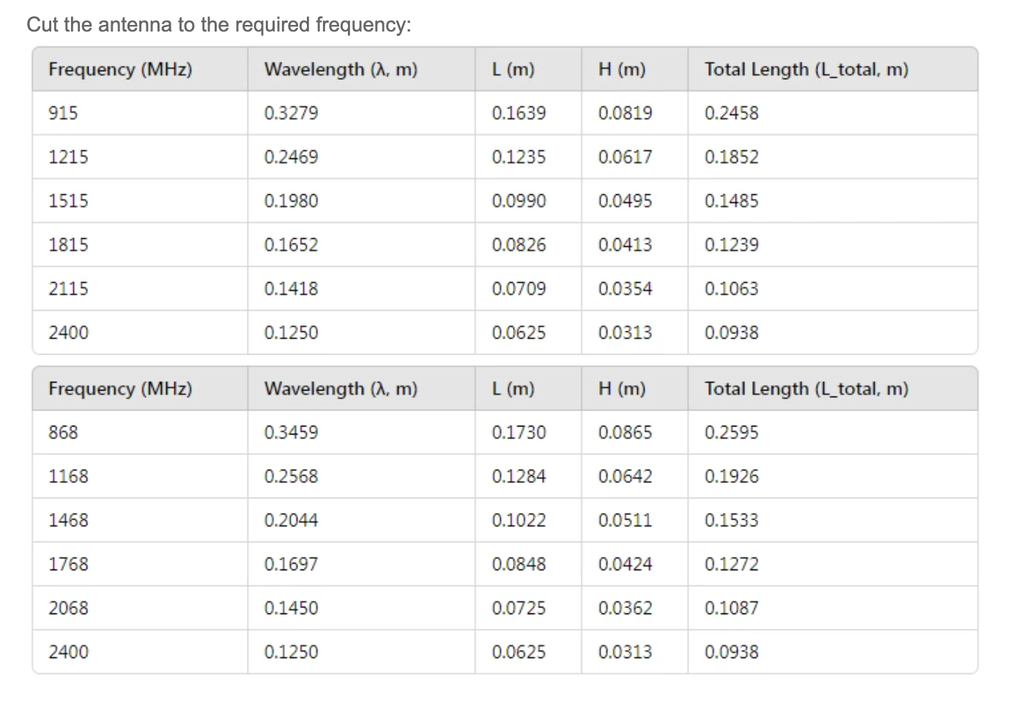

The Pilotix ELRS 868/915MHz receiver is equipped with a T-shaped antenna (IPEX-1 connector) and ensures optimal signal reception for uninterrupted communication between the drone and the transmitter. The antenna can be trimmed specifically within the 300MHz to 1000MHZ frequency range, ensuring excellent signal quality and consistent performance, making it ideal for long-range communication.

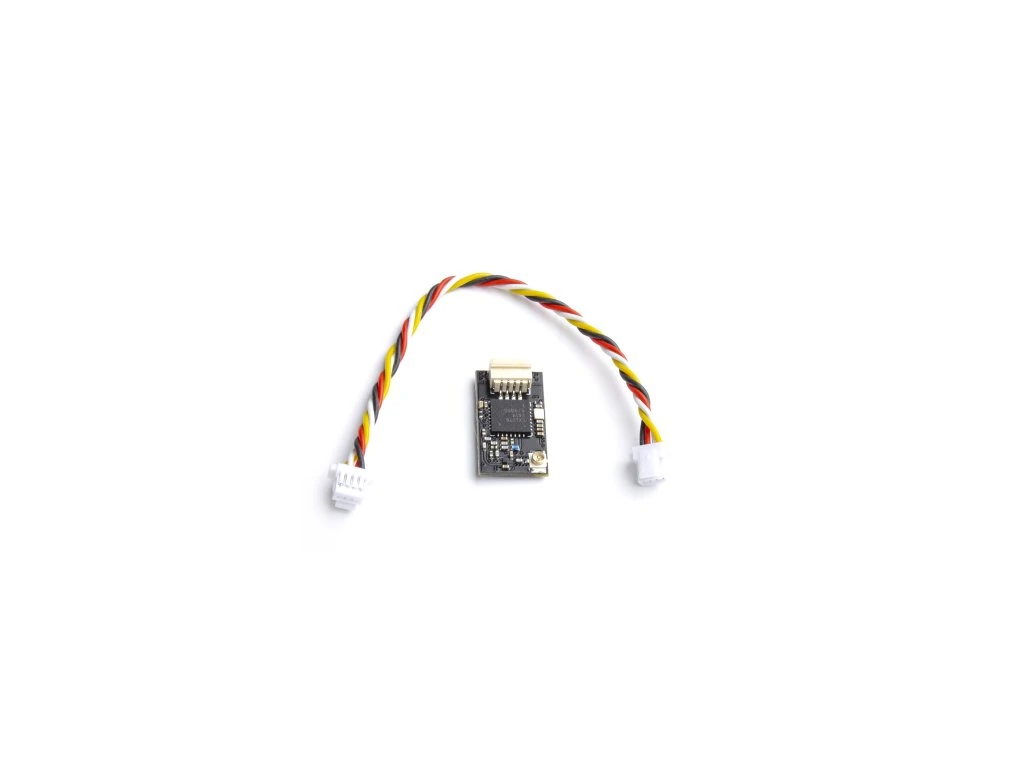

Installation is simplified via a connector-based interface, eliminating the need for soldering and reducing setup time. This plug-and-play approach enables quick and secure integration with your existing flight stack, making the Pilotix ELRS 868/915MHz a versatile and user-friendly choice for advanced FPV pilots.

Specifications

Item: Pilotix ELRS 868/915M Nano with T-antenna
Frequency band: 868/915MHZ
Input voltage: 4.5V-5.5V
Antenna connector: IPEX1
Type: ISM
Weight: 6g
Dimensions: 20x12mm
Firmware: Aocoda 900 RX
Receiver protocol: CRSF
