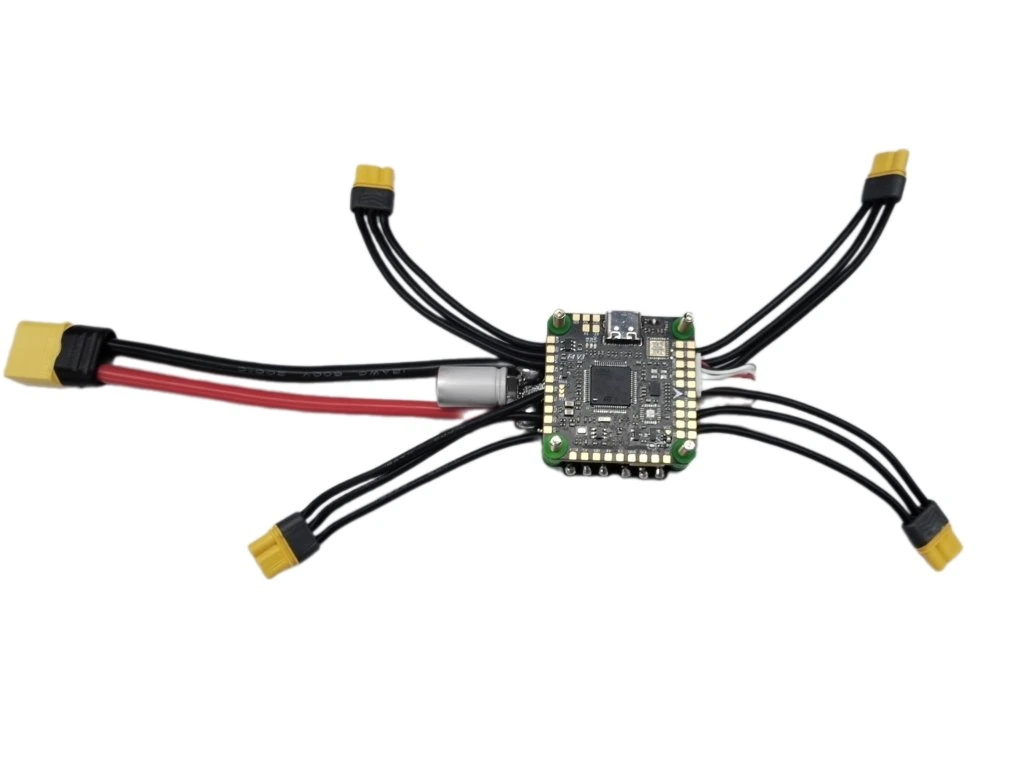

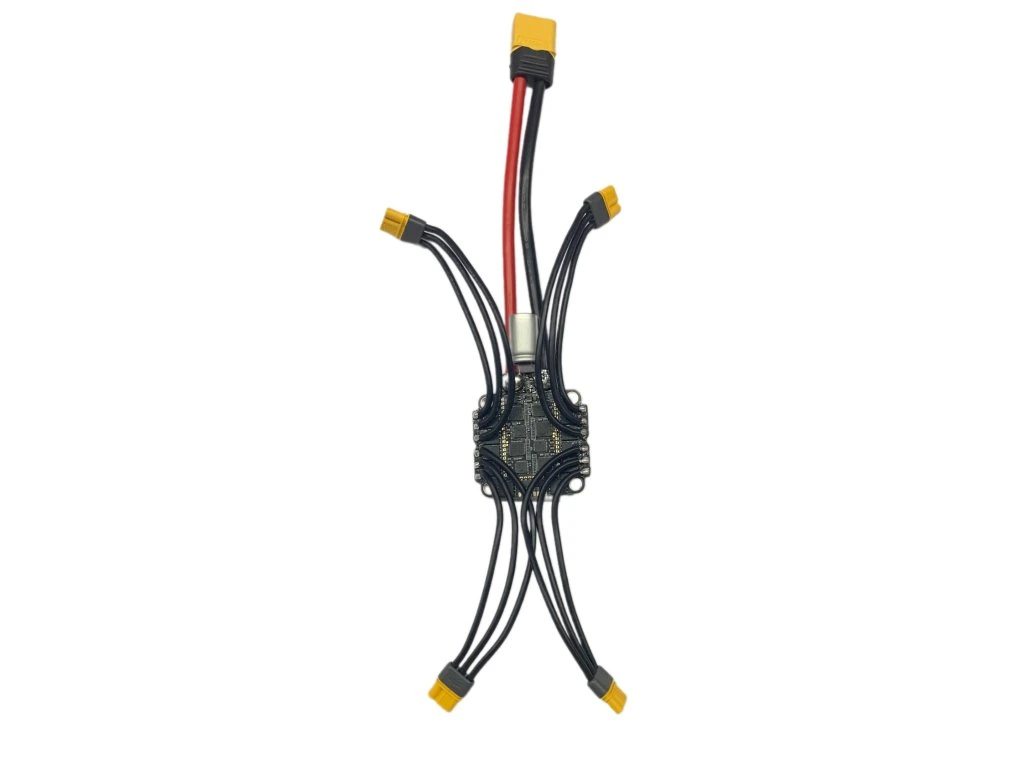

Stack PILOTIX DIY Kit (F405 V3 FC + 60A V1.0 ESC)

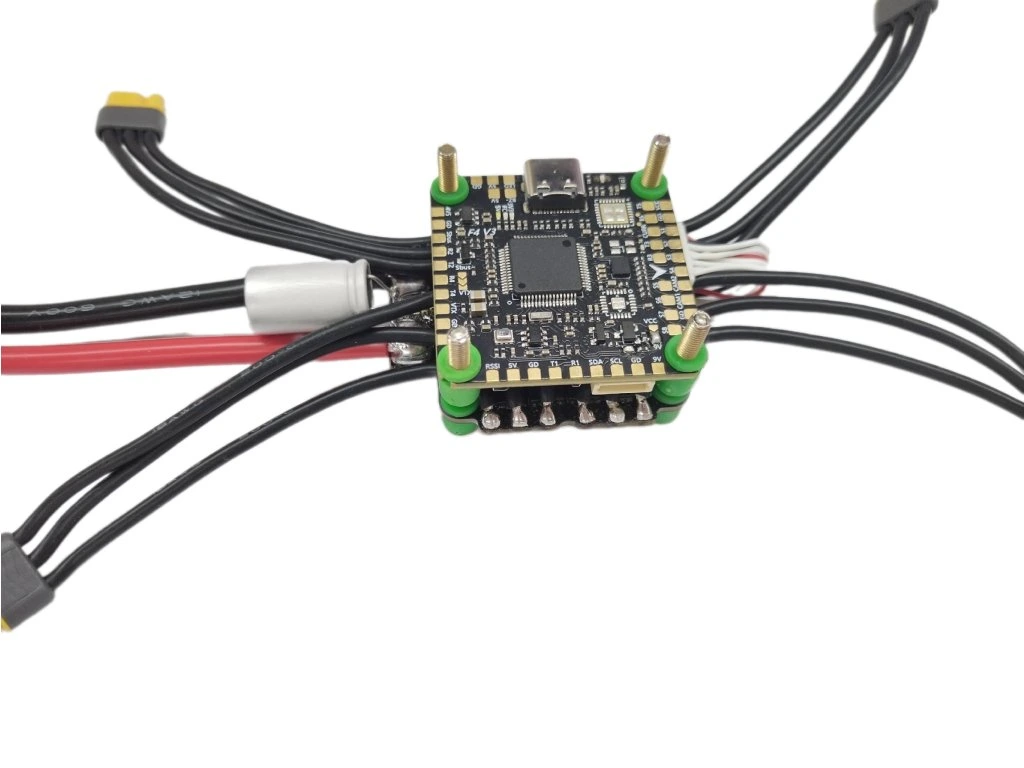

F405 V3 Flight Control
Controller: STM32F405RGT6
Gyroscope: ICM42688
Barometer: SPL06B
Black Box: 16MB
Motor Output: 8 channels
Universal Serial Ports: 5 channels
Output Power Supply: 5V/2.5A, 9V/2A
OSD: Supported
Bluetooth: Supported
Weight: 9.6g
Dimensions: 36mm x 36mm
Installation Hole Position: 30.5mm x 30.5mm
Firmware Name: AOCODAF405V3

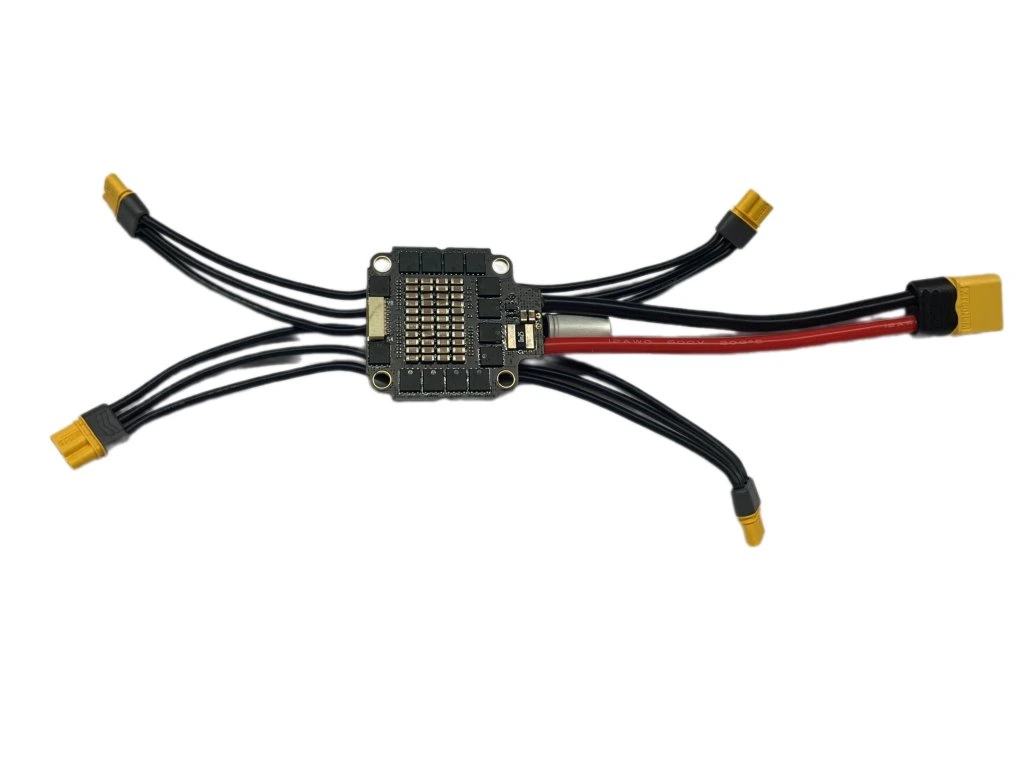

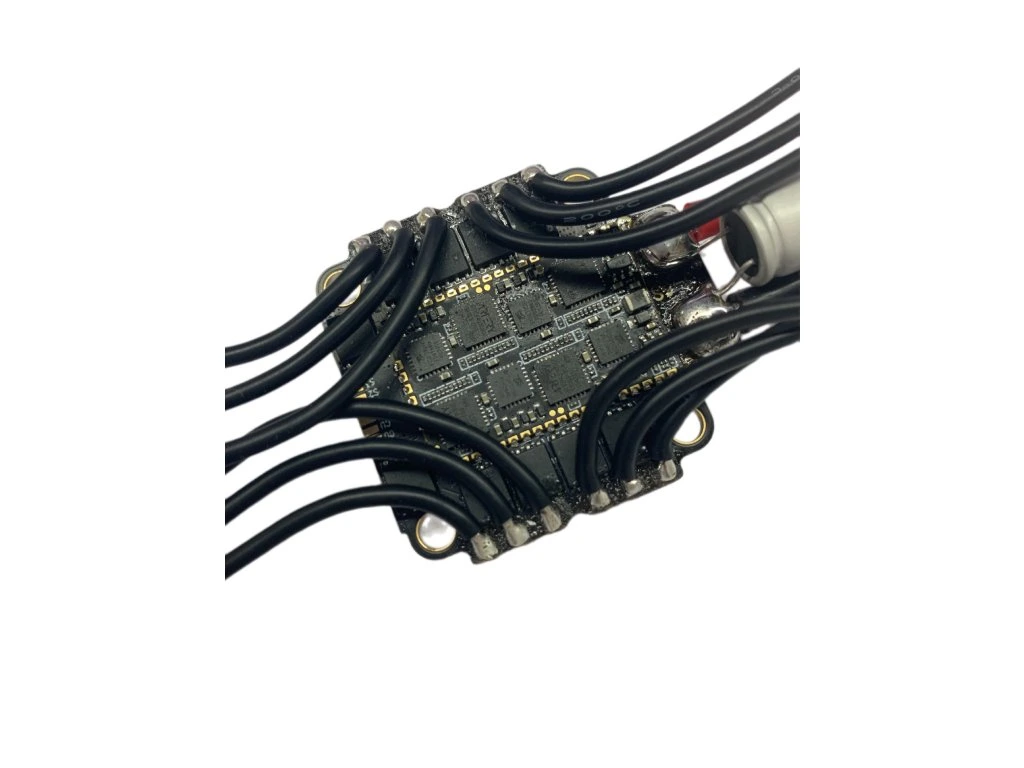

Bettle 3060 Electrical Regulation (ESC)
Continuous Current: 60A x 4
Burst Peak Current: 70A x 4
Input Signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
Telemetry: Supported
Current Meter: Supported
Input Voltage: 3-6S LiPo
Firmware Name: AM32 AORC AT421A
Working Temperature: -20°C to +85°C
Working Humidity: 20% to 95%
Storage Temperature: -20°C to +70°C
Mounting Hole: M3, 30.5mm x 30.5mm
Weight: 13.9g
Dimensions: 41mm x 44.5mm
Comes with:
4 motor cables
1 power cable
1 solid capacitor
