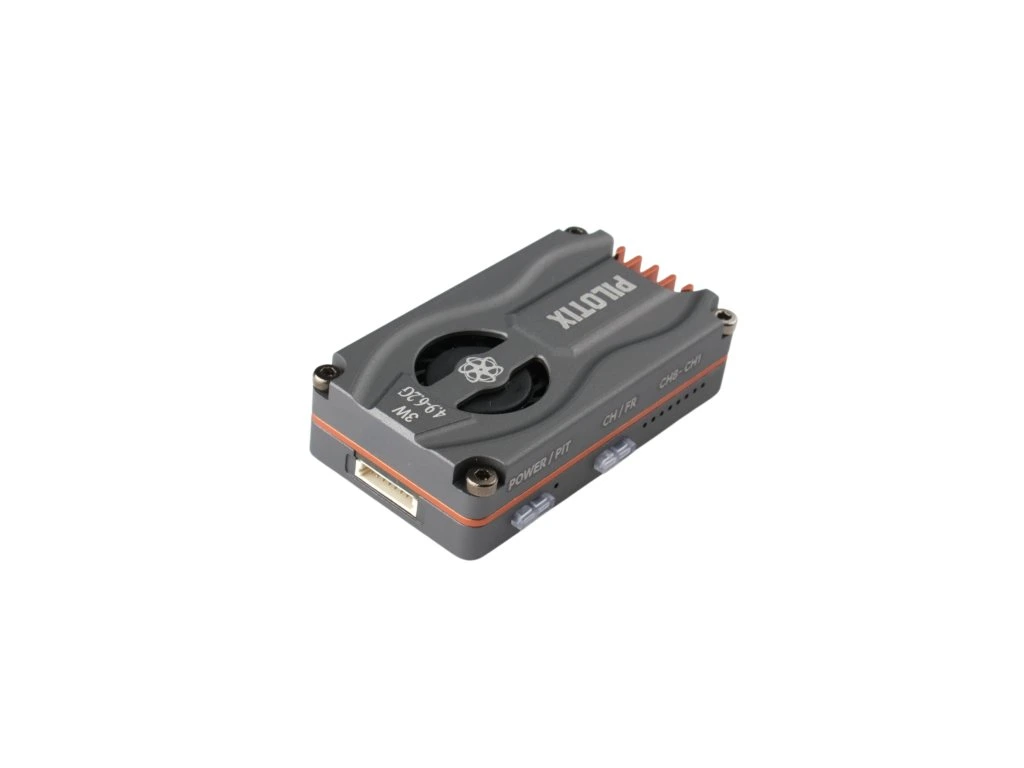

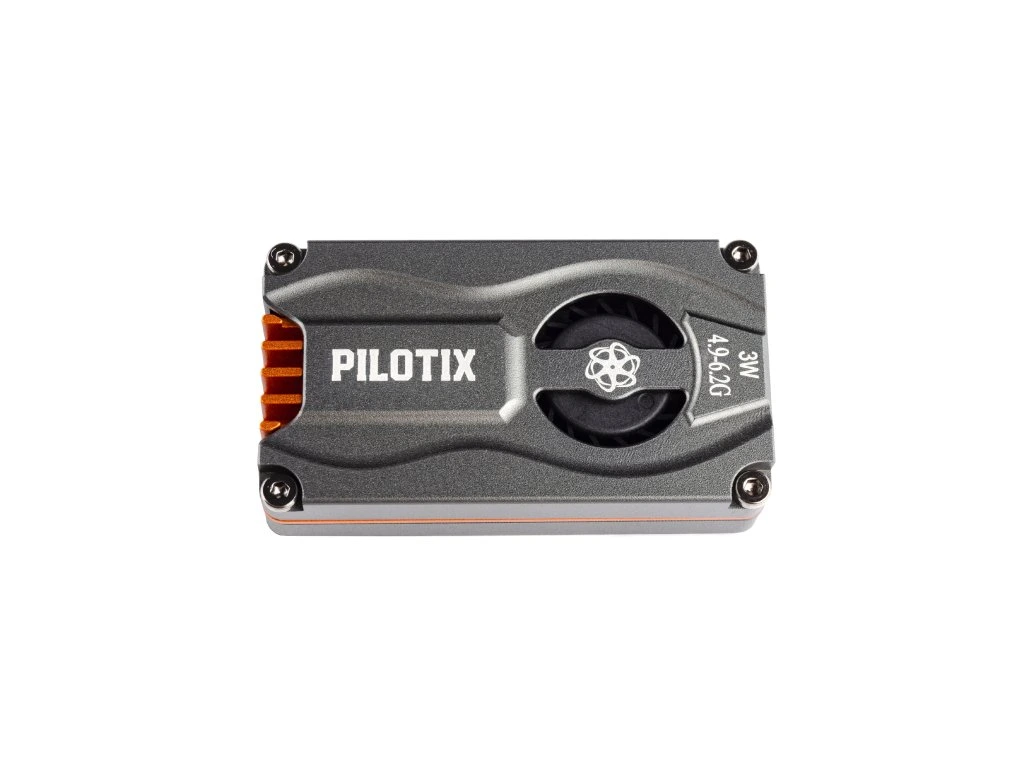

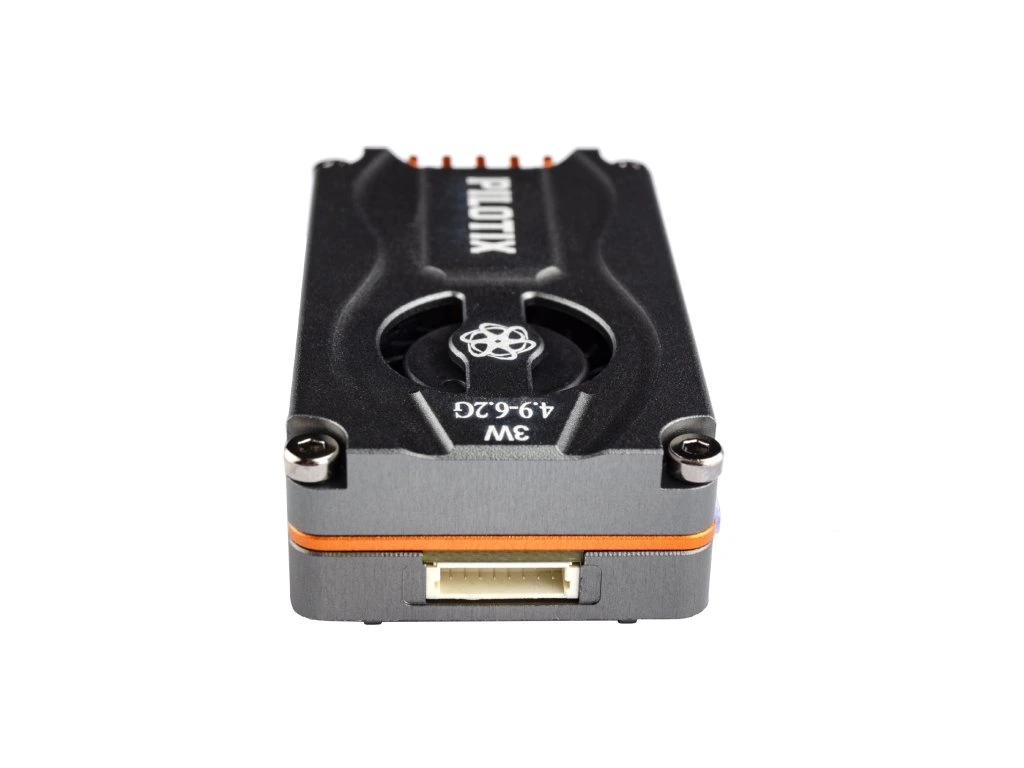

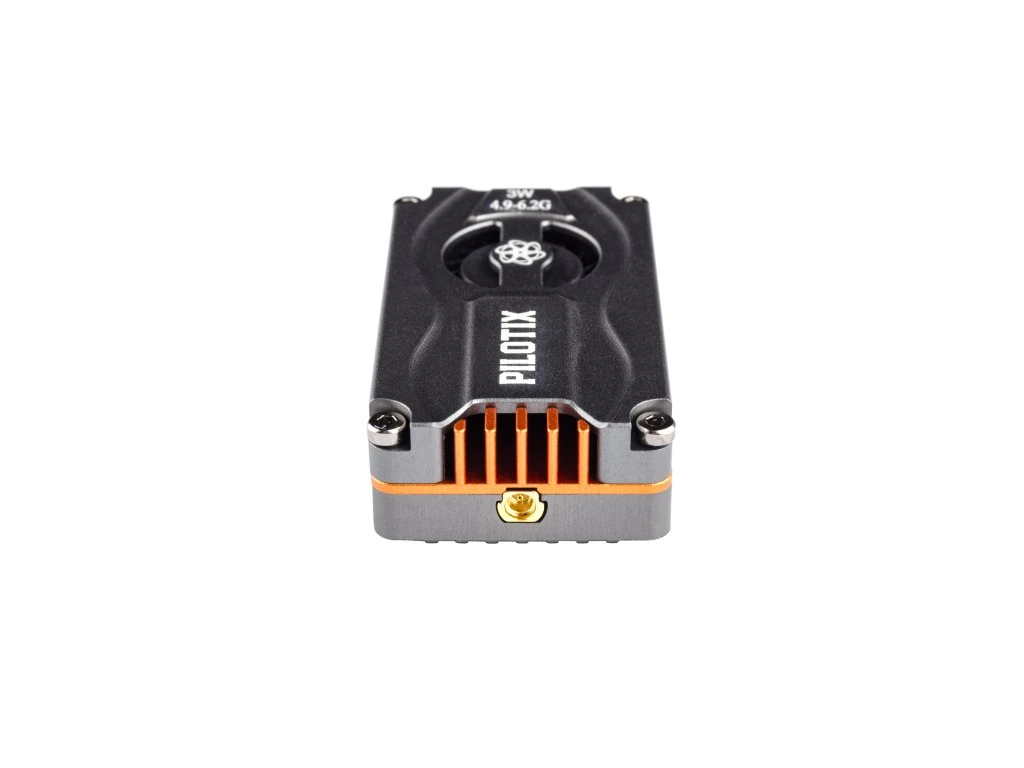

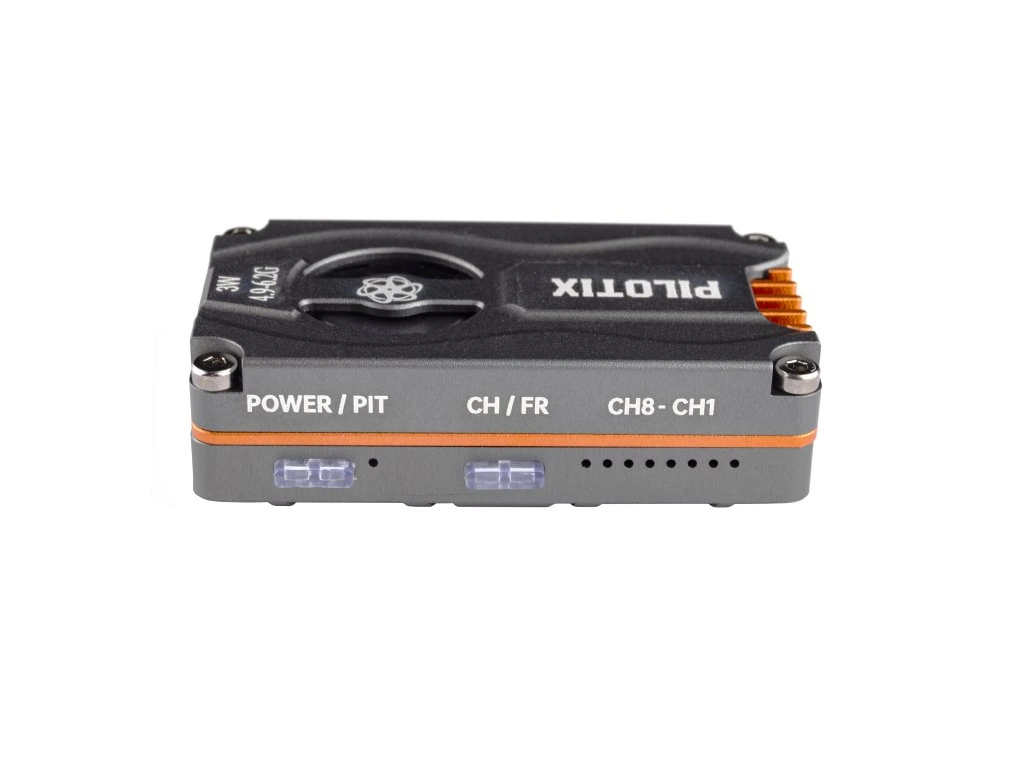

VTX Pilotix R3000 (4.9-6.2G 3W)

The Pilotix R3000 VTX (4.9-6.2G 3W) is a high-performance video transmitter designed for demanding drone applications. It supports a wide input voltage range and offers multiple power options from PIT mode up to 3W for long-range transmission. The R3000 ensures reliable performance for both professional and hobby use.

Specifications:

Model: Pilotix 4.96.2G 3W VTX
DC IN: 7-36V
Working temperature: -10~60℃
RF Impedance: 50Ω
Video Input Impedance: 75Ω
Antenna Interface: MMCX
Video Format: NTSC/PAL
Protocol: TBS SmartAudio
Channel: A-B-E-F-R-L-X-Y
Power: PIT/25mW/1W/2W/3W
Size: 53 × 29.5 × 14.7 mm
Mounting: 20 × 20 mm / M2

Package includes:
1x VTX
2x Cables
