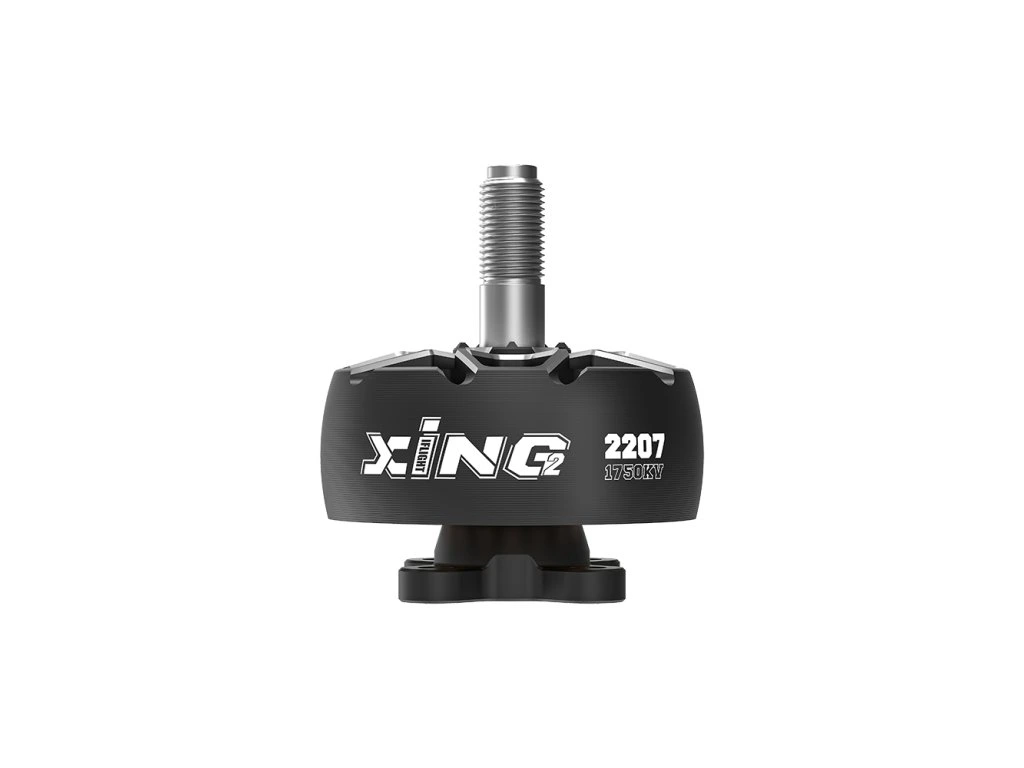

Motor iFlight XING2 2207 Unibell 1750KV (6S)
Weight(included wire): 30.5g
Dimension: φ29*19.25mm
Interphase Resistance: 74.23mΩ
Input Volts: 25.2V
Peak Current: 36.3A
Max Watt: 898W
Mounting Holes: 16*16 φ3mm
Rotor Specifications: Unibell
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding
Specifications
| Brand | iFlight |
| Motor KV | 1750KV |
| Power supply | 6S |
| Shaft diameter | 5mm |
| Motor size | 2207 |
| Motor type | Brushless |
