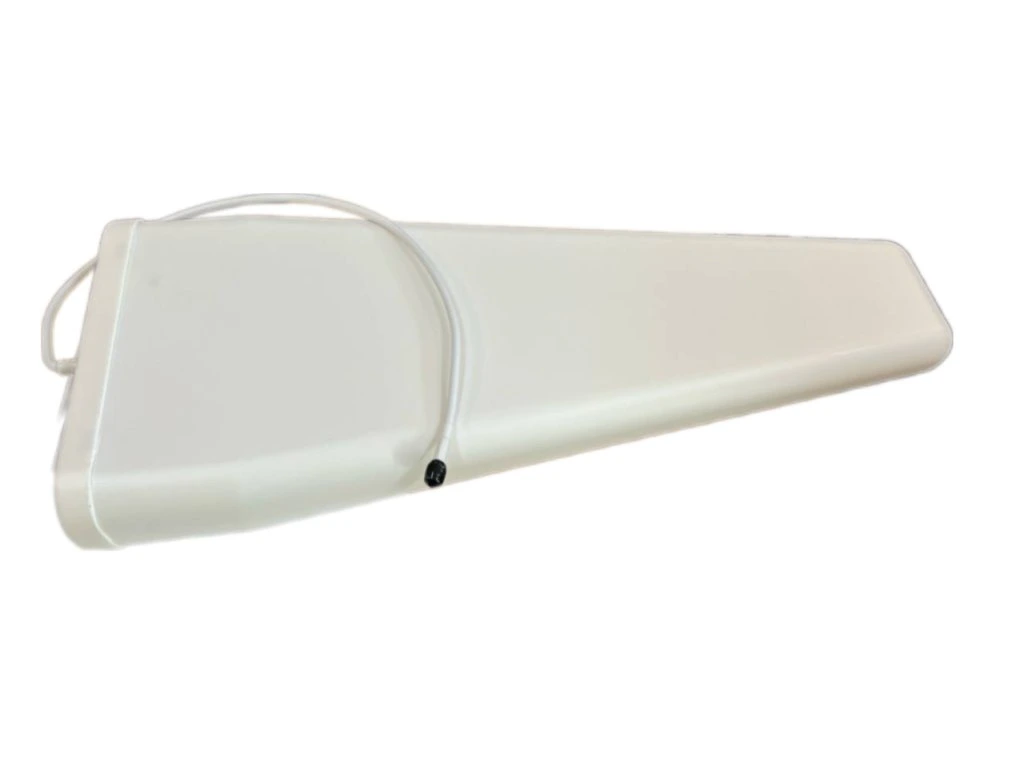

Antenn Maple Wireless Log-Periodic SMA-MALE (700- 1020MHz)
Frequency Range: 700-1020 MHz
Impedance: 50 Ω
VSWR: <1.5
Gain: 9 dBi
Half Power Beamwidth:
H-plane: 90°
E-plane: 60°
Front-to-Back Ratio: >20 dB
Max Power: 10 W
Polarization: Vertical
Input Connector: SMA
Electrostatic Protection: Direct grounding
Ambient Temperature Range: -40°C to +60°C
Mechanical Behavior
Antenna Size: 510×210×60 mm
Net Weight: 870 g
Spetsifikatsioon
| Kaubamärk | Maple Wireless |
| Sagedus | 0.7–1.02 GHz |
| Võimsus | 9 dBi |
| Liitmiku tüüp | SMA |
| Polarisatsioon | Vertical |
