FPV camera CADDXFPV Ratel Pro 1500TVL Black (Industrial Packaging)

Caddx Ratel Pro Analog Camera (Industrial Packaging)

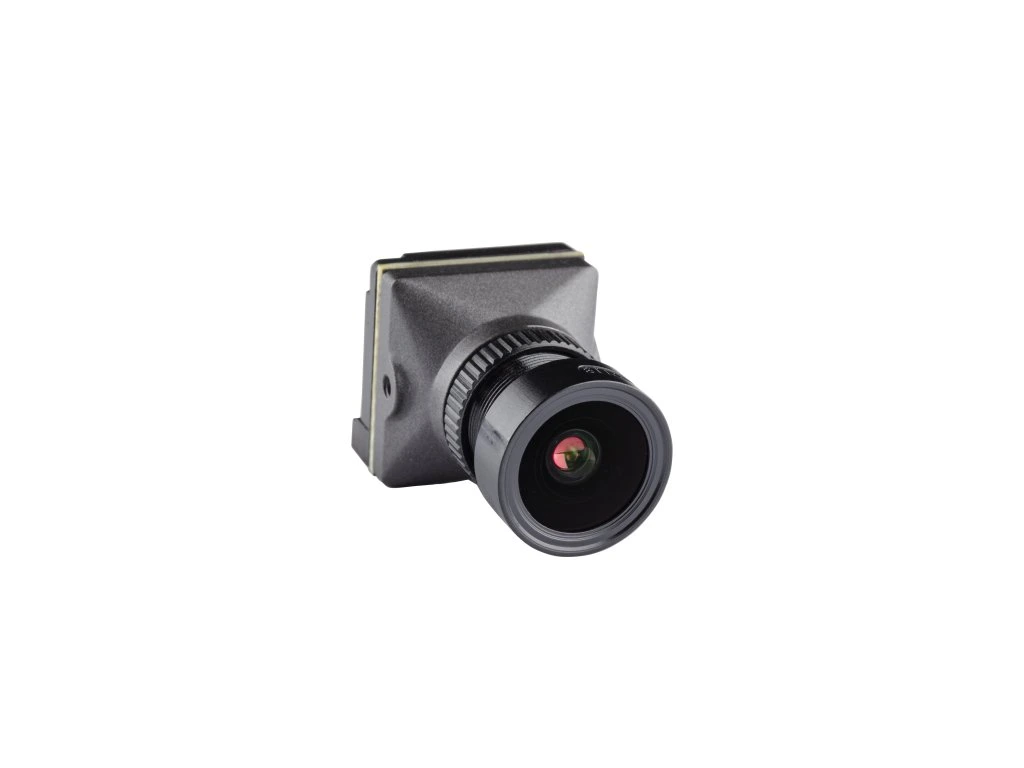

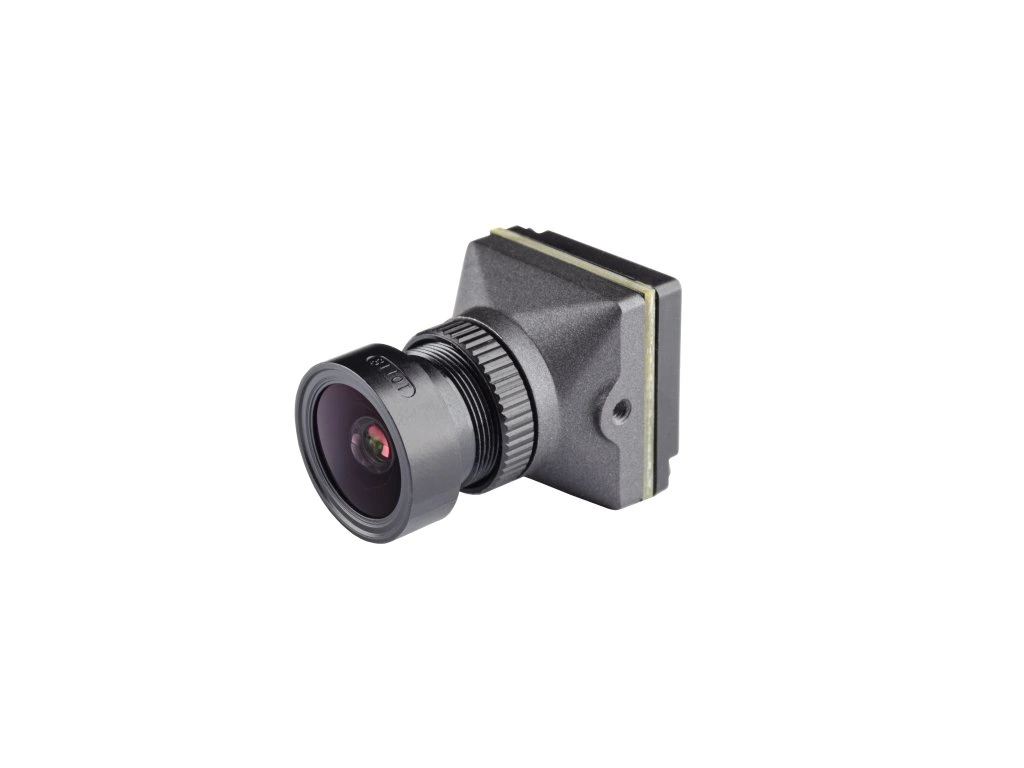

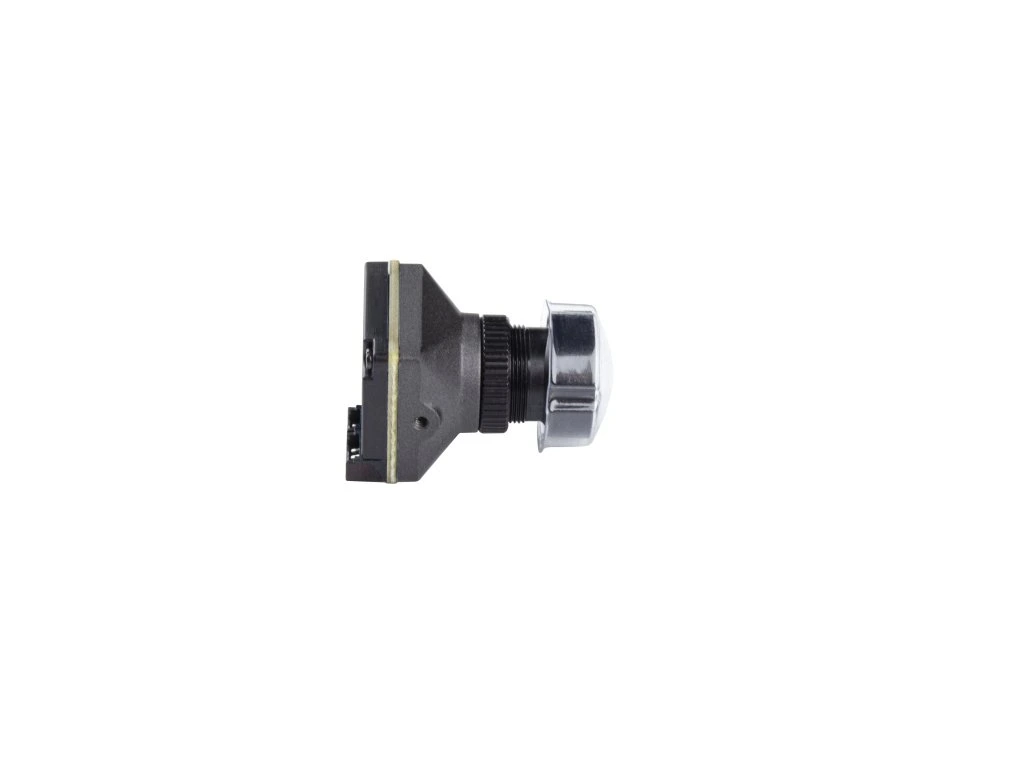

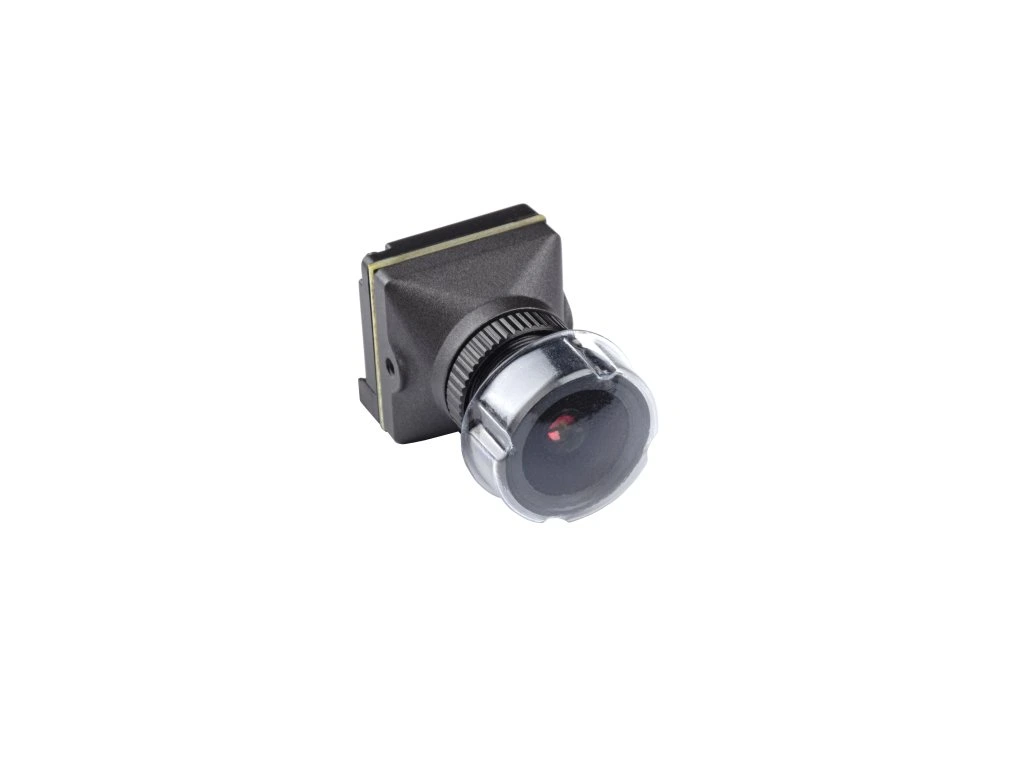

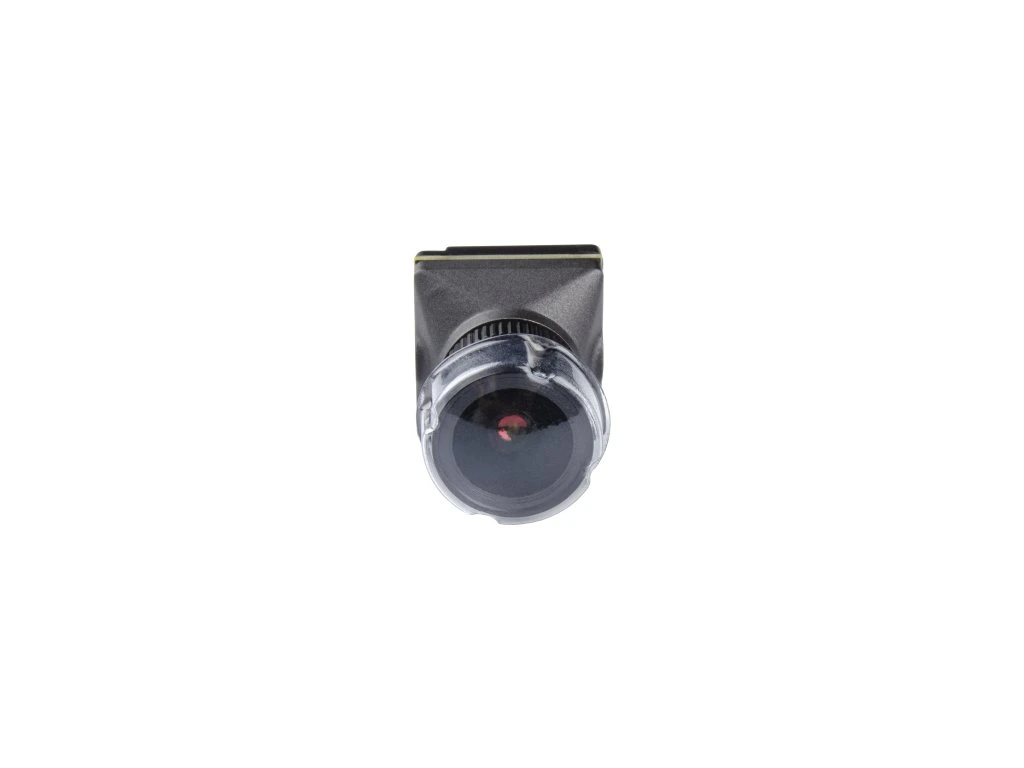

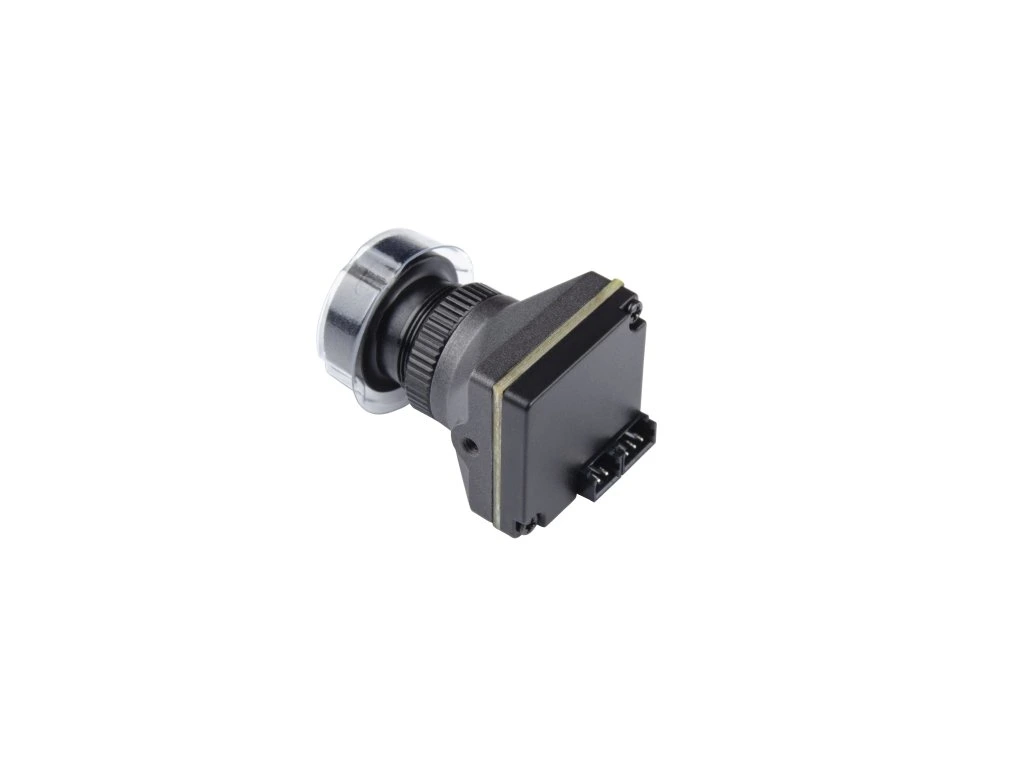

The CaddxFPV Ratel Pro is a high-performance analog FPV camera designed for exceptional image quality in various lighting conditions. Equipped with a 1/1.8-inch sensor and 1500TVL resolution, it ensures sharp and clear visuals. The camera features Super WDR (Wide Dynamic Range) technology, enhancing detail in both bright and dark environments. Its low-light performance is notable, with a minimum illumination of 0.00001 lux, making it suitable for night flights. Users can switch between 16:9 and 4:3 aspect ratios to fit different display preferences. The robust metal housing improves durability and heat dissipation, while the 125° field of view offers a natural flight perspective. With a wide voltage input range of 4.5V to 27V, the Ratel Pro is compatible with various FPV setups.

Specifications:

Model: Ratel PRO
Image Sensor: 1/1.8" Inch sensor
Horizontal Resolution: 1500TVL
TV System: NTSC & PAL (changeable)
IMAGE: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: 0.00001 lux
Lens: 5Mega
Color: Black
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
OSD manual: Support
DNR: 3-DNR
FOV: 125°
Language: (ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语)
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm
Wide Power Input: DC 4.5-27V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 9.5g
