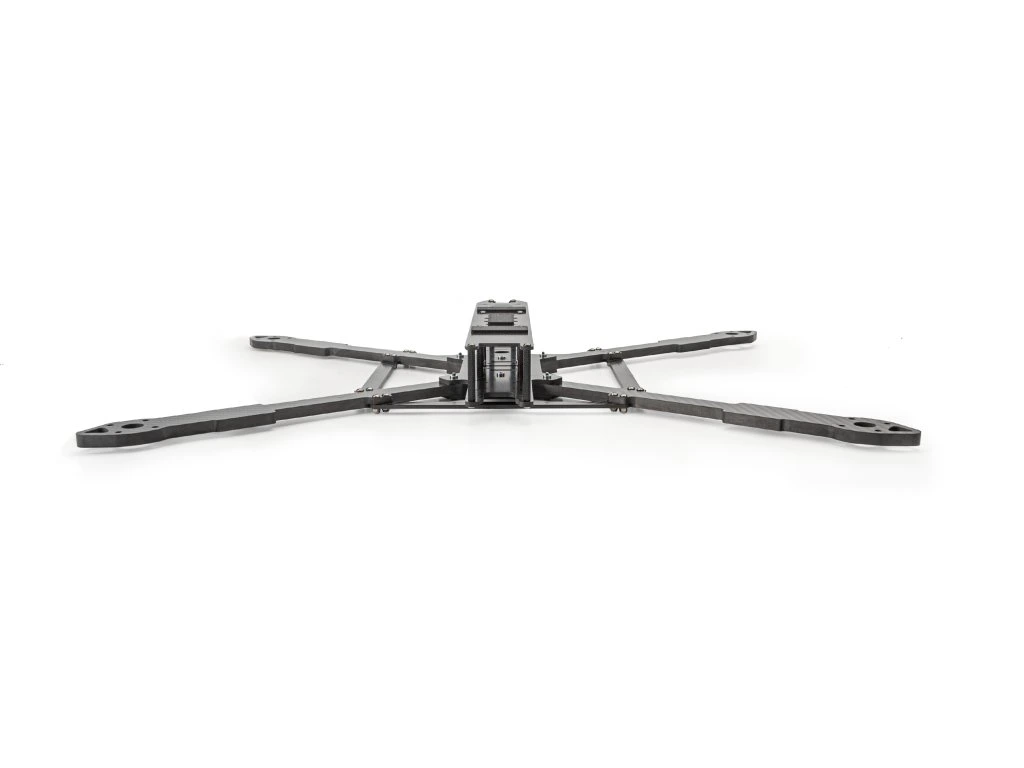

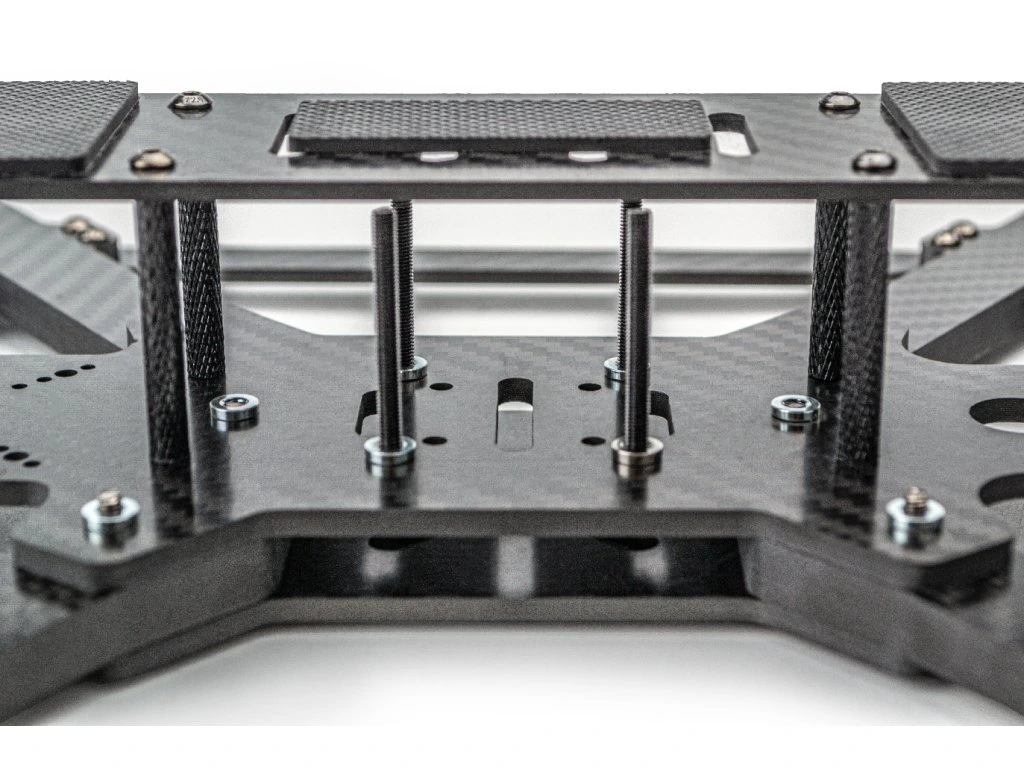

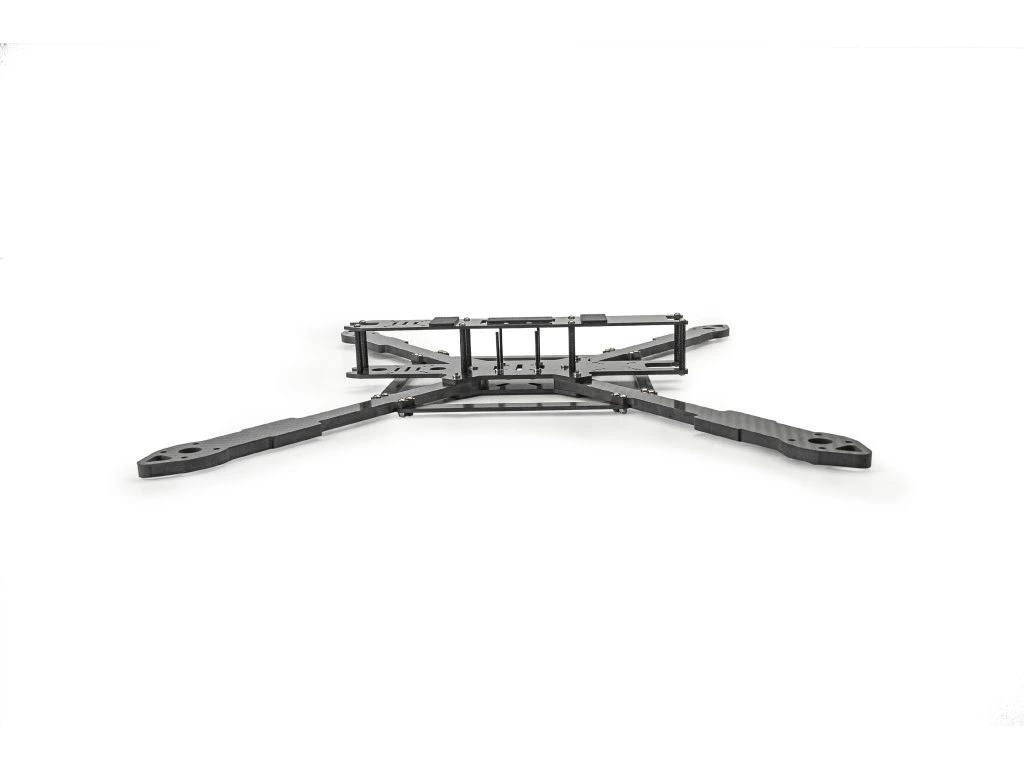

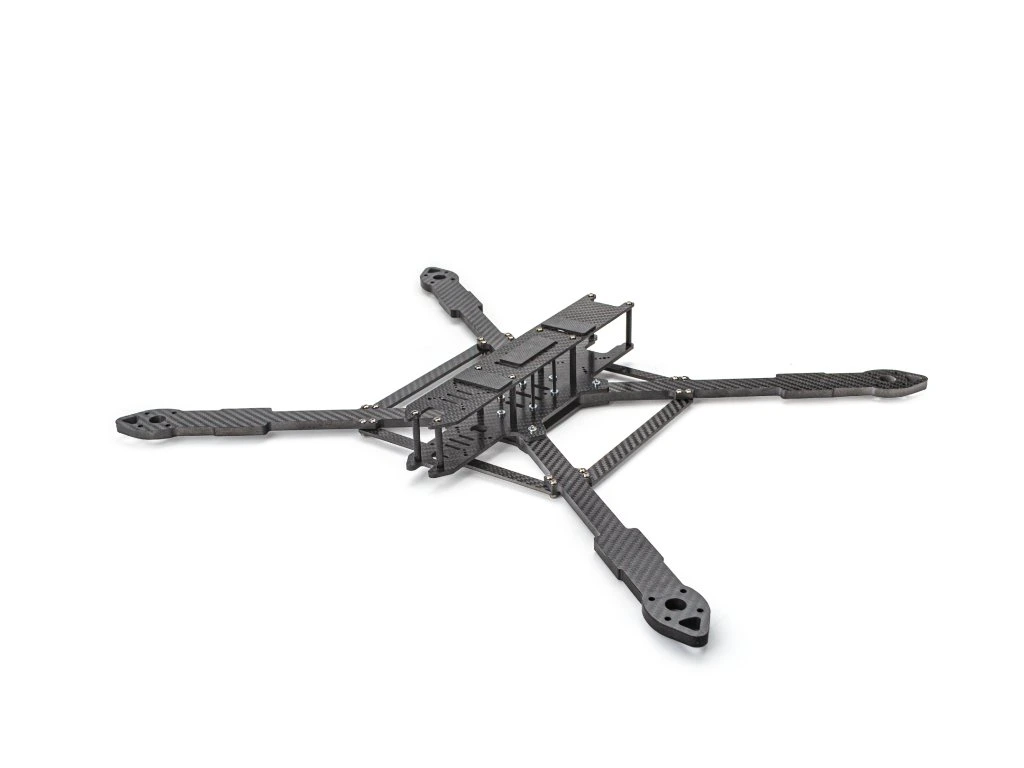

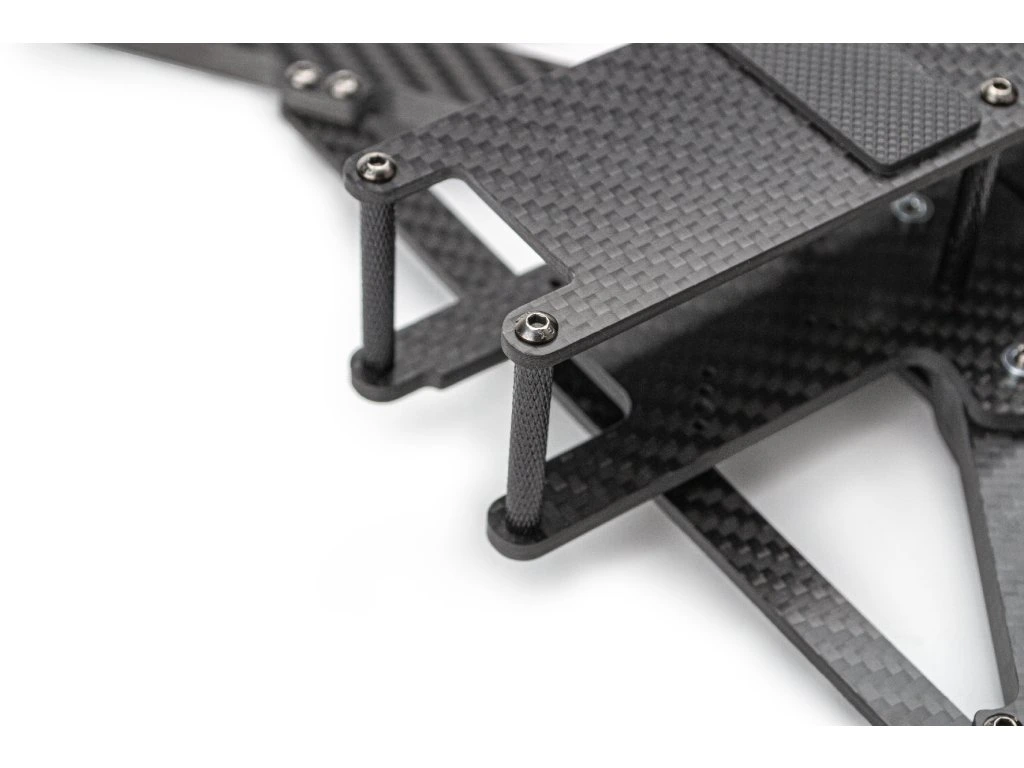

Frame Partizan Edition PT13

The PT-13 Partizan Edition Frame is a highly reliable frame kit for heavy-load missions. Its high-strength fuselage structure effectively reduces unnecessary shaking and resonance during flight.

Specifications:

Model: PT-13 Partizan Edition
Wheelbase: 575mm
Arm: 8mm
Top plate: 2.5mm
Bottom plate: 3.5mm
Dimensions: 507x403x52mm
FC mounting holes: 30.5mm
Camera mounting: 19mm
Weight: 0.6kg

Recommend Parts:
Flight Control: F405 V4 ICM42688P / F722
ESC: AM32 80A 4in1 ESC
Motor: 4214-660KV
Camera: Ratel2 Night Version/ Ratel Pro
VTX: 4.9-6.2Ghz 3W
Receiver: ELRS 915Mhz Diversity
Antenna: RHCP SMA 160mm
Propeller: 1309-3 blades
Battery: 6S 30000mah Semi Solid Battery

Package Includes:
1x Frame Partizan Edition PT-13
1x Aluminum column kit
1x Screws kit
1x Nuts kit
1x Prints kit
1x PT Battery pad
2x Battery strap
