Stack Pilotix F405 V3 3080 80A AM32

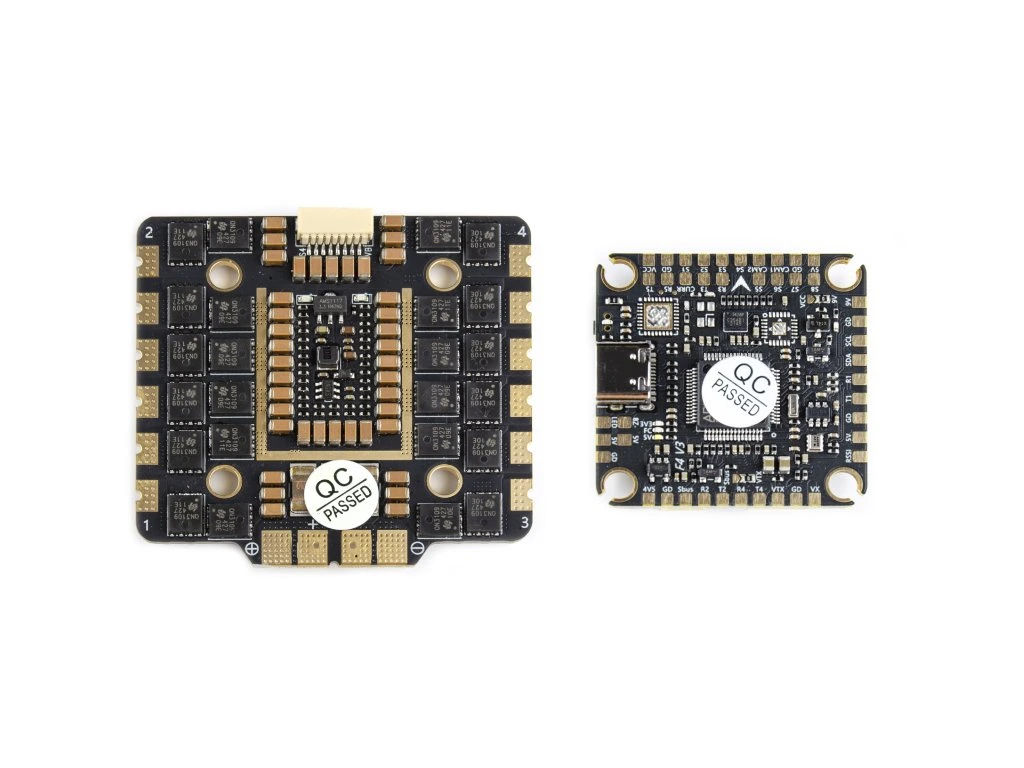

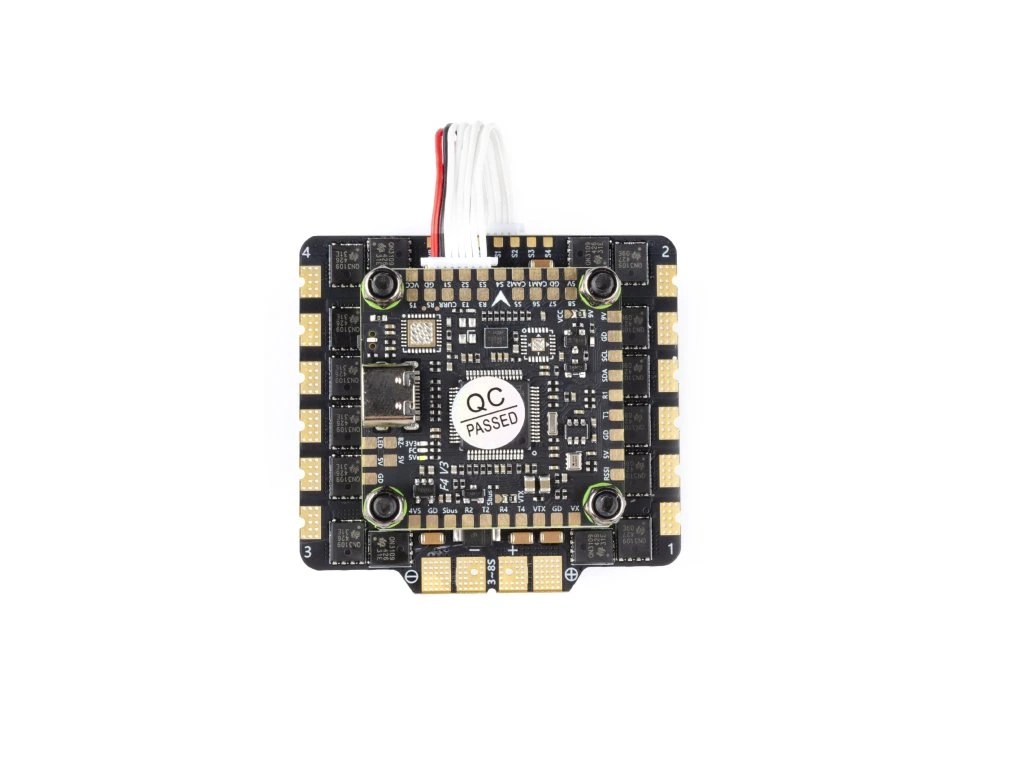

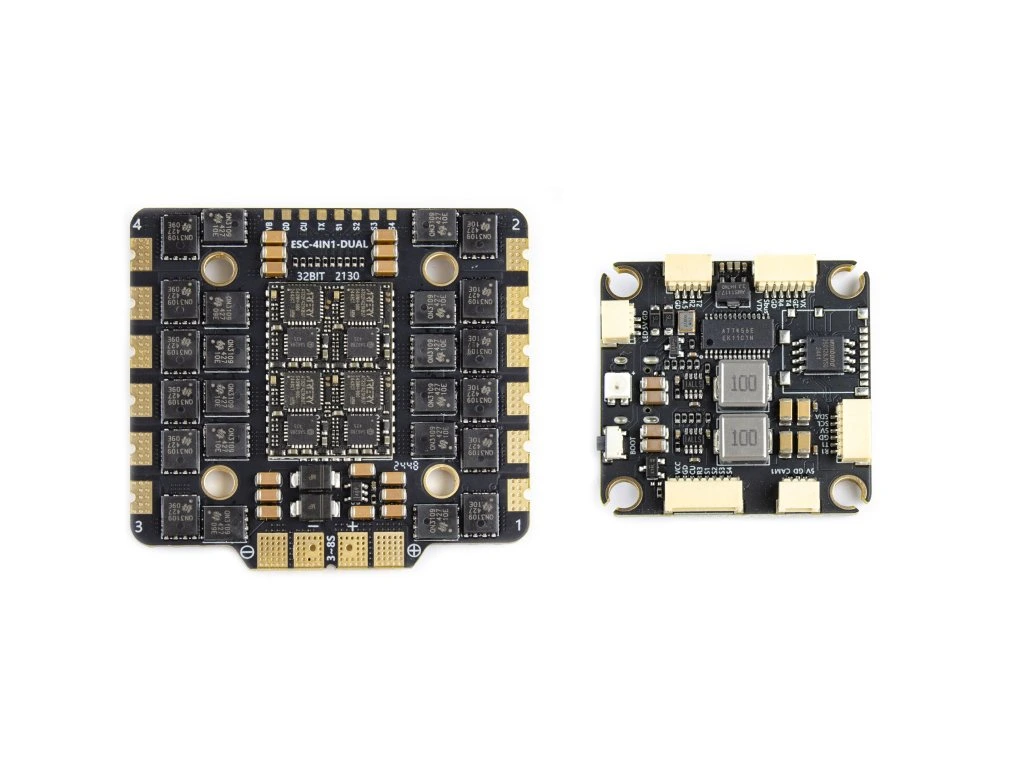

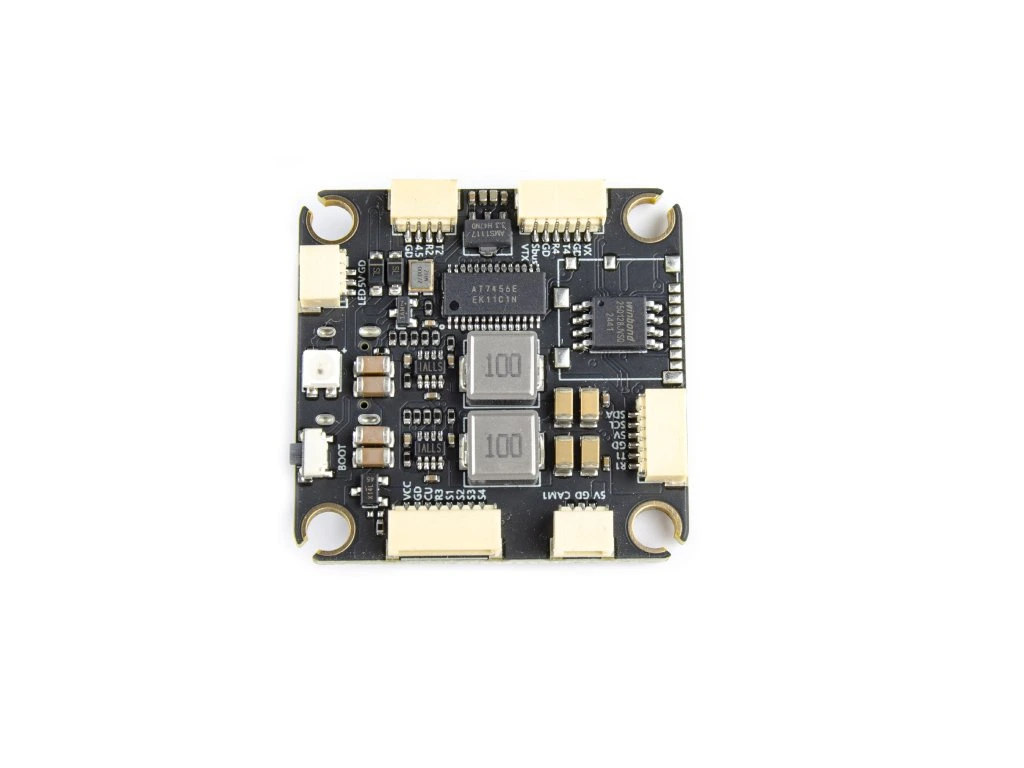

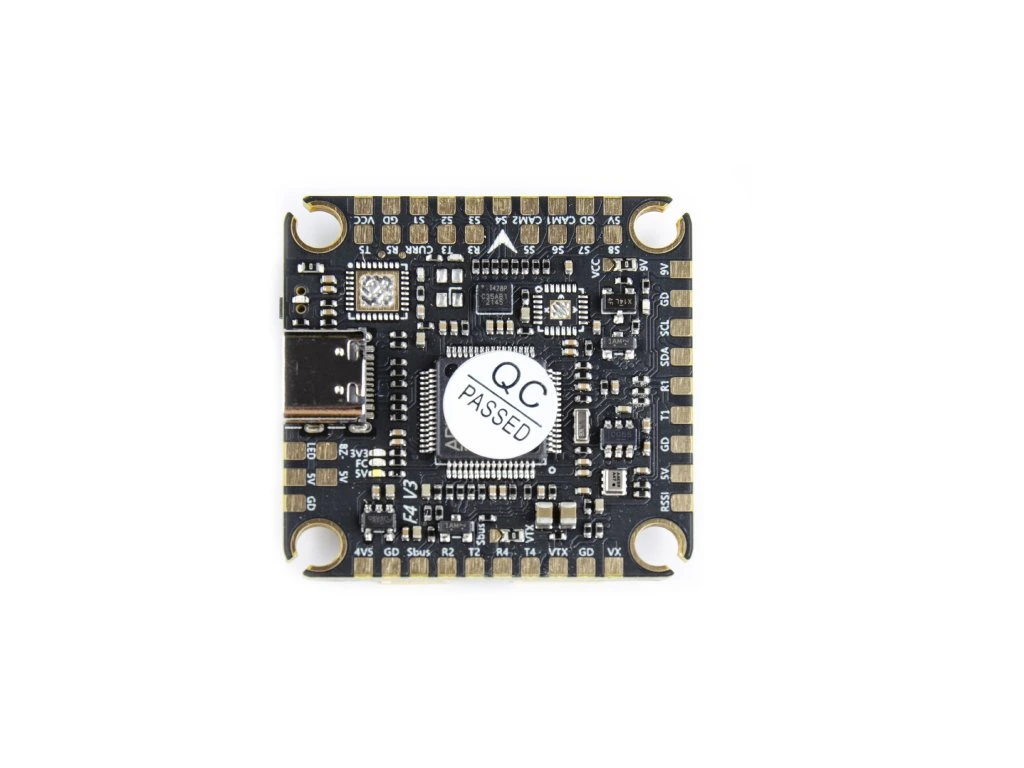

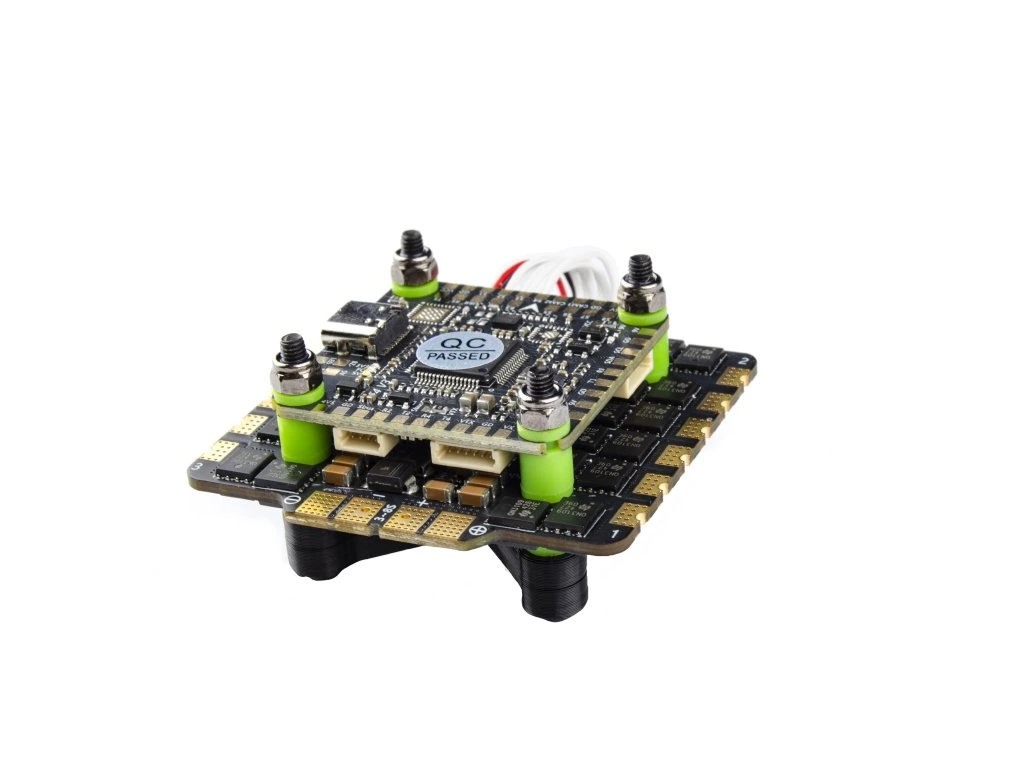

The Pilotix 6288 Stack (F405 V3 Flight Controller + 80A ESC) is a high-performance flight control and power management system designed for demanding drone applications. Featuring the STM32F405 processor and ICM42688 gyroscope, this stack provides precise control, fast response, and advanced stabilization.

Specifications:

- Processor: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06B
- Black Box Storage: 16MB
- Motor Output: 8 Channels
- Universal Serial Ports: 5 Channels
- Output Power Supply: 5V/2.5A, 9V/2A
- OSD: Supported
- Weight: 9.6g
- External Dimensions: 36mm x 36mm
- Mounting Hole Spacing: 30.5mm x 30.5mm
- Firmware: PILOTIX F405V3

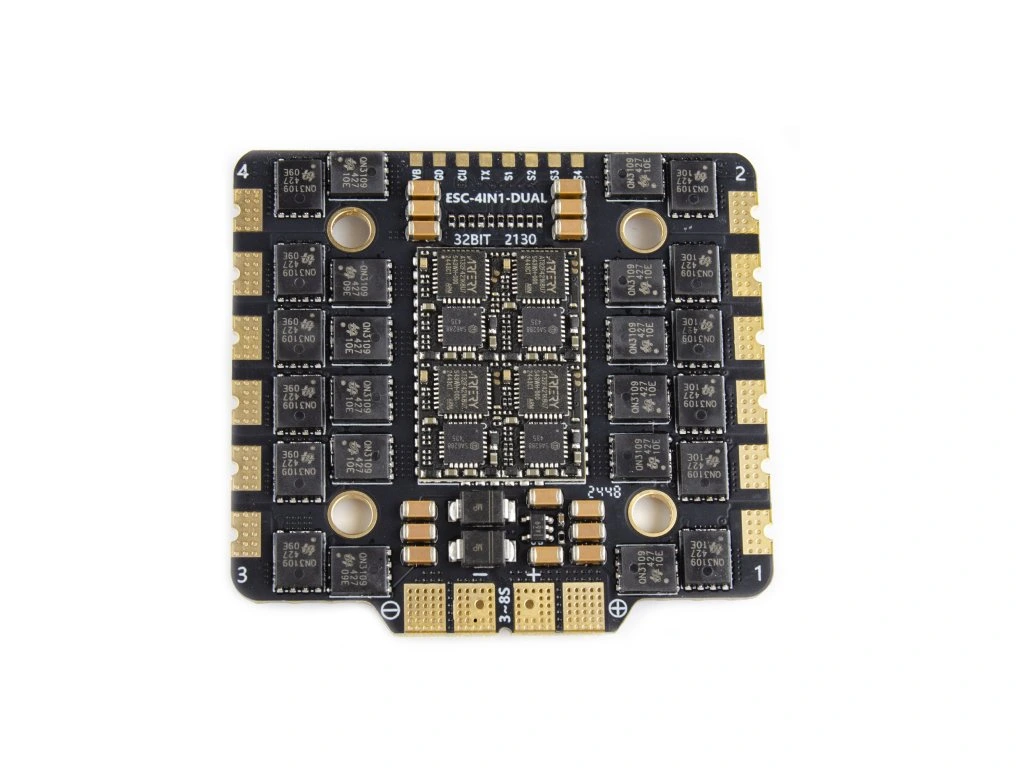

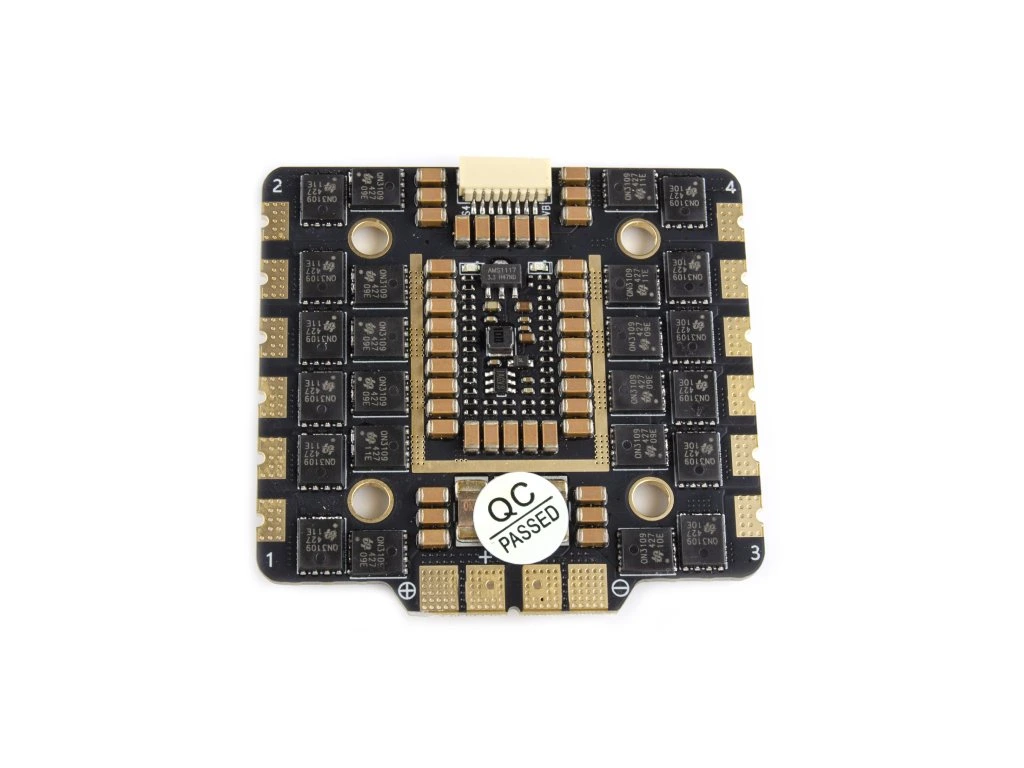

- Continuous Current: 80A
- Burst Peak Current: 100A
- Input Signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
- Telemetry: Supported
- Current Meter: Supported
- Input Voltage: 3-8S LiPo
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Operating Temperature: -20°C to +55°C
- Operating Humidity: 20% - 95%
- Storage Temperature: -20°C to +70°C
- Mounting Hole: M3, 30.5mm x 30.5mm
- Weight: 33g
- Dimensions: 55mm x 52mm
