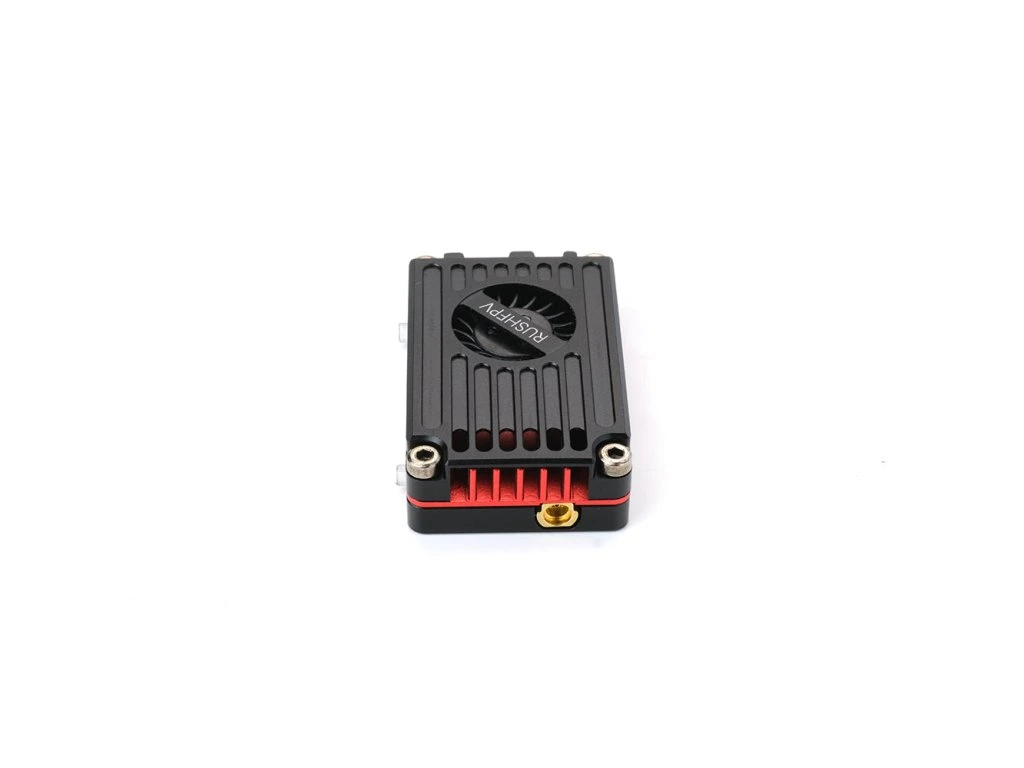

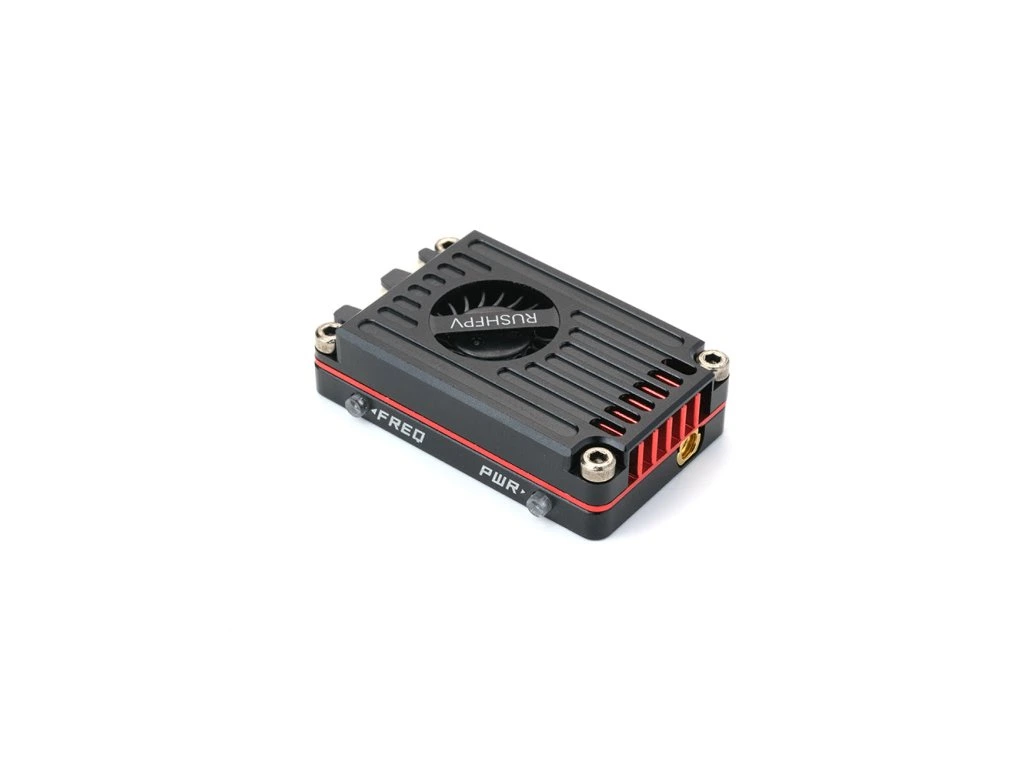

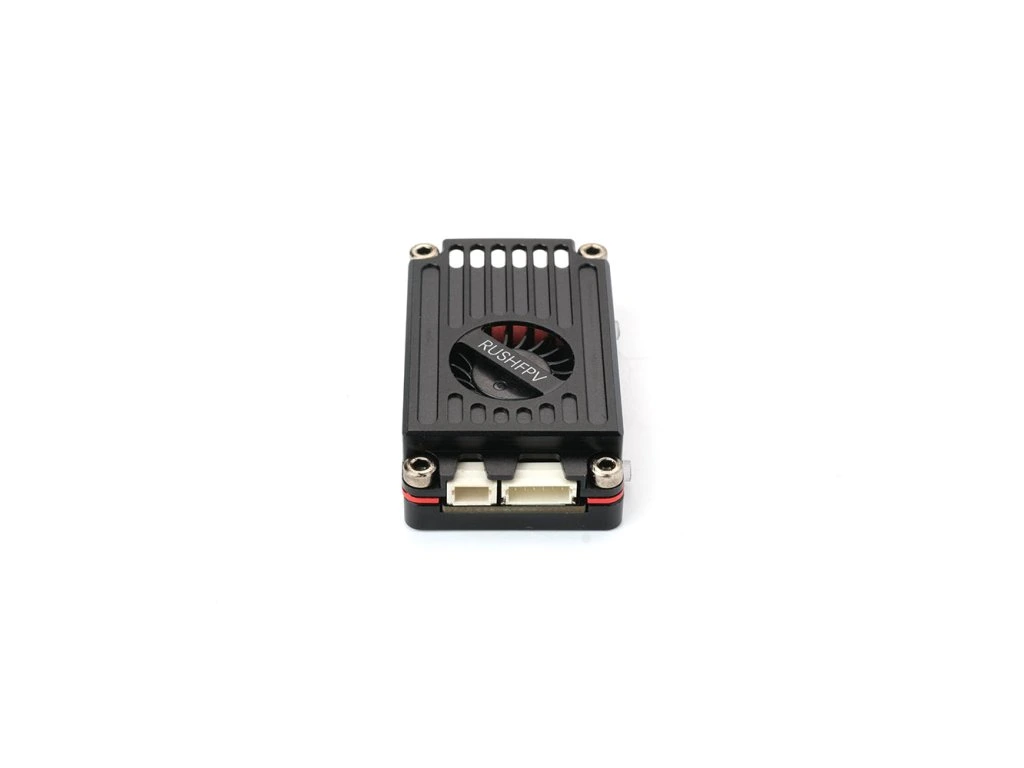

VTX Rush Max Solo 5.8G 2.5W

The RushFPV VTX Rush Max Solo 5.8G 2.5W is a powerful video transmitter for FPV drones. With 2.5W output, it ensures a strong signal and reliable performance. Perfect for racing and long-range flights.

Features:

- Developed for extremely long-range pilots, the compact and efficient active cooling design unleashes the full performance of the VTX.
- LOCK-ON technology with jitter-free transmit channels and no sweep interference for multi-pilot flights.
- Factory power consistency calibration for all channels
- Low noise DC-DC power supply design for clean screens.

Specifications:

Model: FPV RACING MAX SOLO 5.8GHz VTX
Channel: 48CH
Power Level: PIT-25mW-500mW-1000mW-MAX*
Input: DC 7-36V (6S LiPo)
Video IN: CVBS PAL/NTSC
Antenna Connector: MMCX 500
Size: 40x24x10.5mm
Output: DC 5V (Max 500mA)
Audio IN: 6.5M MONO
External Control: Smart Audio
Weight: 15g

*MAX Power level can provide 2500mW(34dbm) or more power depending on the environment's ability to dissipate heat.

Package Includes:
1x Rush FPV Max Solo 5.8GHz VTX
1x 90° MMCX Dipole Antenna
1x MMCX to SMA Pigtail
