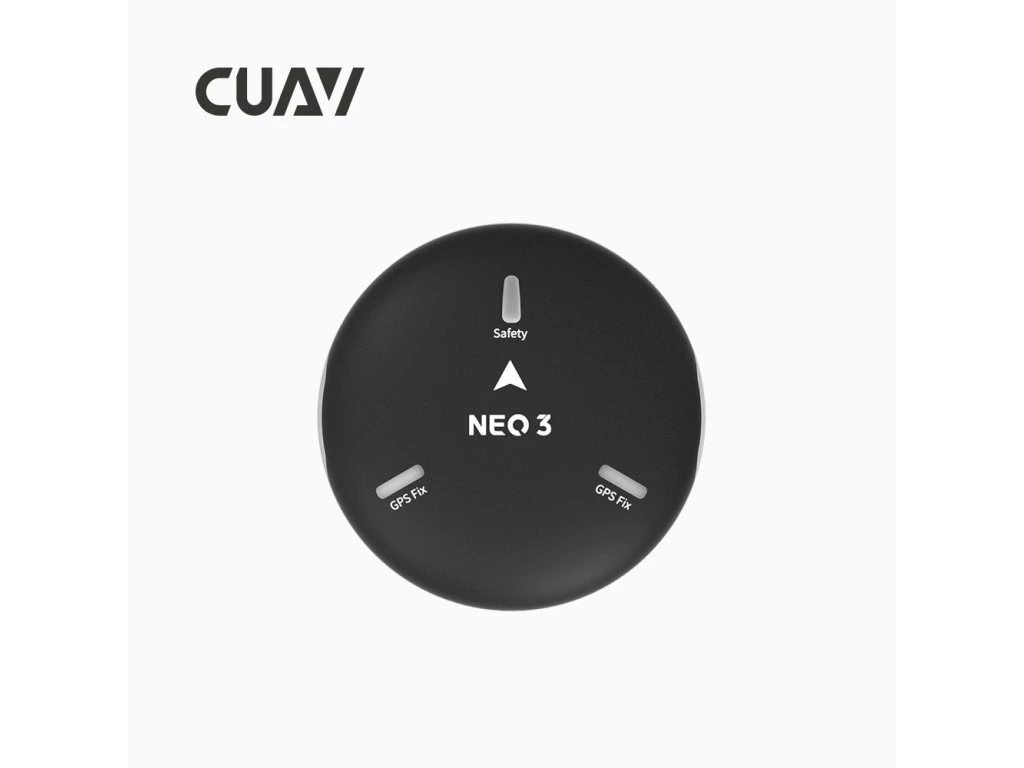

GPS module CUAV NEO 3
Specifications
Model Number: CUAV-NEO3
Brand Name: Feetech
Processor: STM32F412
Sensors:
Compass: IST8310
Barometer: MS5611
RTK Receiver: Ublox M9N
GNSS Ranges:
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Number of Simultaneous GNSS: 4 (Simultaneous satellite information reception)
Maximum Number of Satellites: Up to 32
RTK Update Rate: Up to 25 Hz
Position Accuracy: Up to 1.5 meters
Cold Start: 24 seconds
Assisted Start: 2 seconds
Reacquisition: 2 seconds
Tracking and Navigation Sensitivity: -167 dBm
Cold Start Sensitivity: -148 dBm
Reacquisition Sensitivity: -160 dBm
Protocol: UART+I2C+IO
Interface Type: GHR-10V-S
Input Voltage: 5V
Operating Temperature: -10~70°C
Dimensions: 60x60x16 mm
Weight: 33g
| Brand | CUAV |
