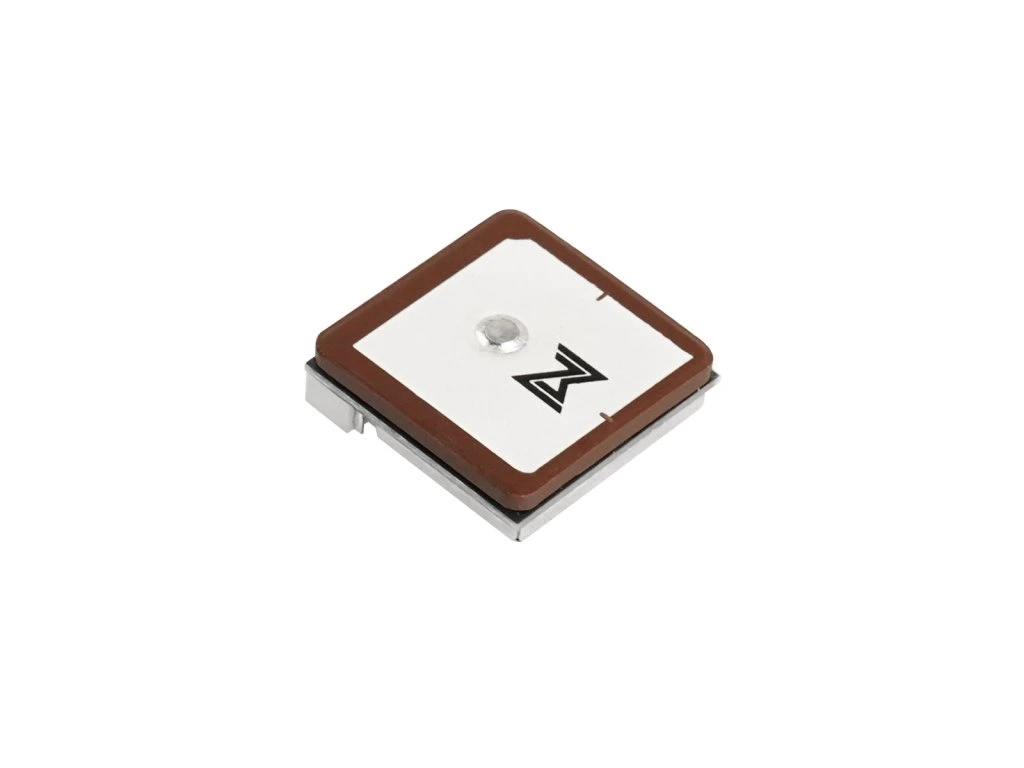

GPS Module Walksnail WS-M181
Note:
Because the GPS chip is a new 10th-generation chip, the flight controller needs to flash firmware Betaflight 4.3.0 and above, and the firmware below 4.29 uses the NMEA protocol.
Specification:
Name: Walksnail WS-M181GPS
Chip: M10 (ten generation chip)
Frequency: GPS L1, GLONASS L1, BDSB1, GALILEO E1, SBAS L1.QZSS L1
Power: 5V
Size: 18x18x4.6mm
Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels: 72 search channels
Compass: IST8310
Baud rate: 115200dps
Output protocol: NMEA UBLOX (dual protocol)
Output frequency: 1Hz-10Hz, Default 10Hz
Speed accuracy: 0.05m/s
Horizontal positioning accuracy: 2D ACC1.5m(open air)
Receiving sensitivity: Trace-162dBm; Capture -160dBm
Dynamic characteristics:
Altitude: 50000m
Speed: 500m/s
Acceleration: 4G
Operating temperature: -40°C -+ 85°C
Storage temperature: -40°C -+ 105°C
| Brand | Walksnail |
