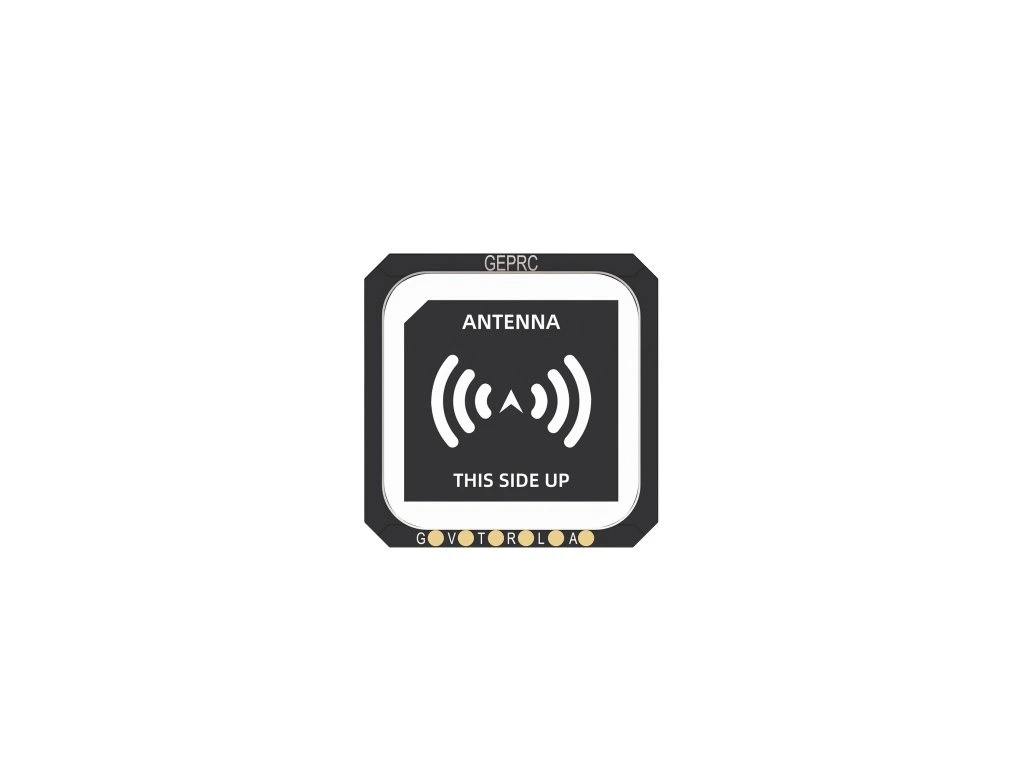

GPS Module GEPRC GEP-M1025 Series
Specifications:
Input Voltage: 3.3V–5V
Receiving Frequency: GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, QZSS L1
Operating Mode: GPS+BDS+Galileo+QZSS+SBAS joint positioning
Channel: 72ch
Navigation Satellites: Up to 32
Output Protocol: UART(ublox), I2C (Baro, Mag)
Baud Rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m (Weather)
Timing Accuracy: 30 ms
Receiver Sensitivity: Trace -162dBm, Capture -160dBm
Dynamic Characteristics: Max Height 50000m, Max Speed 500m/s
Maximum Acceleration: 4G
Size: 29x29x8.5mm
Weight: 13g
